Speaker Connections
Connecting a Power Amplier
You can connect a power amplier to the unit and use the unit as a pre-amplier.
Use an analog audio cable or XLR balanced cable for connection.
• Also make sure you read the instruction manual supplied with the connected
power amplier.
• For details on how to connect the speakers and the power amplier, refer to
the instruction manual of the power amplier.
Setup
• Set "Speaker" - "Conguration" - "Speaker Channels" ( →p134) according to
the number of channels of the connected speakers.

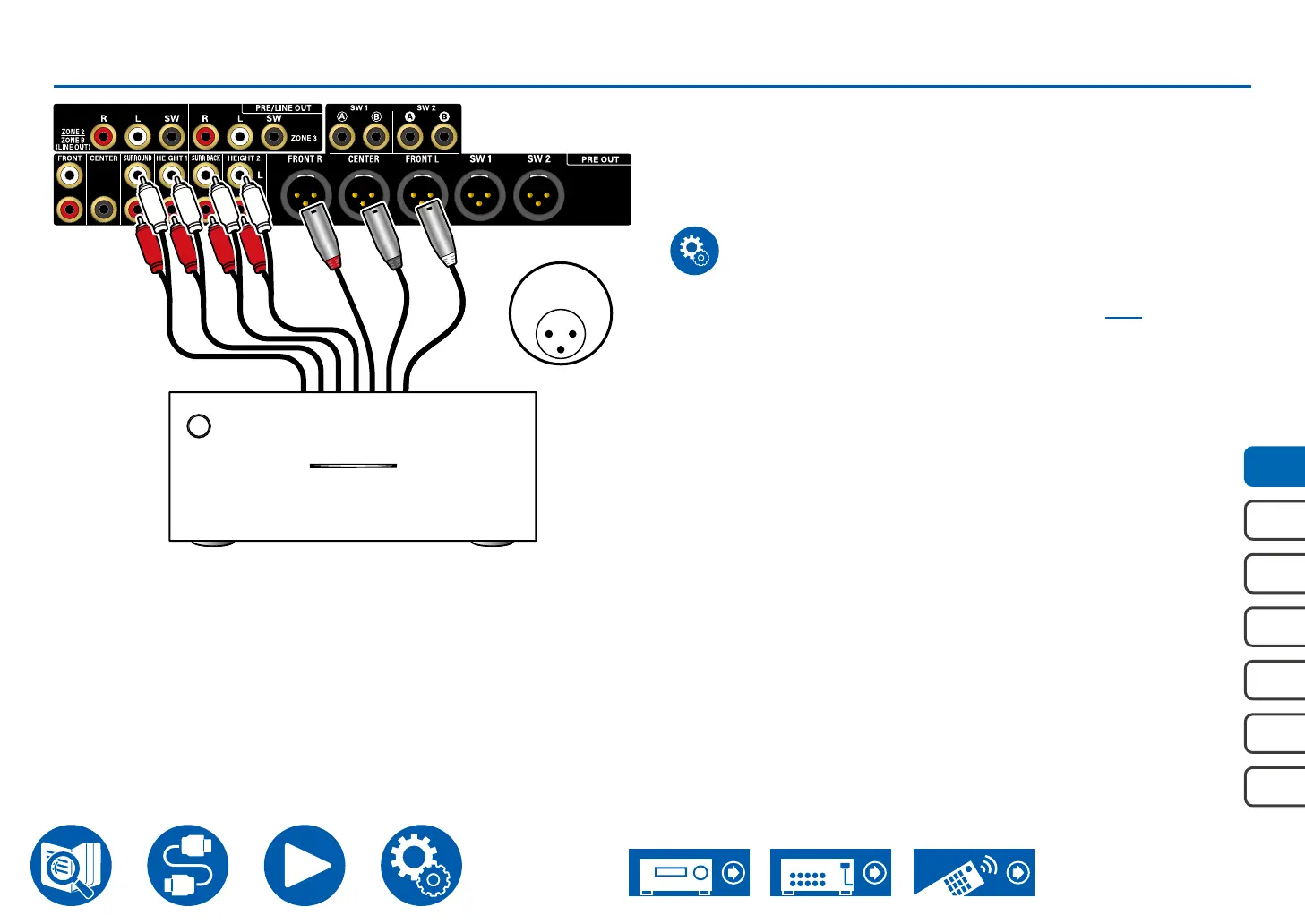

a Analog audio cable, b XLR balanced cable
a b
33
11
22
1 GND 2 HOT
3 COLD
1 GND 2 HOT
3 COLD
Power amplier

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
