Connections
Connecting Playback Devices
Connections to BD/DVD and GAME with HDMI jacks
a
Be sure to insert the HDMI
cable all the way in.

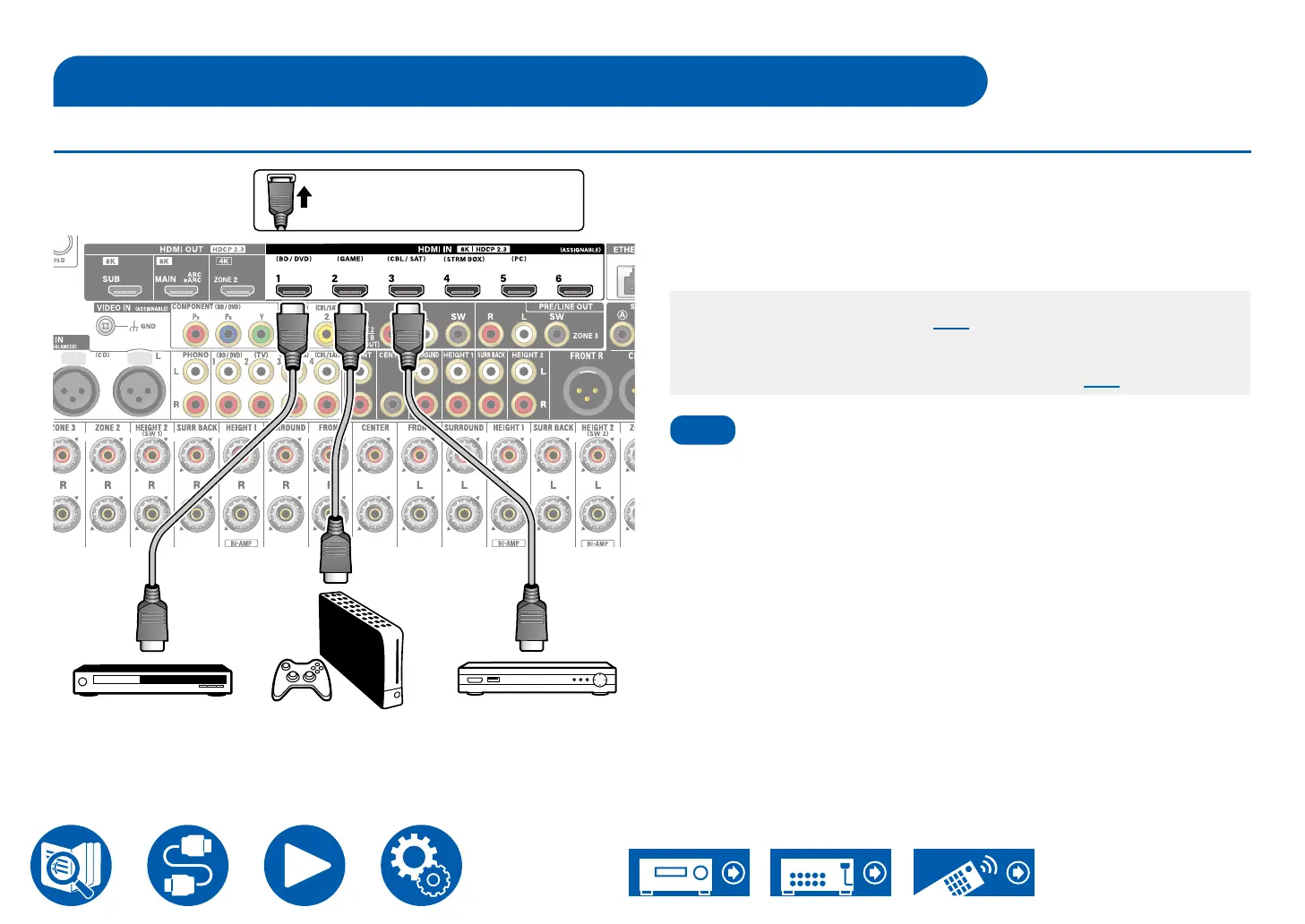

This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through
function that can transmit video and audio signals of the AV component to the
TV even if this unit is in standby mode.
• Settings are required when 8K high-quality video is to be played. Refer to
"HDMI 4K/8K Signal Format" ( →p130) for information on the settings.
Also, use an HDMI cable that supports 8K video.
• The corresponding resolution is di󰀨erent depending on the HDMI jack
connected. See "Corresponding input resolutions" ( →p213) for details.
Note
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*) The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking
with a CEC-compliant player, switching audio output between TV and this unit
or adjusting the volume using the remote controller of a CEC-compliant TV,
and automatically switching this unit to standby when the TV is turned o󰀨.
BD/DVD GAME
Cable/Satellite
set-top box
a HDMI cable
