Speaker Connections

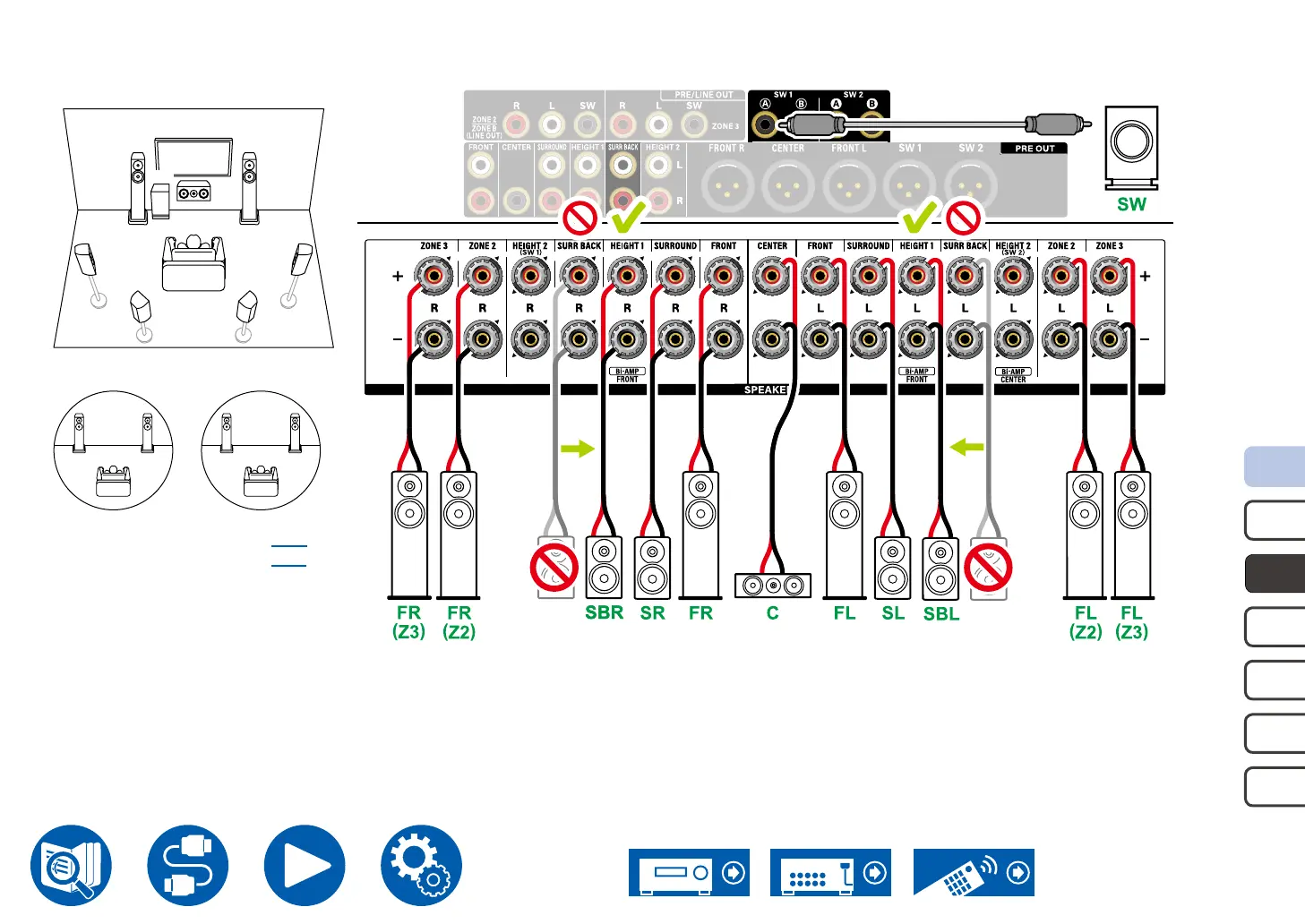

 7.1 Channel System + ZONE SPEAKER (ZONE 2/ZONE 3)
FL FR
SL SR
SBL SBR
C
SW
MAIN ROOM
– Playing Back (ZONE 2) ( →p108)
– Playing Back (ZONE 3) ( →p110)
FL(Z3)FR(Z3)
ZONE 2
FL(Z2)FR(Z2)
ZONE 3
• Surround back speakers need to be connected to the HEIGHT 1 jacks.
