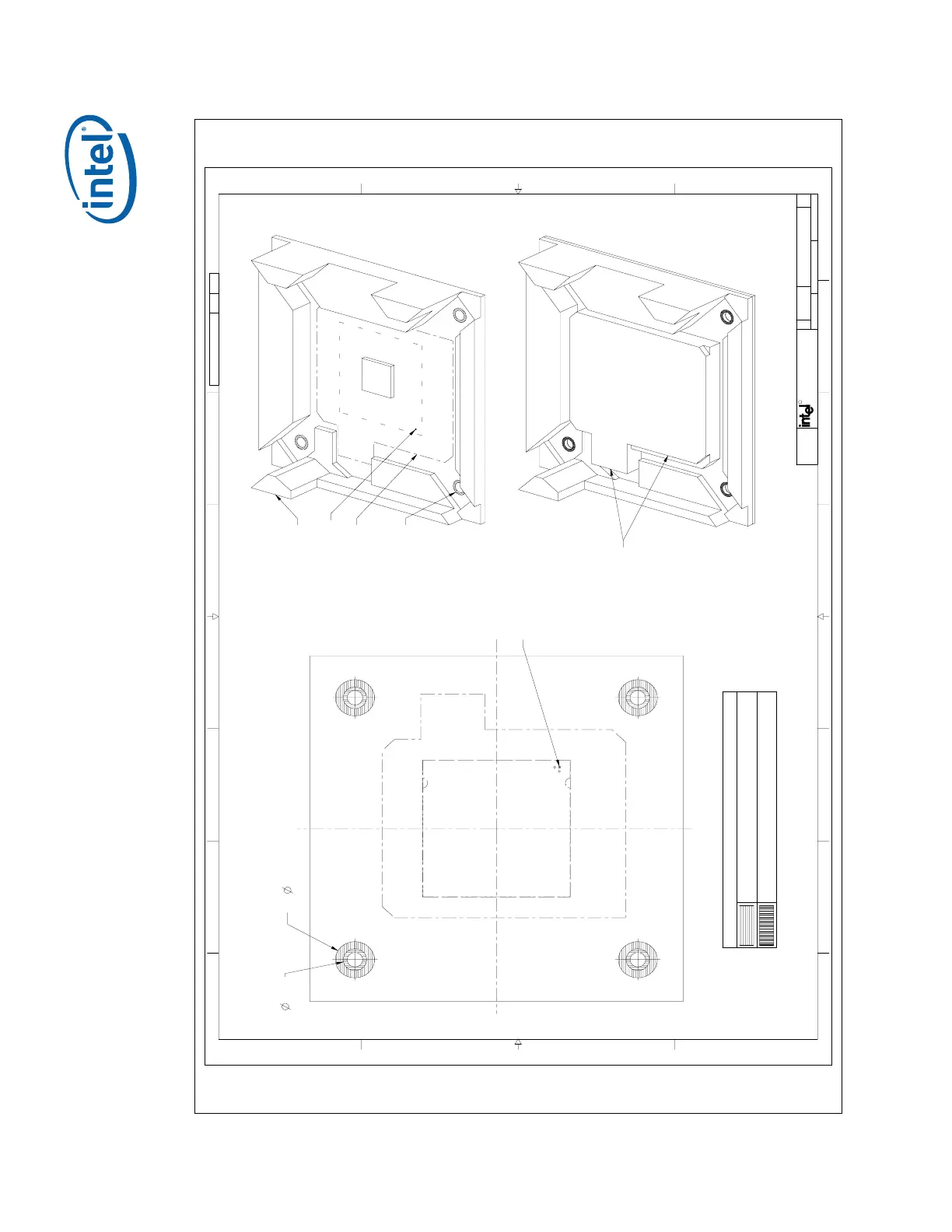

Mechanical Drawings Thermal and Mechanical Design Guidelines 115 Figure 67. ATX/µATX Motherboard Keep-out Footprint Definition and Height Restrictions for Enabling Components - Sheet 2
13
4
5678
B C D
A
12345678
B C D
A
THIS DRAWING CONTAINS INTEL CORPORAT ION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONT ENTS MAY NOT BE DISCLOSED, REPRODUCED, DI SPLAYED OR MODIFIED, WITHOUT THE PRI OR WRITTEN CONSENT OF INTEL CORPORAT ION.
4X 6.00
4X 10.00
LEGEND
COMPONENT KEEP-OUT ROUTING KEEP-OUT
SHEET 2 OF 3
DO NOT SCALE DRAWING
SCALE: NONE
2200 MISSION COLLEGE BLVD. P.O. BOX 58119 SANTA CLARA, CA 95052-8119
CORP.
R
TMD
3
C40819
D
REVDRAWING NUMBERCAGE CODE
SIZE
DEPARTMENT
C40819 2 3
DWG. NO SHT. REV
SOCKET BALL 1
COMPONENT VOLUMETRIC
KEEP-INS
ROUTING KEEP-OUTS
SOCKET
& PROCESSOR
VOLUMETRIC KEEP-IN OUTLINE
BOARD SECONDARY SIDE
SOCKET BALL 1 (FAR SIDE)
SOCKET
& PROCESSOR
VOLUMETRIC KEEP-IN

Intel QX9770 - Core 2 Extreme Quad-Core Processor Specifications

General

Processor Number	QX9770
Number of Cores	4
Thread Count	4
Clock Speed	3.2 GHz
L2 Cache	12 MB
Bus Speed	1600 MHz
Thermal Design Power (TDP)	136 W
Socket	LGA 775
Manufacturing Process	45 nm
Max Operating Temperature	64.5°C
Virtualization Technology	Yes
64-bit Support	Yes
Instruction Set	SSE4.1
Memory Channels	2
Memory Types	DDR3
