Mechanical Drawings
116 Thermal and Mechanical Design Guidelines

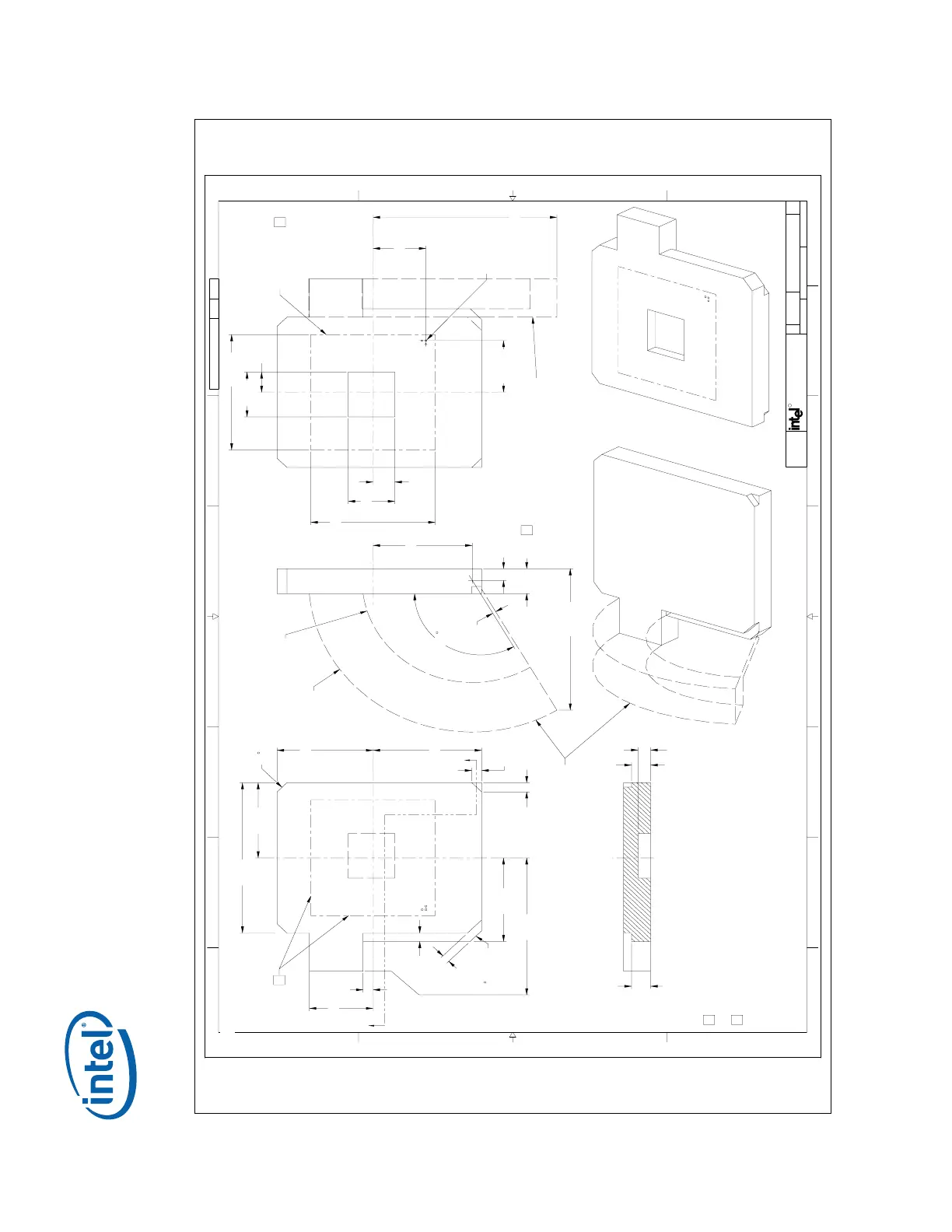

Figure 68. ATX/µATX Motherboard Keep-out Footprint Definition and Height Restrictions for Enabling Components - Sheet 3
13
4
5678
B
C
D
A
123
4
5678
B
C
D
A
THIS DRAWING CONTAINS INTEL CORPORAT ION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONT ENTS
MAY NOT BE DISCLOSED, REPRODUCED, DI SPLAYED OR MODIFIED, WITHOUT THE PRI OR WRITTEN CONSENT OF INTEL CORPORAT ION.
A
A
5.80
5.80
3.00
2.75
3.80
30.00
R49.44
R33.29
28.15
27.25
3.00
19.25
37.00
29.00
32.85
24.50
49.00
2X
45 X 3.00
45 X 3.50
2.50
3.00
14.10
14.60
6.60
6.60
3.80
120.0
1.00
()37.60
()37.60
()16.87
()16.00
()46.11
()55.58
SHEET 3 OF 3
DO NOT SCALE DRAWING
SCALE: NONE
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
CORP.
R
TMD
3
C40819
D
REVDRAWING NUMBERCAGE CODE
SIZE
DEPARTMENT
C40819 3 3
DWG. NO SHT. REV
LEVER MOTION SPACE
REQUIRED TO RELEASE
SOCKET LOAD PLATE
NOTES:
1 SOCKET CENTER PLANES ARE REFERENCED FROM GEOMETRIC
CENTER OF SOCKET HOUSING CAVITY FOR CPU PACKAGE (ALIGNES
WITH DATUM REFERENCE GIVEN FOR BOARD COMPONENT KEEP-INS).
2 SOCKET KEEP-IN VOLUME VERTICAL HEIGHT ESTABLISHES LIMIT OF SOCKET
AND CPU PACKAGE ASSEMBLY IN THE SOCKET LOCKED DOWN POSITION.
IT ENCOMPASSES SOCKET AND CPU PACKAGE DIMENSIONAL TOLERANCES
AND DEFLECTION / SHAPE CHANGES DUE TO DSL LOAD.
3. SOCKET KEEP-IN VOLUME ENCOMPASS THE SOCKET NOMINAL VOLUME
AND ALLOWANCES FOR SIZE TOLERANCES. THERMAL/MECHANICAL COMPONENT
DEVELOPERS SHALL DESIGN TO THE OUTSIDE OF SOCKET KEEP IN VOLUME WITH
CLEARANCE MARGINS. SOCKET DEVELOPERS SHALL DESIGN TO THE INSIDE VOLUME.
SOCKET
& PROCESSOR VOLUMETRIC KEEP-IN
TOP SIDE VIEW
BOTTOM SIDE VIEW
1
SOCKET HOUSING 1
CAVITY (CPU PACKAGE)
SOCKET BALL 1
LEVER MOTION SPACE
REQUIRED TO RELEASE
SOCKET LOAD PLACE
(FARSIDE)
SECTION
A-A
