Installations and Upgrades
49
5. Position the heat sink above the processor
6. Aligning the raised metal surfaces, place the heat sink on top of the processor.
OM14134

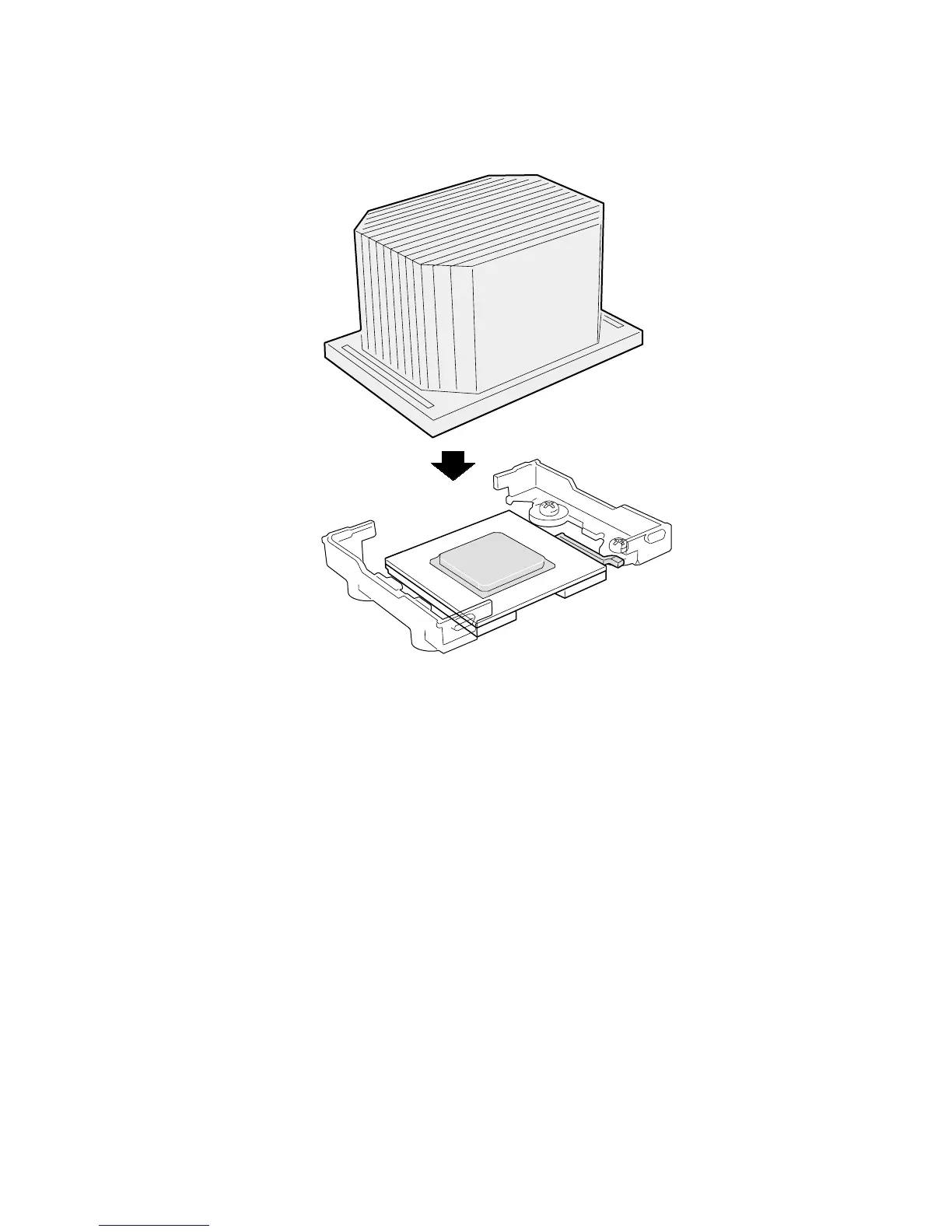

Figure 22. Installing the Heat Sink
