1. Technical Specications
1.1. Terminal signage
Manufacturer’s proprietary digital signage, type 2B+D, therefore, this terminal can only be installed in a digital extension
of the Impacta exchange.
1.2. Modules signage
Manufacturer’s proprietary signage.
1.3. Maximum distance for installation
The maximum electrical resistance allowed in the conductor to be used in the terminal’ s installation cannot exceed 22

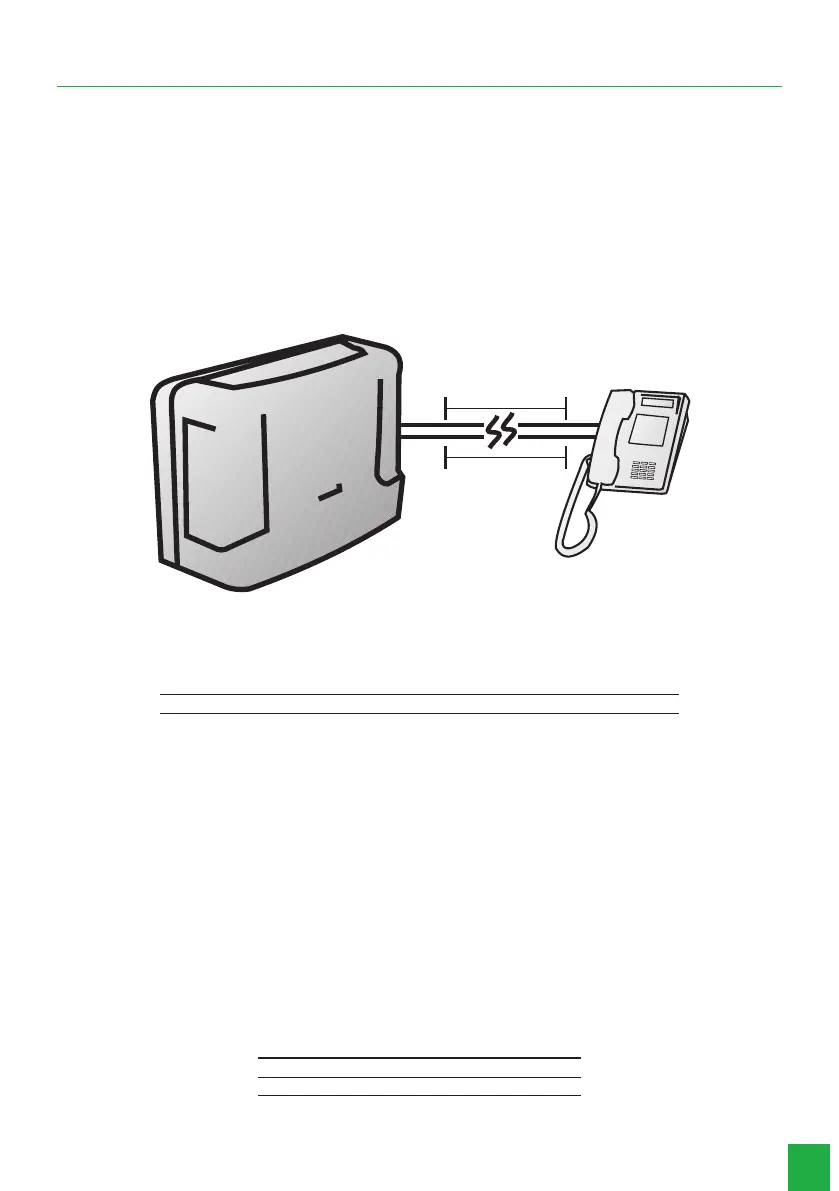

ohms in each way of the conductor pair, as shown in the following illustration:
Ω
Ω
22 ohms
22 ohms
Maximum distance for installation
1.4. Conductor specications
Diameter of conductor (mm) Resistance (W/km) Temperature (ºC) Max Distance. (m)
0,50 (24 AWG) 110 25 200
1.5. Number of terminals and modules that can be installed in the PABX
For each PABX, there is a maximum limit of terminals. Check this information in your PABX’s manual.
Each terminal supports up to 2 (two) key modules.
Each module added to the terminal decreases the capacity of the exchange by one terminal.
Example: the exchange has capacity for up to 8 TIs 5000 without module or 4 TIs 5000 plus 4 key modules, distributed in up to
2 modules per terminal.
1.5. Environmental conditions
Temperature 0 °C to 37 °C.
1.6. Power supply
-24 Vdc to -36 Vdc (±7%).
1.7. Dimensions
Model Height Width Depth Weight
MOD 115 125 mm 57 mm 154 mm 150 g
TI 5000 135 mm 210 mm 154 mm 710 g
1.8. Maximum power
» MOD 115: 0.744 W.
» TI 5000: 1.44 W.
