Planning Installation

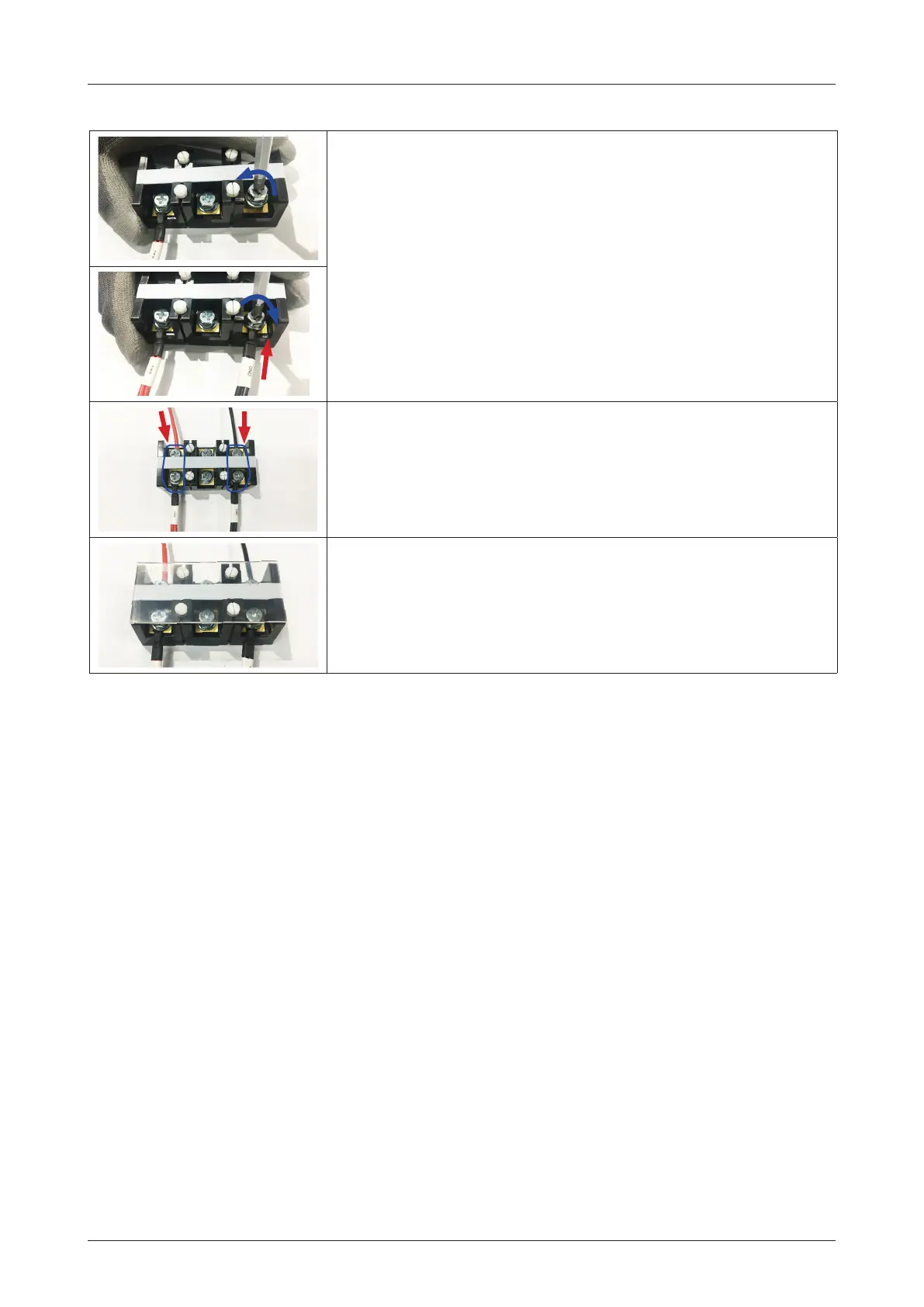

3. Unscrew the 3rd position terminal using a Phillips screwdriver. Insert
the ring connector of the Black (negative) wire to the terminal and
tighten the screw back into the terminal.
Red
(positive)
Black
(negative)
4. Connect wires for distribution to the terminals on the opposite side
of each connected wires.
CAUTION: DO NOT switch positions of the Red (positive) and Black
(negative) wires. Switching the polarity of power may damage the
product.
5. Close the top cover of the terminal block.

Intellian C700 Specifications

General

Manufacturer	Intellian
Stabilization	3-axis
Wind Survival	50 m/s
Wind Operational	30 m/s
Compatibility	Inmarsat C
Mounting	Pole
Diameter	85 cm / 33.5 in
