25
UPS Serial Cable

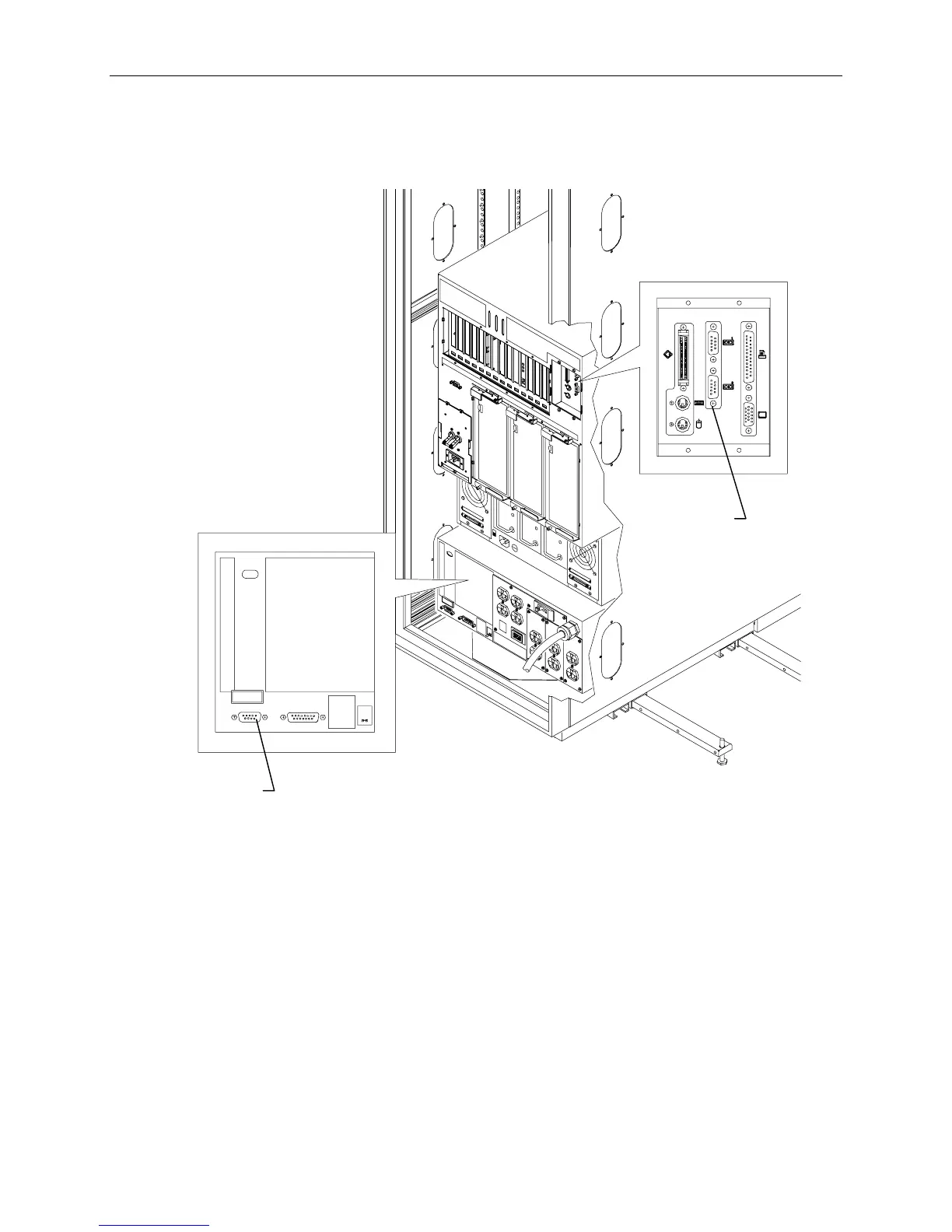

Connect the serial cable to the UPS and to the base unit as shown in the following figure.
Serial
Ports
Serial
Port
