45
Expansion Board Cables
The following table shows the type and location of standard expansion boards delivered in the
workstation base unit.
Standard Board
Slot
RAID Controller (CINF917) PCI 4
RAID Controller (CINF917) PCI 5
RealiZm Z10T (MESAM96) PCI 6 and 7
StudioZ SDI (MSMT297) PCI 3
100 base-T Fast Ethernet (CINF920) PCI 2
Professional Audio Sound Card (CINF094) PCI 1
NOTE The RAID controller in PCI slot 7 connects to the internal RAID section of the base unit. The RAID
controller in PCI slot 6 connects to the rack-mount InterRAID-8 cabinet.
NOTE If additional RAID controllers are installed, they are located in PCI slots 6 and 7. The Realizm Z10T
cards are then located in PCI slots 8 and 9.

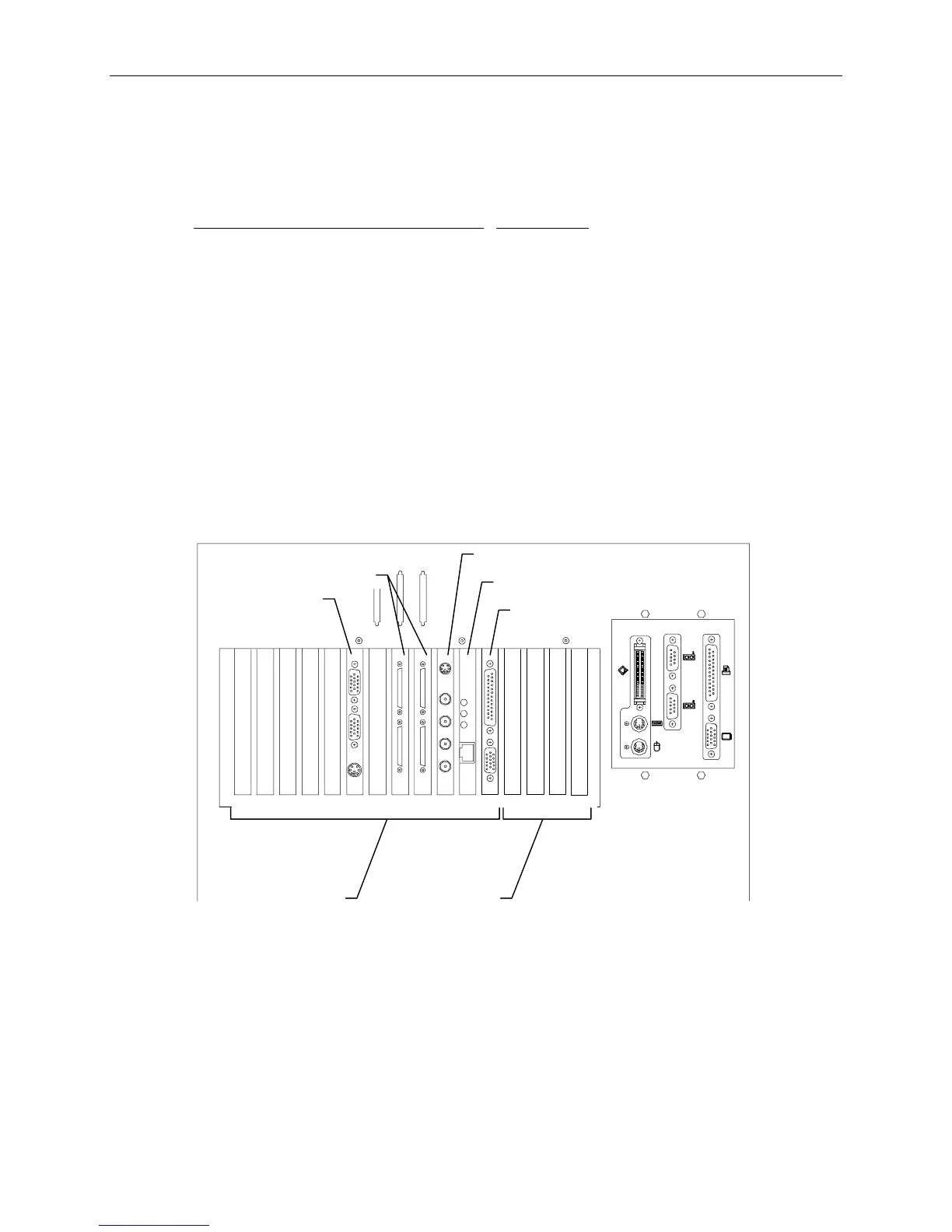

The following figure shows the slots and standard board connectors on the back of the base unit. Refer
to the documentation for each board for specific cable hookup procedures.
RealiZm Z10T
StudioZ SDI Card
12 11 10 9 8 7 6 5 4 3 2 1 1234
PCI Slots ISA Slots
Ethernet Card
RAID
Controllers
Sound Card
