Intergraph StudioZ RAX - AC Input Wiring

83
AC Input Wiring

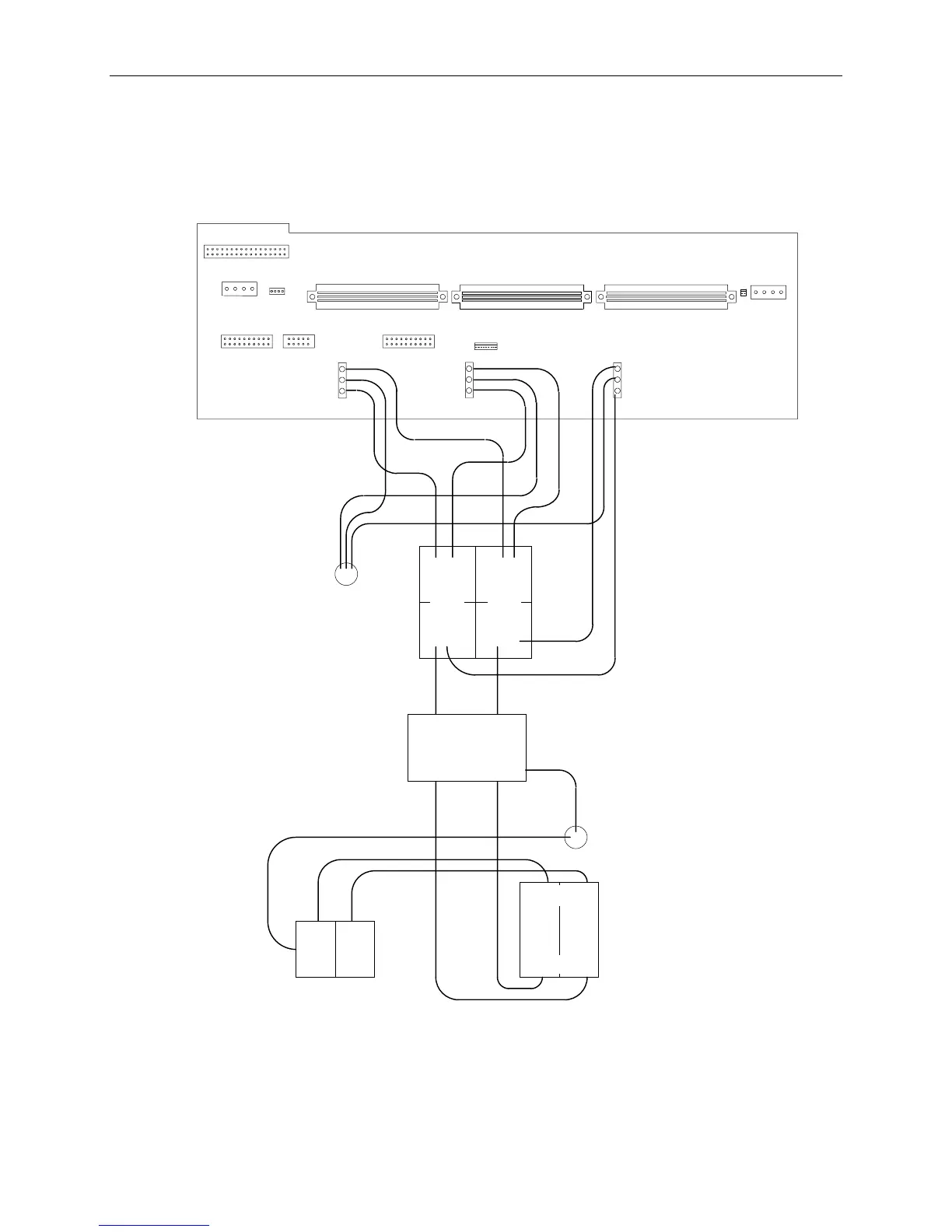

The following diagram shows the AC input wiring, from AC receptacle (MCBL088) to the power
distribution board board.
Blue
Grn/Yell
Brown
Blue
Grn/Yell
Brown
Brown Blue
Brown Blue
Blue
Grn/Yell
Brown
BLUEGRAY
Terminal Block
CCON360 (Gray)
CCON362 (Blue)
Ground Lug
CFIL070
AC LINE
FILTER
Blue Brown
MCBL133A Ground Wire
MCBL088
AC Receptacle
CCRB060 Switch
Ground Lug
BOTTOM
TOP
