Expansion Board Cables
The InterServe base unit includes the following expansion boards as standard equipment:
Standard Board
Slot
RAID Controller (CINF917) PCI 4
100 Base-T Fast Ethernet Network Adapter (CINF920) PCI 2
InterSite Server Monitor (FINF029) ISA 4

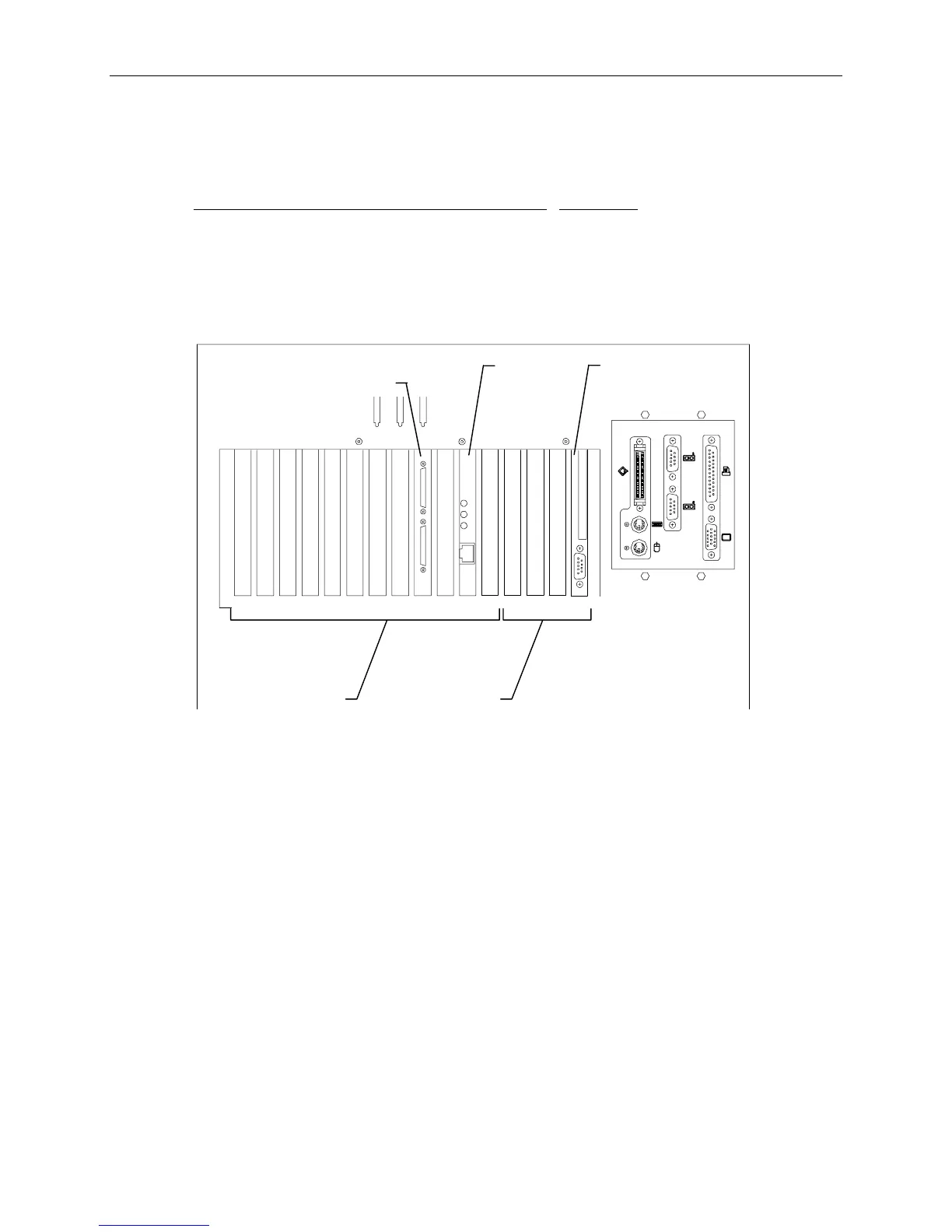

The following figure shows the slots on the back of the base unit. Connect the cables to the Ethernet
and InterSite Server Monitor card as described in the documentation for those cards.
InterSite Server
Monitor Card
12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4
PCI Slots
ISA Slots
Ethernet
Card
RAID
Controller
If additional expansion boards are installed in the system, refer to the option board documentation for
cable hookup procedures.
