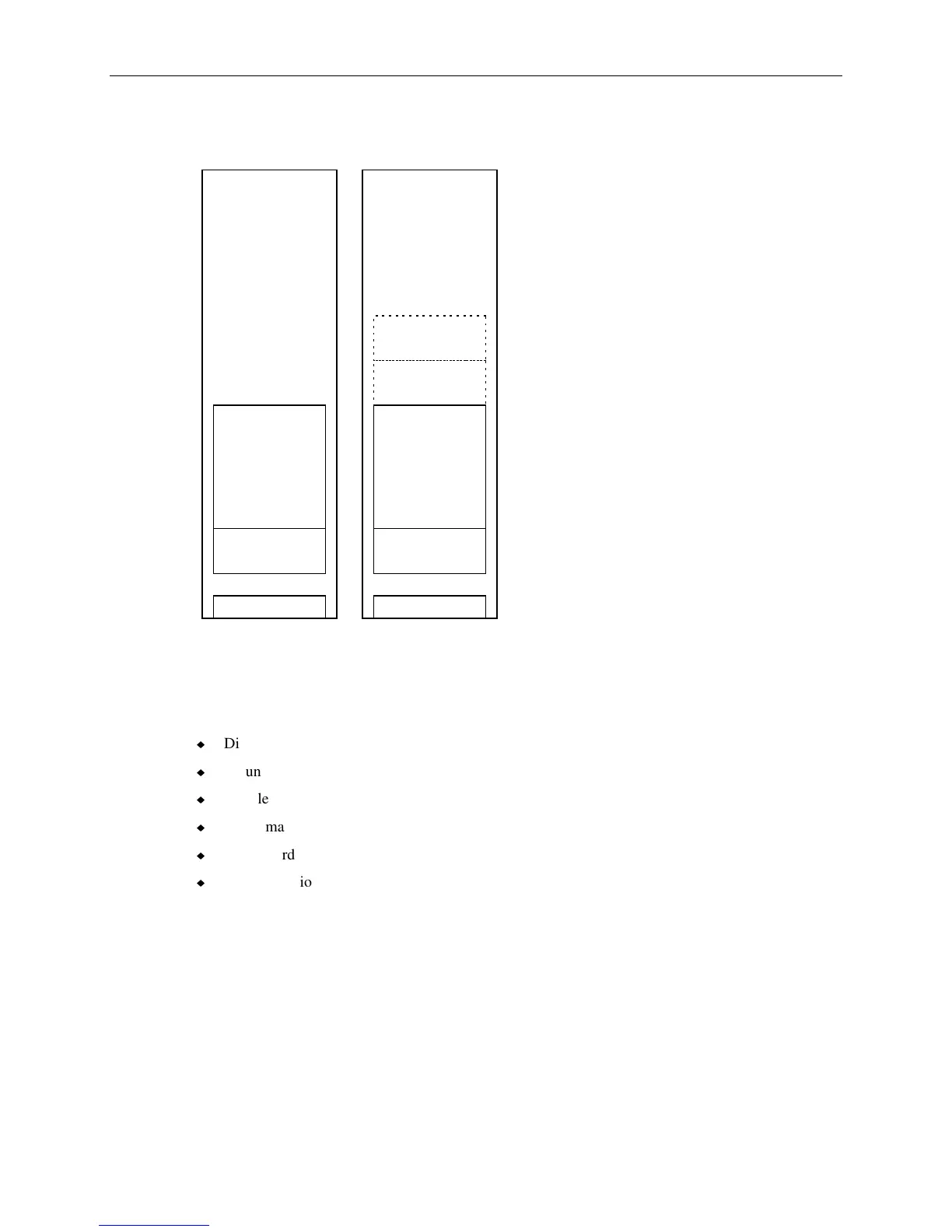

The following figure shows how the system should look fully installed. Optional InterRAID-8 cabinets
are shown by dashed lines.
InterRAID-8
InterRAID-8
InterRAID-8
AC Dist Box
StudioZ RAX
InterRAID-8
AC Dist Box
StudioZ RAX
InterRAID-8 Cabinet
Unpack the InterRAID-8 from the carton and verify you have the following items.
u Disk array cabinet
u Mounting hardware
u Handle brackets and screws
u Tinnerman nuts and screws
u Power cord
u Documentation
The mounting hardware includes two rails to be mounted inside the rack, and two brackets to be
attached to the InterRAID-8 cabinet.
