34

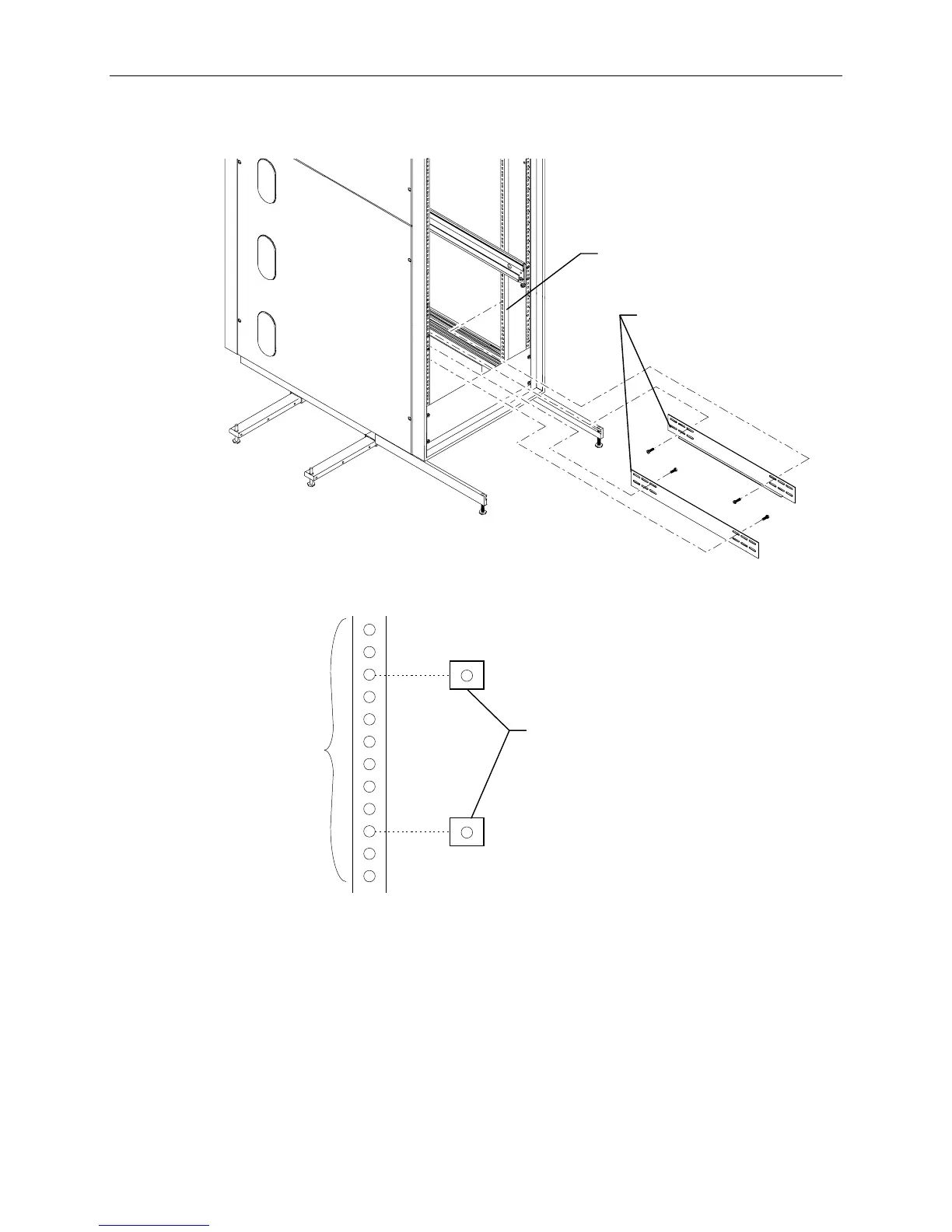

3. Attach the mounting shelves to the rack. Place tinnerman nuts for the shelves on the interior face
of all four mounting posts. Refer to the following figure.
Interior Face of
Mounting Post
Mounting Shelves
4. Place tinnerman nuts for the InterRAID-8 faceplate on the exterior face of both front mounting
posts.
4 U (12 Holes)
Tinnerman Nuts
