Intergraph StudioZ RAX - I;O Expansion Board (MSMT330)

To Next Page

To Previous Page

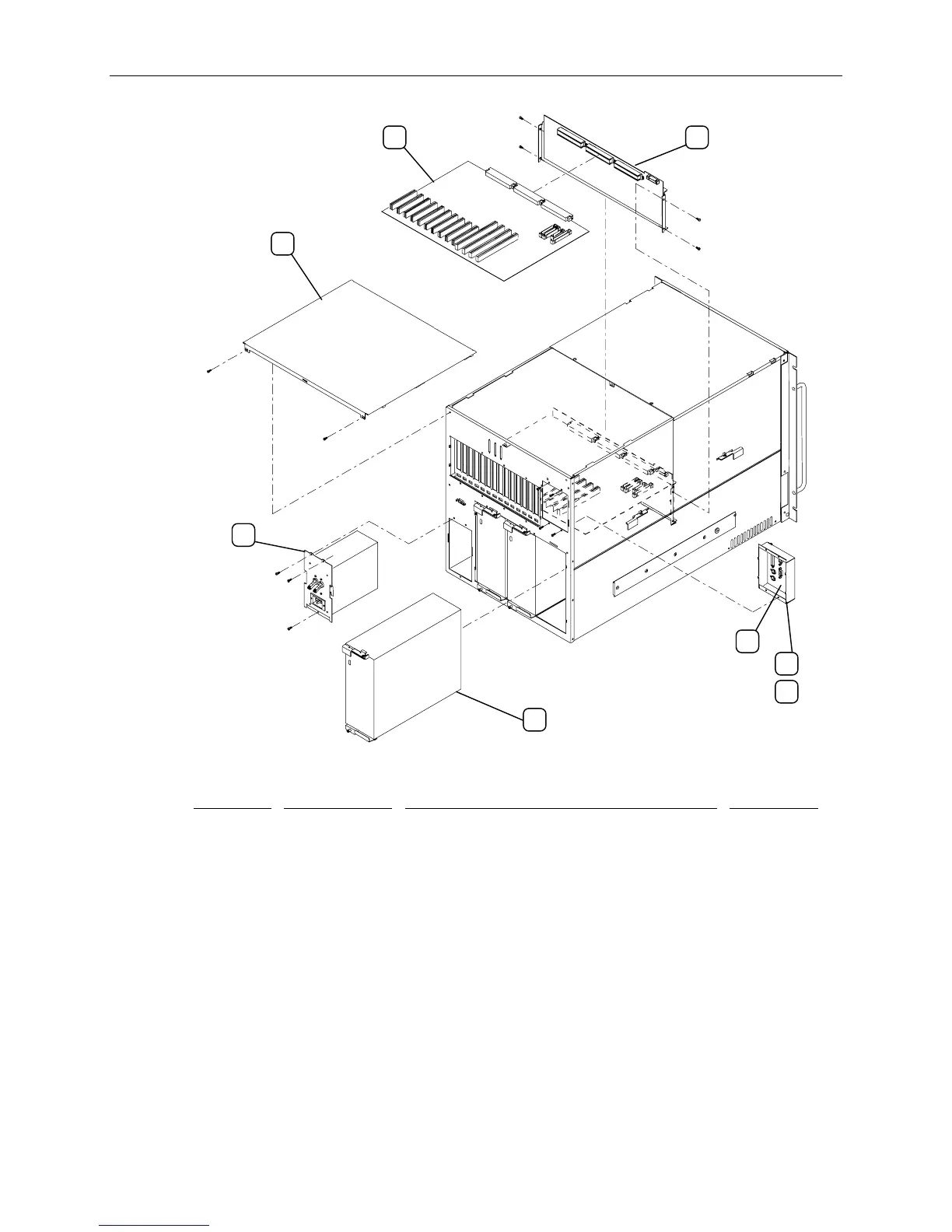

3 4

Find No.

Intergraph

Part No.

Description

Reference

Page

1 CFAB354F Back top cover n/a

2 MSMT328 I/O connector board 68

3 MSMT330 I/O expansion board 58

4 MSMT331 or

MSMT385

Power distribution board 71

5 n/a AC receptacle, circuit breaker switch, AC filter,

enclosure

6 MPWS139 550 W power supply, hot swappable, redundant 79

7 CFAB348 I/O panel n/a

NOTE The power distribution board has two board stiffeners attached. The assembly number using

MSMT331 or MSMT385 is MESAN180.
