Rows 0/1
Word 1
Rows 2/3Rows 6/7 Rows 0/1Rows 2/3Rows 4/5 Rows 6/7Rows 4/5
i0i1i2i3i0i1i2i3i0i1i2i3i0i1i2i3 i0i1i2i3 i0i1i2i3 i0i1i2i3 i0i1i2i3

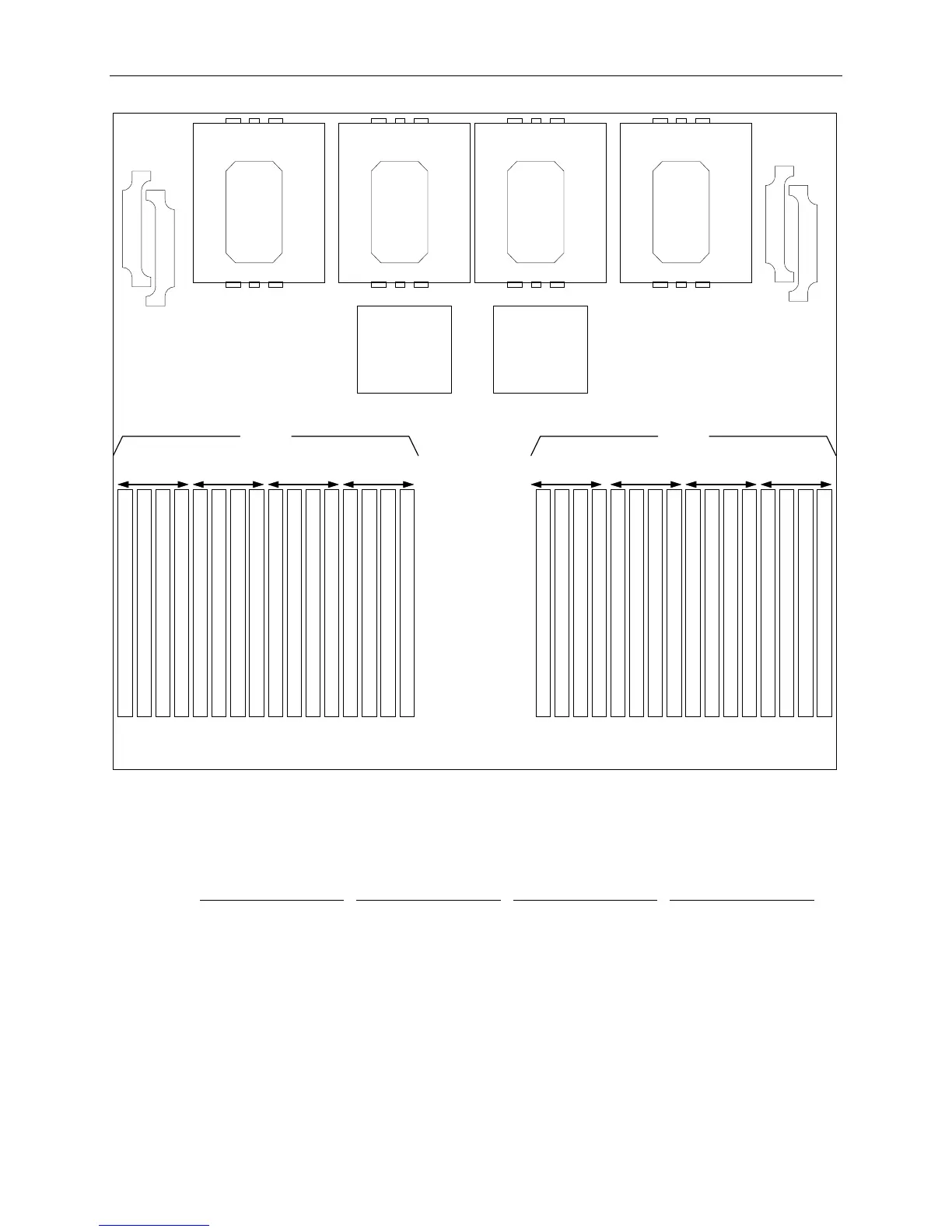

Bank 0 = Rows 0/1 Bank 2 = Rows 4/5
Bank 1 = Rows 2/3 Bank 3 = Rows 6/7
Word 0
The following table shows the correlation between interleaves, words, rows and the socket J numbers. The ECC
Memory driver program, used to detect and diagnose memory problems, specifies SIMM locations by interleave and
row, but does not distinguish which word the error occurred in. Refer to the System Introduction for ECC Memory
driver information.
i0
i1 i2 i3
W1 W0 W1 W0 W1 W0 W1 W0
Row 0
J36 J40 J35 J39 J34 J38 J33 J37
Row 1
J36 J40 J35 J39 J34 J38 J33 J37
Row 2
J32 J44 J31 J43 J30 J42 J29 J41
Row 3
J32 J44 J31 J43 J30 J42 J29 J41
Row 4
J28 J48 J27 J47 J26 J46 J25 J45
Row 5
J28 J48 J27 J47 J26 J46 J25 J45
Row 6
J24 J52 J23 J51 J22 J50 J21 J49
Row 7
J24 J52 J23 J51 J22 J50 J21 J49
