Intermec EasyCoder PD41 Service Manual

Chapter 4 — Interfaces
EasyCoder PD41/PD42 Printer Service Manual 91
EasyLAN Ethernet Interface
The EasyLAN interface board provides the printer with a 10/100 Mbit
Ethernet connection. The port is equipped with two LED indicators that
inform the user of the state of the connection:
This chapter only describes the physical installation of the EasyLAN
interface board; for detailed configuration and setup instructions, please
refer to the EasyLAN Software for PD41/PD42 Instructions (P/N 943-130-
xxx) and the EasyLAN User's Guide (P/N 1-960590-03).
Installing the EasyLAN Ethernet Interface
The installation kit contains:
• EasyLAN Ethernet interface board
• MAC address label
To install the EasyLan Ethernet Interface
1 Disconnect the power cord and remove the left-hand panel (For help,
see “To remove the left-hand panel” on page 27).
2 Put the printer back in upright position.
3 Locate the screw in the upper left corner of the electronics compartment
that holds the main board in place. Remove the screw.

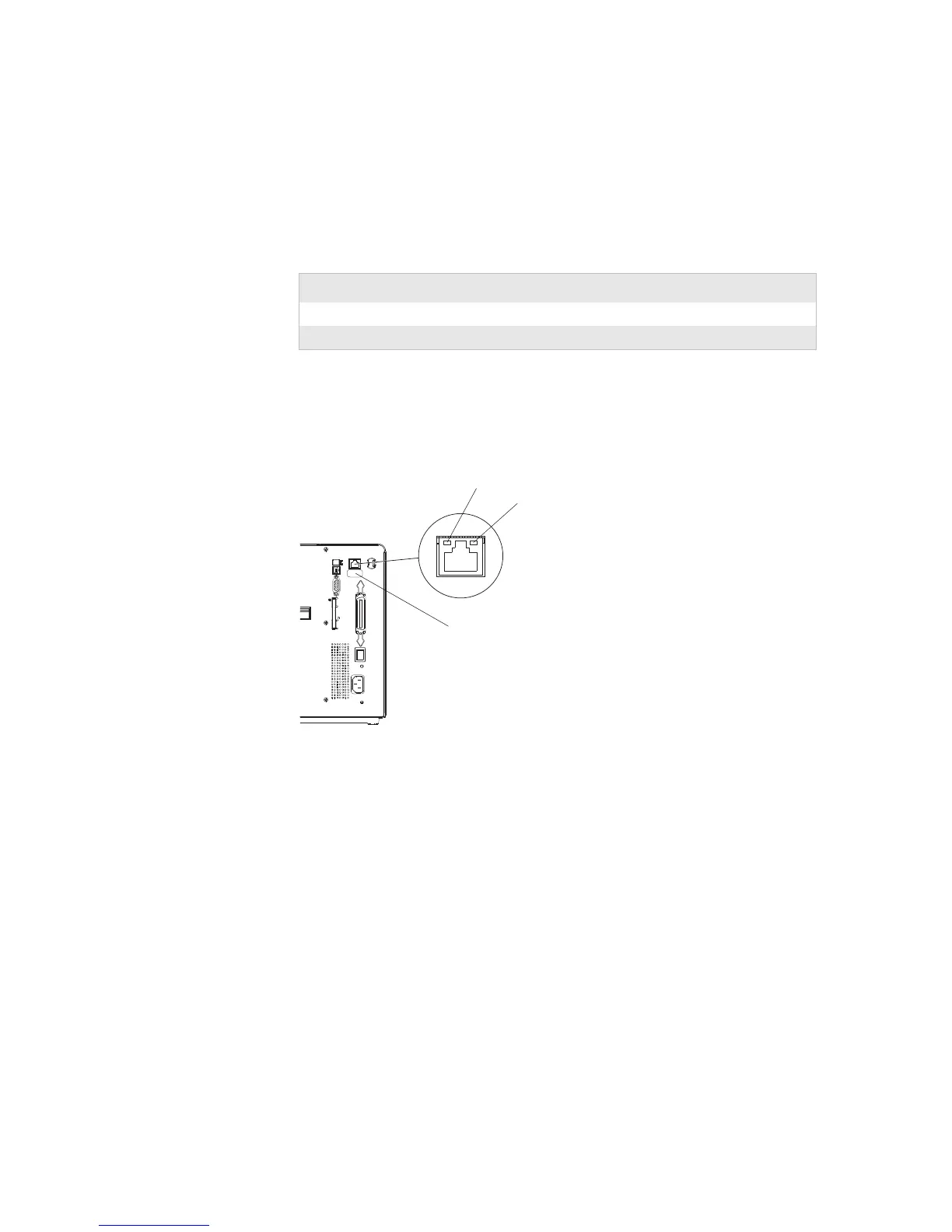

EasyLAN LED Indicators
LED Indicator On Off Flashing
Green Link No Link Data Activity
Yellow 100Mbit/s 10Mbit/s N/A
I
O
Yellow LED
Green LED
MAC Address Label

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
