Intermec EasyCoder PD41 Service Manual

Chapter 4 — Interfaces
EasyCoder PD41/PD42 Printer Service Manual 85

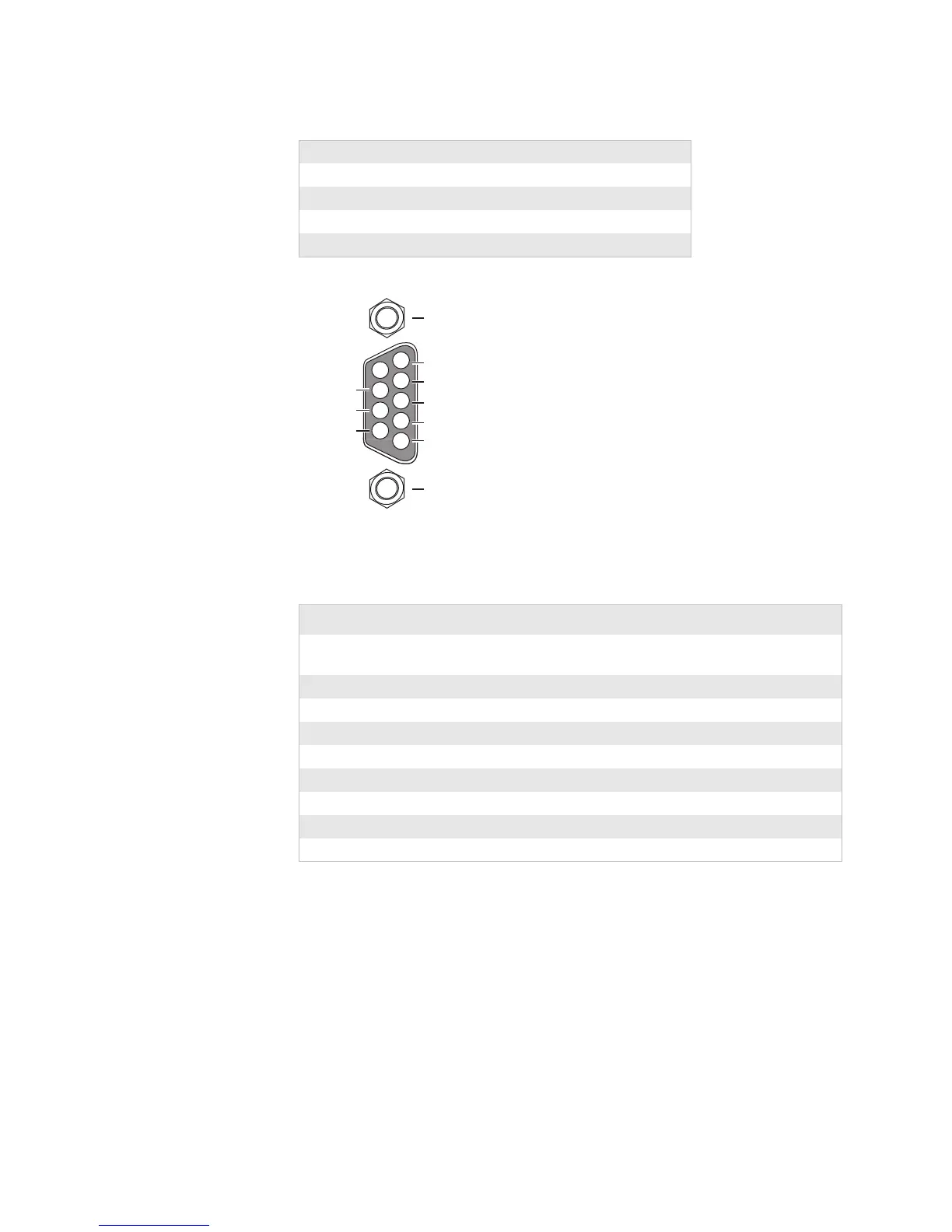

RS-232 Pinout
USB Serial Interface
The EasyCoder PD41/PD42 printer supports USB v1.1 (also called USB
2.0 full speed). To use the USB interface for printing from a PC, the
Intermec InterDriver needs to be installed on the PC.
The printer is a so called “self-powered device.” You can connect the printer
to a USB port on the host, either directly or via a hub. Keyboards, mouses,
or more printers can also be connected to the same hub.
Default Setup for Serial Communication
Baud rate 9600
Character Length 8 bits
Parity None
Stop bits 1
Handshaking XON/XOFF and RTS/CTS
Signals
Pin Signal Description Comment
1 EXT5V External +5 VDC Max. 500mA, permanently
enabled
2 TxD Tr a n smi t d ata
3RxD Receive data
4 Not used
5GND Ground
6 DTR Tr a n smi t d at a Connected to RTS
7CTS Clear to send
8 RTS Request to send
9NC
4
5
3
2
1
8
9
7
6
TXD out
+5V DC
RXD in
DSR in
GND
MTG
MTG
DTR out
CTS in
RTS out

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
