Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
58 EasyCoder PD41/PD42 Printer Service Manual
Installing the Rewinder
The installation kit contains:
• One rewinder module with liner retention clip
• One liner retention guide
• Four M3x4.5 screws
To install the rewinder
1 Open the side door.
2 Remove the rewinder option cover plate, held by two phillips screws (see
previous page).

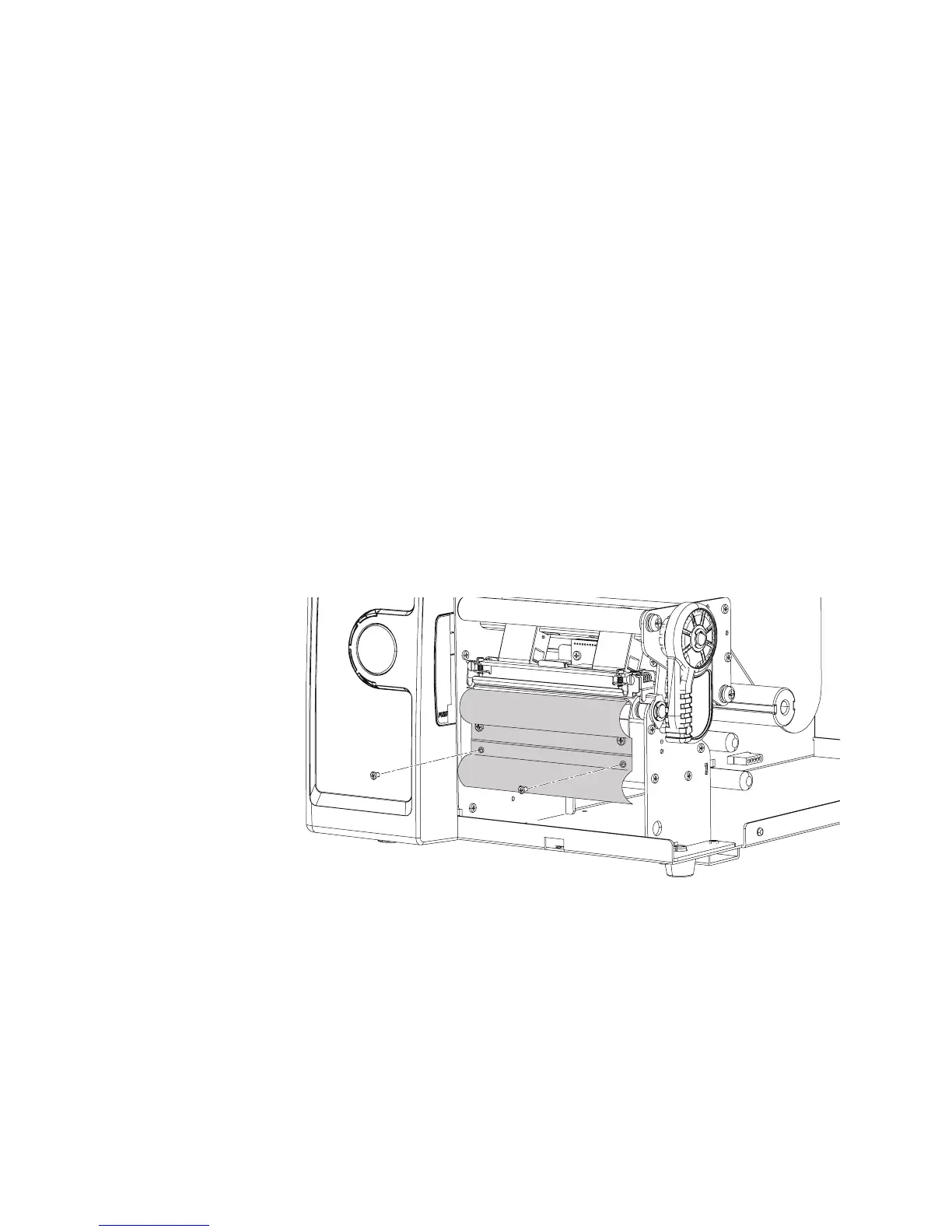

3 Remove the liner retention clip from the rewinder unit. Attach the
rewinder unit to the center section of the printer using two of the screws
included in the kit together with the two that were previously used to
hold the cover plate in place.
4 For batch takeup operation only: Remove the screw that holds the front
cover. Remove the front cover (In batch takeup operation, labels are
wound up on the internal rewinder instead of being peeled off at the
tear bar).
5 For batch takeup operation only: Attach the liner retention guide.
6 Install media as described in the printer user’s guide.

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
