Chapter 1 — Troubleshooting the PD41/PD42
2 EasyCoder PD41/PD42 Printer Service Manual
Error Handling
The EasyCoder PD41/PD42 printer communicates errors to the user via
the red Error LED and the blue Ready-to-Work LED on the front panel.
When an error condition occurs, these two will be turned on or flash
depending on the cause of the error. On the PD42, additional error
information is communicated through the display.

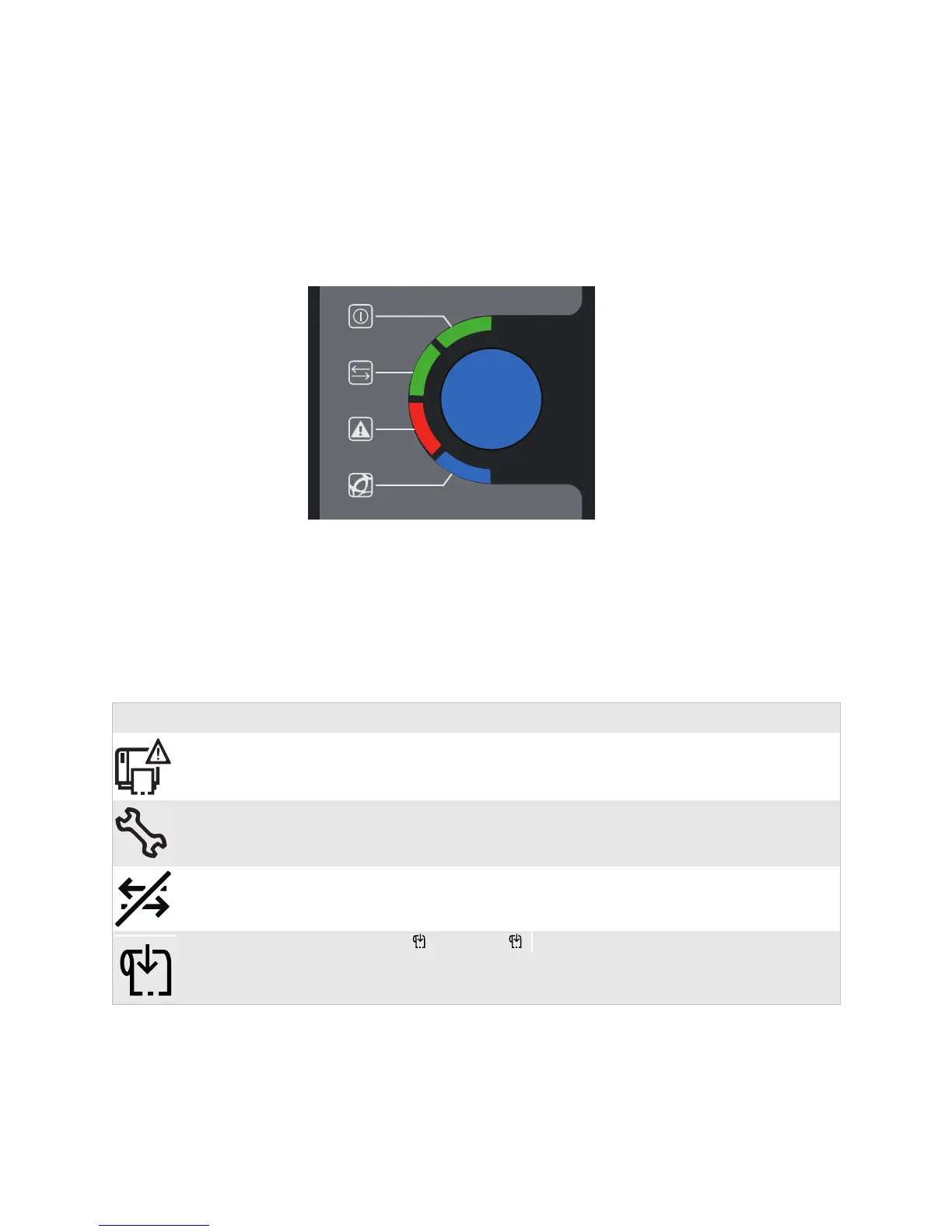

LEDs and the Print button
When all errors have been cleared, the Error LED is turned off, the error
message disappears from the display and the Ready-to-Work indicator is
turned back on.
Display Error Messages (Blue Ready-to-Work LED Blinks)
Error Symbol Error Message Solution
Printhead lifted Lower printhead.
Maintenance The printer is upgrading its firmware. Wait for it to complete the task.
IP link error Check if the network cable has been unplugged
Press feed not done Press Feed( ) or Testfeed( )
Test

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
