Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
EasyCoder PD41/PD42 Printer Service Manual 57
Rewinder Module
This section describes the optional internal rewinder required for peel-off
(self-strip) and batch takeup operation.
The rewinder module is an optional device for the EasyCoder PD41/PD42
printer. The printer is prepared with belt, pulley, and gear train for driving
the rewinder using the same stepper motor that also drives the platen roller
and transfer ribbon rewinder. A removable plate covers the hole in the
center section for the rewinder.
Rewinder Module: Driving components
The rewinder module consists of the parts depicted below. Only the liner
retention clip is available as a spare part.

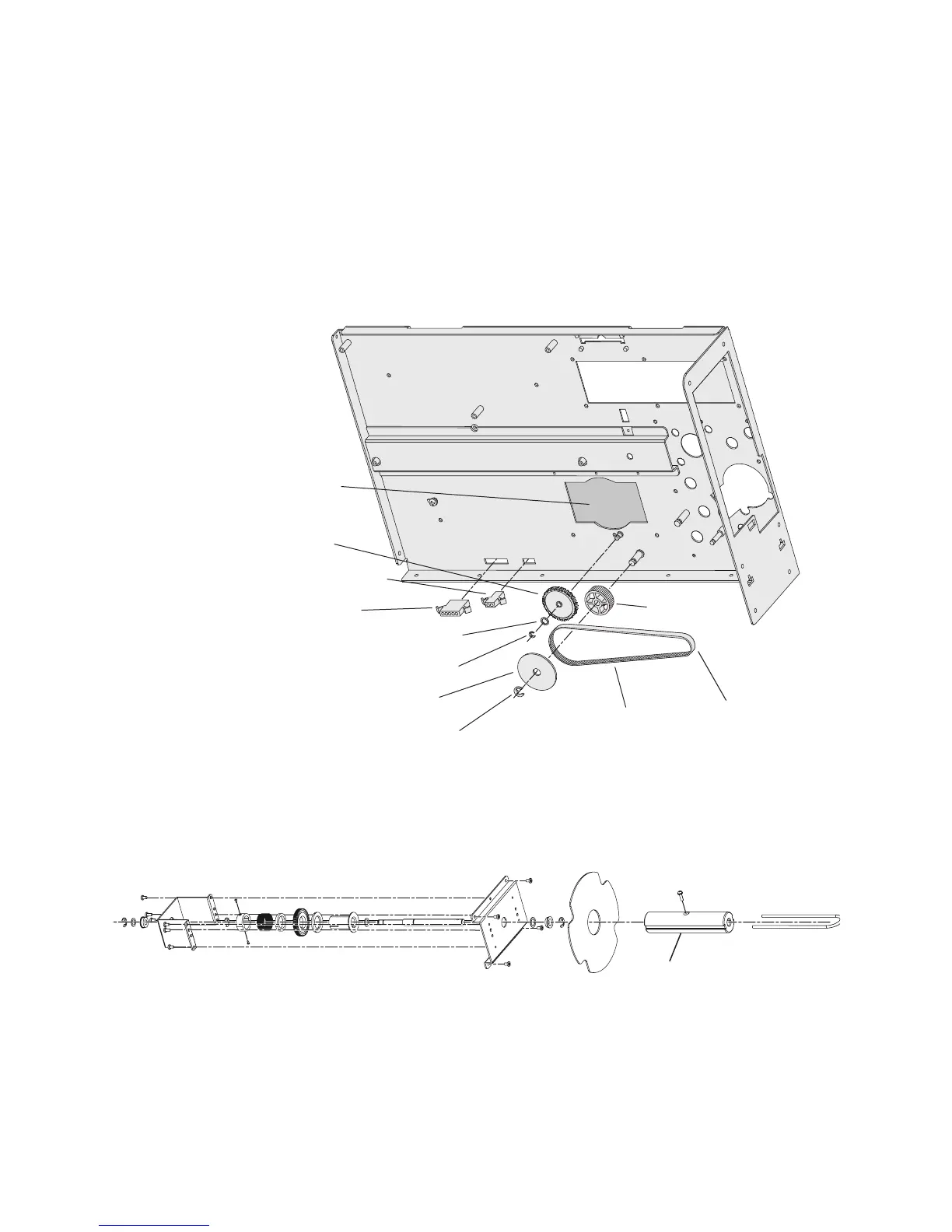

Rewinder Module: Exploded view
Connects to outer
pulley of stepper
motor
Belt
E-ring
Flange
E-ring
Gear/Pulley
Washer
Cutter Connector
Empty Connector
Gear
Cover Plate
Linear
retention
clip

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
