Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
56 EasyCoder PD41/PD42 Printer Service Manual

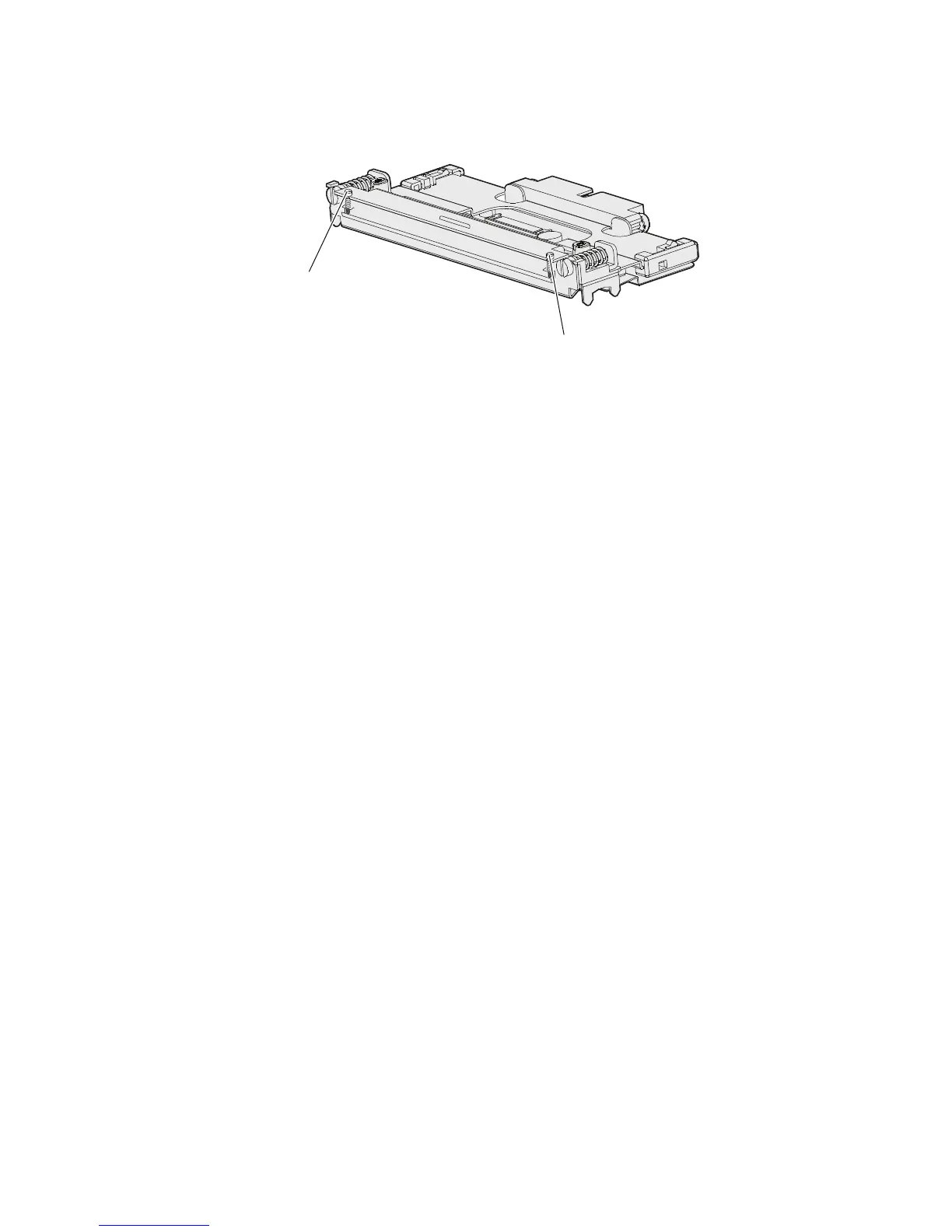

The ribbon shield mechanism is located on the thermal printhead. It has
two adjustable screws, A and B, as shown below.
Ribbon Shield Adjustment Screws
If labels come out looking as depicted below, you may want to try adjusting
the ribbon shield.
Low Quality Printout: These bar codes show the results of ribbon wrinkling.
To adjust ribbon shield
1 If the label printout matches Test label A, turn screw A clockwise. If the
printout matches Test label B, turn screw B clockwise.
2 Twist the screw half a turn clockwise and perform a new test print.
3 Continue until you achieve a smooth printout quality.
Screw adjustment must not exceed two full turns or paper may not feed
smoothly. In such a case, turn the screws counterclockwise completely and
start over.
To reset ribbon shield to factory default setting
1 Tighten screws A and B (see above) so that the springs are fully
compressed. Be careful not to overdo it, as it may damage the threads.
2 Unscrew screws A and B 4 ½ turns.
B
A
1234567890
Test Label A
1234567890
Test Label B

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
