Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
EasyCoder PD41/PD42 Printer Service Manual 55

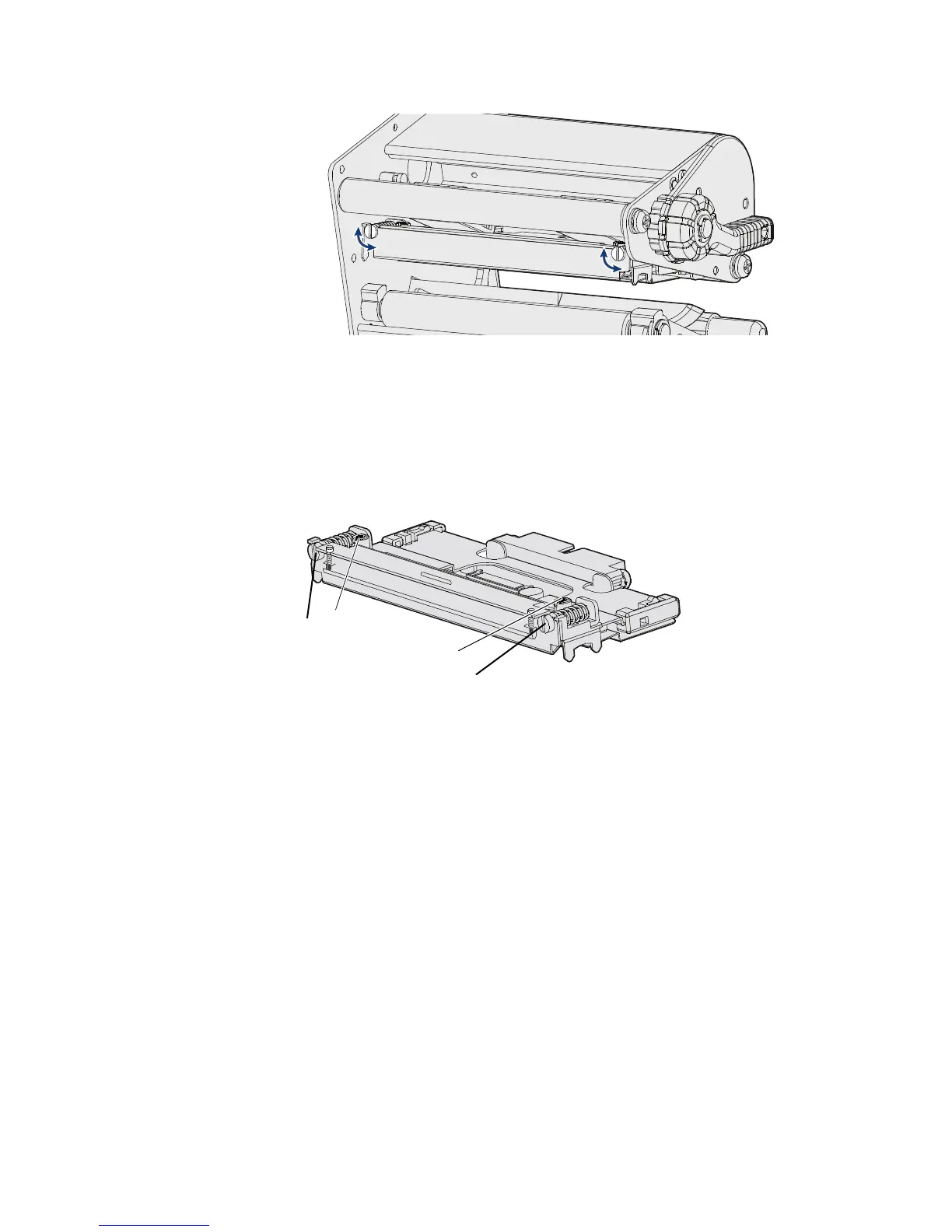

6 Engage the printhead and lock the printhead by tightening the two
screws at the top of the printhead bracket (the reverse action of Step 3).
7 Load the ribbon (only in case of thermal transfer printing).
8 Test the print quality and readjust if necessary.
To reset dot line position to factory default setting
1 Release screws A and B (half a turn is enough).
2 Tighten screws C and D (counterclockwise) as far as they will go. Be
careful not to overdo it, as it may damage the threads.
3 Unscrew screws C and D 5 full turns (200 dpi printhead) or 1 ½ turns
(300 dpi printhead).
4 Tighten screws A and B.
B
A
C
D

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
