Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
42 EasyCoder PD41/PD42 Printer Service Manual

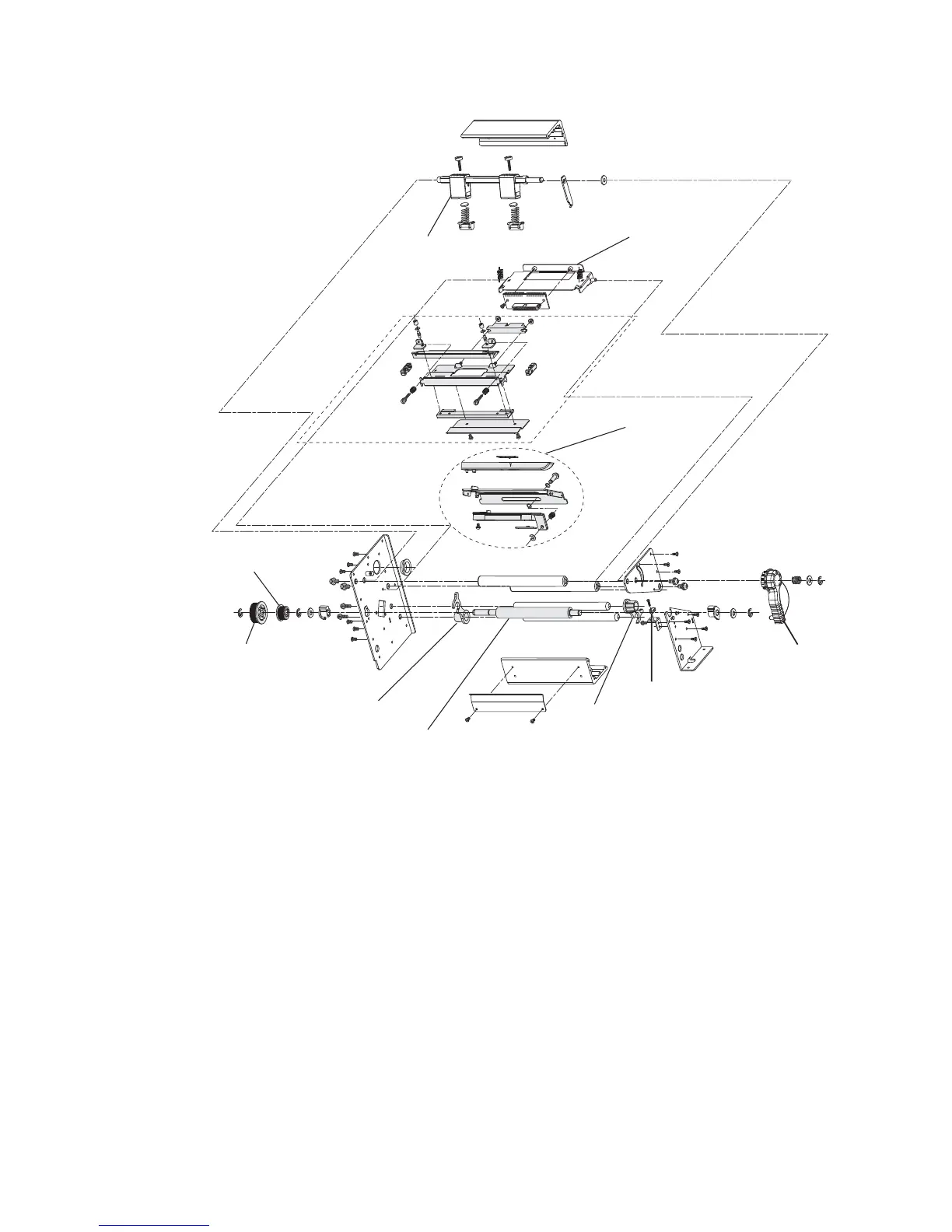

Print Unit Exploded View
Motor, Pulleys, and Belts
The stepper motor drives both the platen roller and the transfer ribbon
rewind unit via a series of belts and pulleys.
As a standard, the stepper motor has double pulleys to be prepared for the
installation of an optional rewinder (as described in “Rewinder Module”
on page 57). The motor and belt are available as spare parts. The tension of
the belt is automatically adjusted by a sprinkled arm-and-wheel
arrangement attached to the center section.
The stepper motor module is attached to the bottom plate using four
screws. The motor is connected by a four-wire cable harness to connector
P31(“MOTOR”) on the main board.
Label Gap Sensor Module
Headlift
Sensor
Outer
Media
Guide
TPH Lever
(blue)
Inner
Media
Guide
Platen Roller
Pulley
(motor belt,
203 or 300 dpi)
Pulley
for Belt to
Ribbon Unit
Printhead Module
(203 or 300 dpi)
Pressure Box
(Blue)

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
