Chapter 3 — Replacing Parts
EasyCoder PD41/PD42 Printer Service Manual 37
5 Remove the belt from the pulley on the rewind unit. Make sure that the
spring and washer stay on the supply unit shaft.
6 Reassemble in reverse order.
Ribbon Supply and Rewind Units
The ribbon supply and ribbon rewind units look exactly the same, but
differ in having internal springs with different strength. Only the ribbon
core spring blade is replaceable as described in the next section.
At the outer end of each unit is a knob for adjusting the ribbon tension, see
below.
Replacing the Ribbon Core Spring Blade
The ribbon core spring blade is held by a single screw.

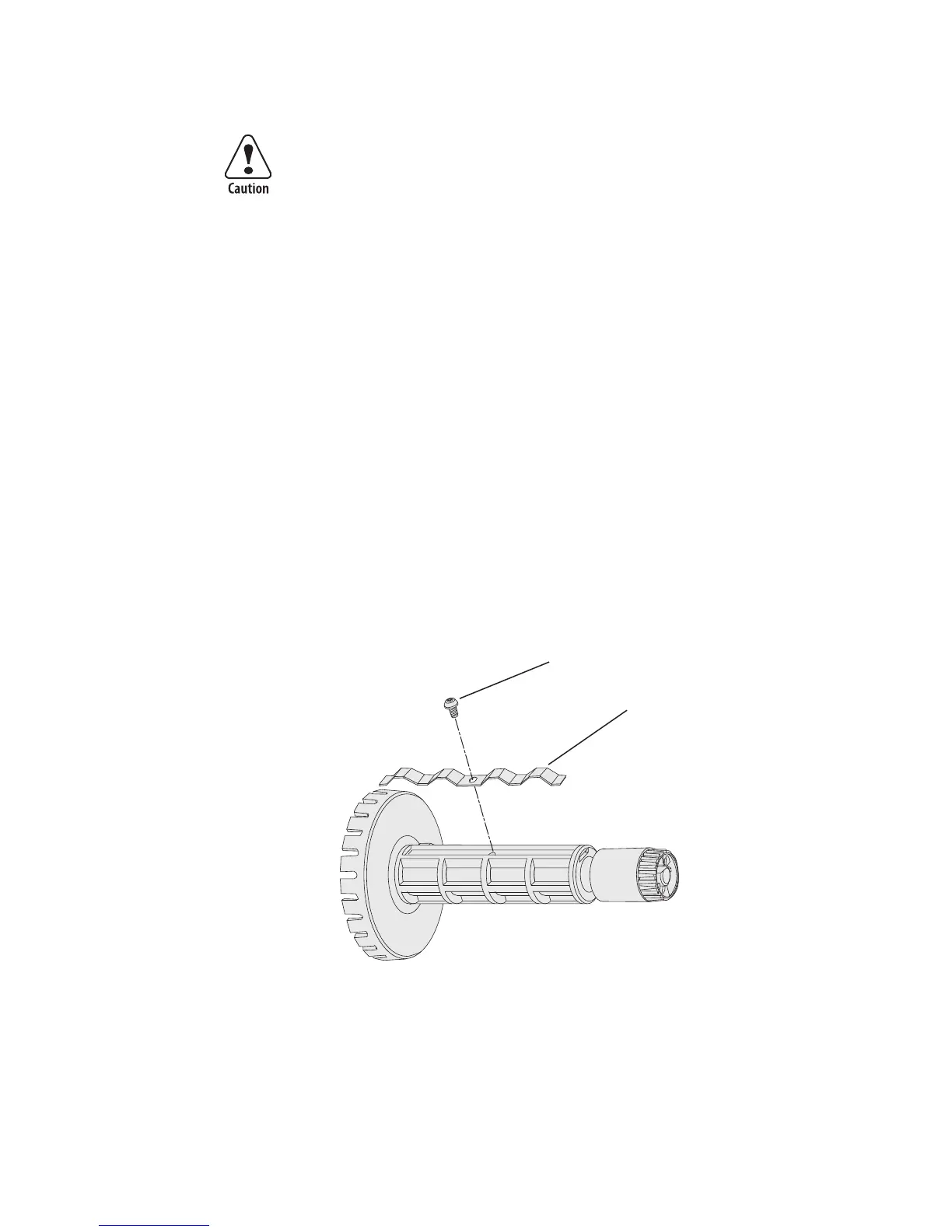

Ribbon Core Spring Blade
DO NOT loosen the screws that hold the bearing and the one-way
clutch to the bracket. Doing so will affect the factory-adjustment of
the supply and rewind units and can cause ribbon creasing
problems.
Die Schrauben, mit denen das Lager und die Kupplung an der
Halterung befestigt sind, NICHT lockern. Dies verändert die
Werkseinstellung der Zufuhr- und Aufwickelmodule und kann zu
Bandfaltungsproblemen führen.
Ribbon core
spring blade
Screw

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
