Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
EasyCoder PD41/PD42 Printer Service Manual 35
Transfer Ribbon Mechanism
This section describes the thermal transfer ribbon mechanism.
Ribbon Module
The thermal transfer mechanism holds the supply of thermal transfer
ribbon and winds up the spent ribbon after printing. It consists of a self-
contained unit that is attached to the center section and driven by a belt
from a pulley on the platen roller shaft (For help, see “Print Mechanism”
on page 41). In addition to this unit, there is also a ribbon out sensor and
an ink position selector attached to the center section.
Ribbon Module
The ribbon module can be replaced as a unit. It also has four replaceable
parts—the belt, the ribbon core spring blades, the ribbon out sensor, and
the ink position knob.
To replace the ribbon module
1 Disconnect the power cord and remove the left-hand panel (For help,
see “To remove the left-hand panel” on page 27).

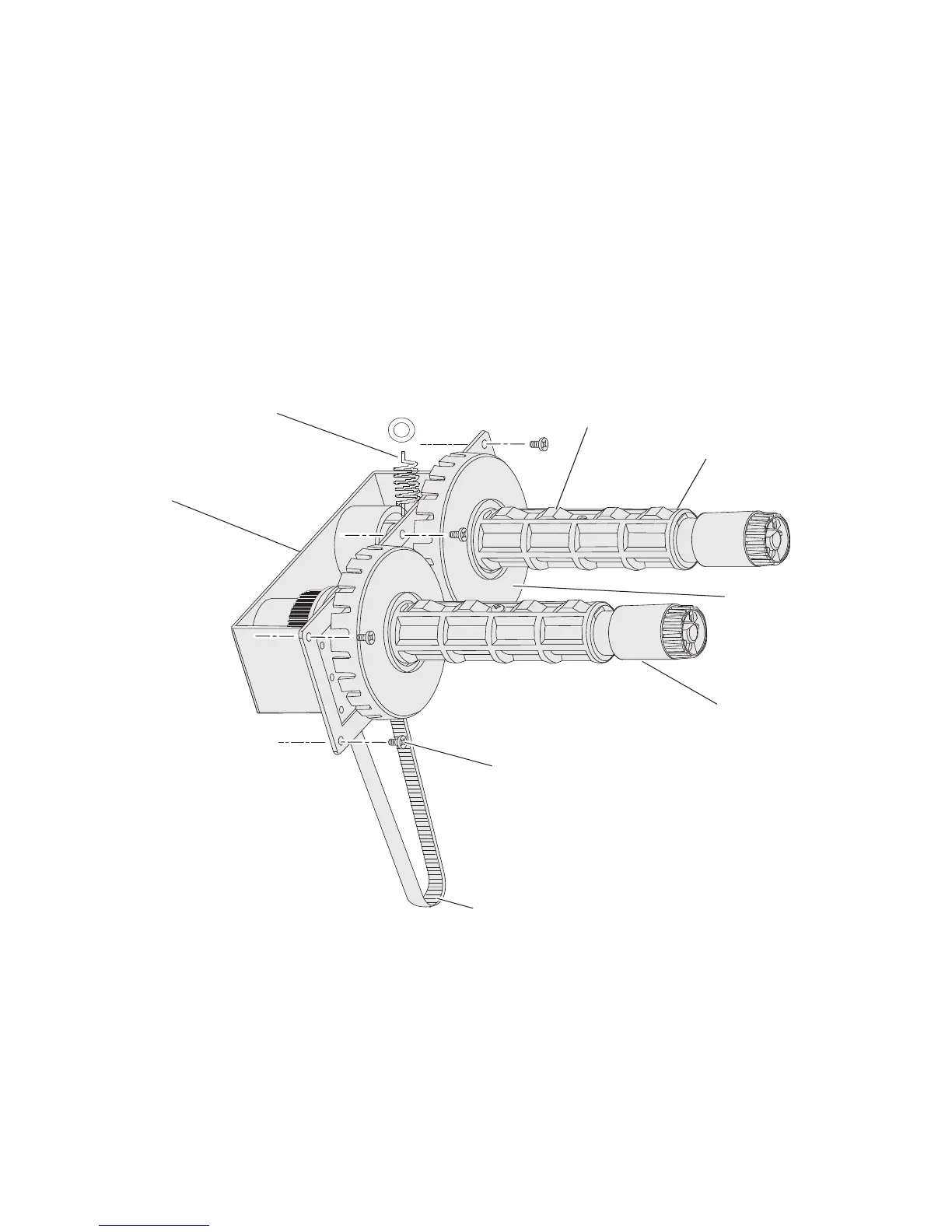

Bracket
Spring for Ink
Position Knob
Ribbon Core
Spring Blade
Screws (x6)
Belt
Ribbon Rewind Unit
Ribbon Out
Sensor Location
Ribbon Supply Unit

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
