Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
34 EasyCoder PD41/PD42 Printer Service Manual

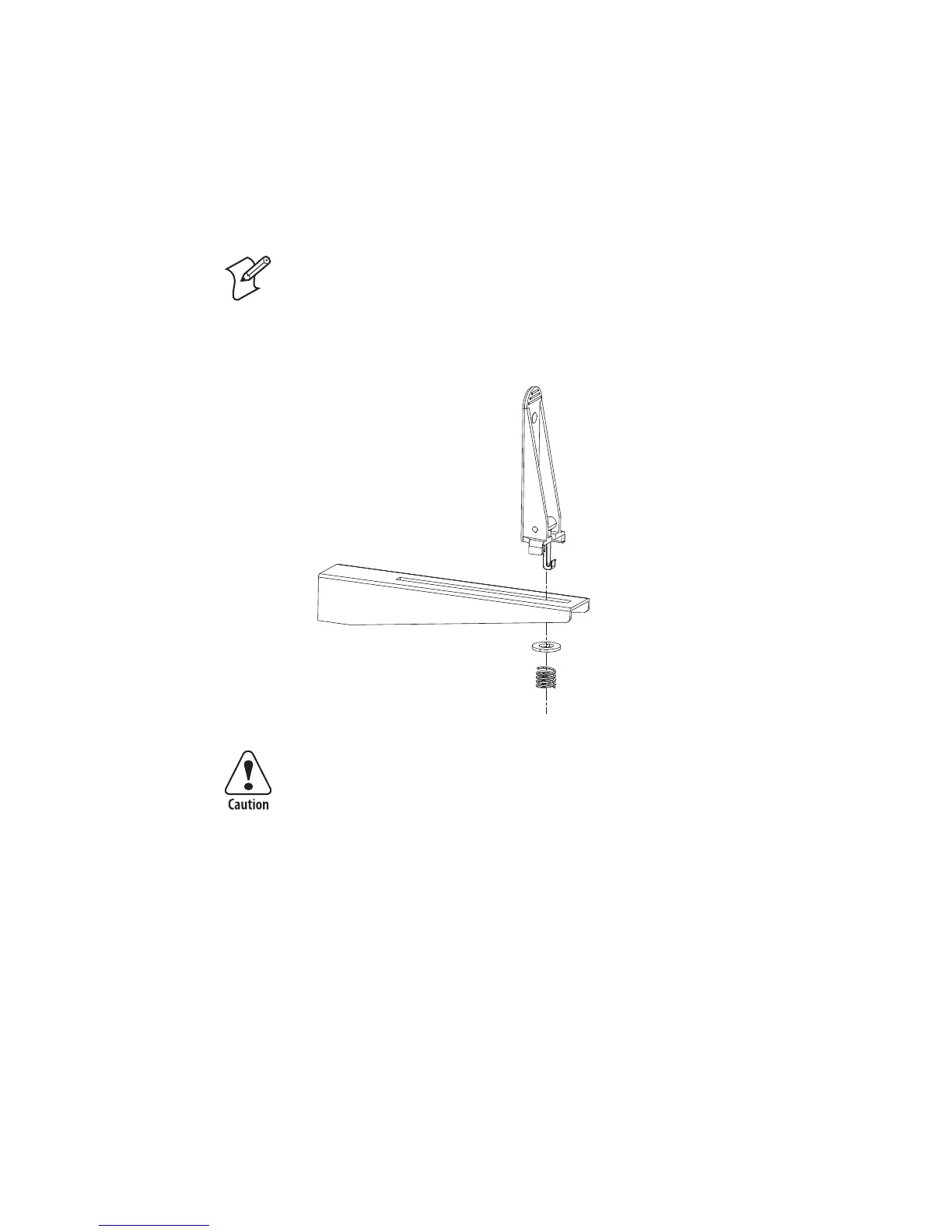

To install the edge guide
1 Insert the edge guide into the slot in the post.
2 First fit the washer and then the coil spring from underneath the post to
the protruding part of the edge guide and engage the coil spring to the
hook.
Note: The high edge guide is hinged to allow media load. Before
removing an empty core or loading a roll of media, the guide must be
lowered to a horizontal position. Similarly, after loading the media it
must be flipped back so it points straight up. Like the low edge guide, it
can be adjusted along the post to fit different media widths.
Make sure you put the high edge guide in vertical position before you
close the side door, or the guide could get damaged.
Sicherstellen, dass die Führung mit der hohen Kante in die vertikale
Stellung gebracht wird, bevor die Seitenklappe geschlossen wird.
Andernfalls könnte die Führung beschädigt werden.

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
