Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
EasyCoder PD41/PD42 Printer Service Manual 25
Side Panels
This section describes the right-hand door assembly that covers the media
compartment and the left-hand side panel that covers the electronics
compartment.
Right-Hand Door
The right-hand door covers the media compartment, which contains the
print mechanism, the transfer ribbon mechanism, the media supply, and
the optional rewinder. The door is attached to the center section with two
hinges and can be opened 180° to facilitate ribbon and media load.
The door assembly consists of a hinged door to which the top right panel is
fitted using four screws. A clear plastic inspection window is glued to the
inside of the door. A media and ribbon load instructions label is fitted
inside the top part of the door.
The door assembly is available as a complete unit. The top/right panel can
be replaced separately and is attached to the door using a total of four
screws (not included).
To remove the right-hand door
Remove the four screws that attach the hinges to the center section.

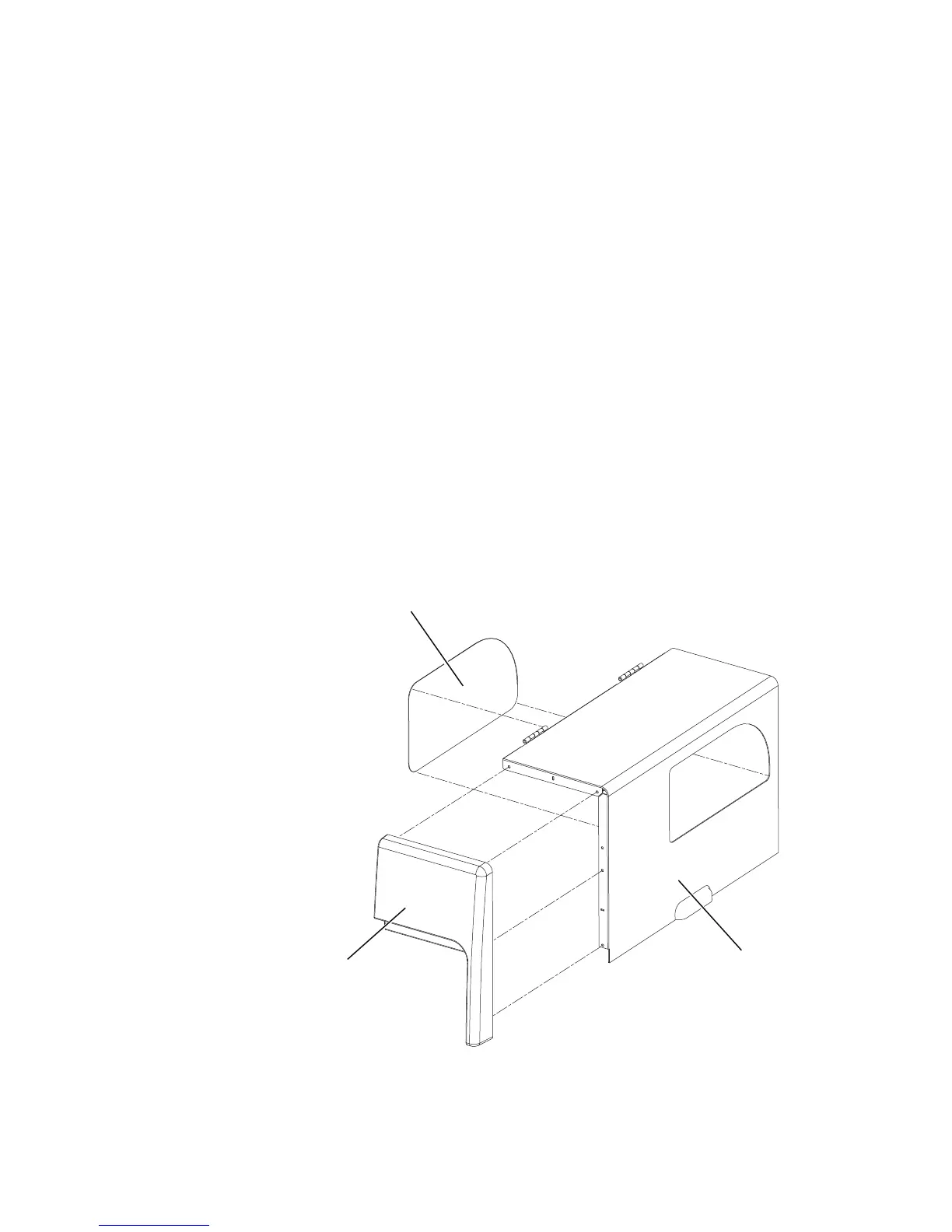

Right-Hand Door
Window
Right-hand
Door
Top/Right Panel

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
