Intermec EasyCoder PD41 Service Manual

Chapter 3 — Replacing Parts
54 EasyCoder PD41/PD42 Printer Service Manual
5 Engage the printhead and load the ribbon.
6 Test and readjust if necessary.
When using thick or stiff media, the printhead needs to be moved forward
so the dot line is precisely aligned with the top of the platen roller. The
platen roller and printhead must of course be perfectly parallel as well.

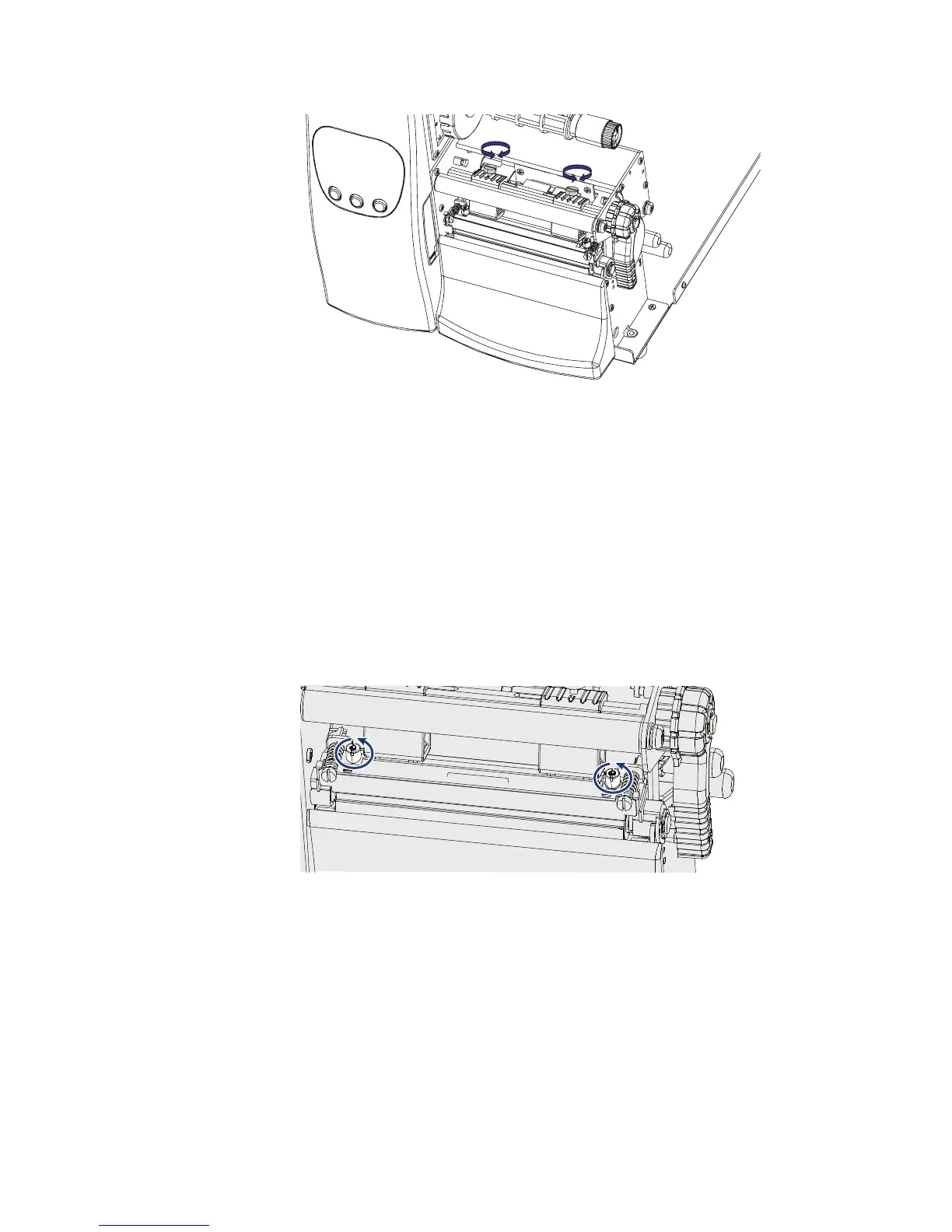

To adjust the printhead dot line position
1 Open the side door.
2 Remove the ribbon and lower the printhead.
3 Use a straight-slot screwdriver to turn the two screws at the top of the
printhead bracket counterclockwise a single turn.
4 Turn the printhead lever to raise the printhead.
5 Carefully turn both screws at the front of the printhead clockwise a
quarter of a turn at a time (a full turn corresponds to 0.55 mm, which is
a lot). Be sure to make identical adjustments on both screws! If you are
unsure, tighten both screws by turning them counterclockwise as far as
they go and start over.

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
