Invacare Spree XT - Folding;Unfolding Back Assembly

SECTION 6—BACK/SEAT
Part No 1118364 53 Spree XT

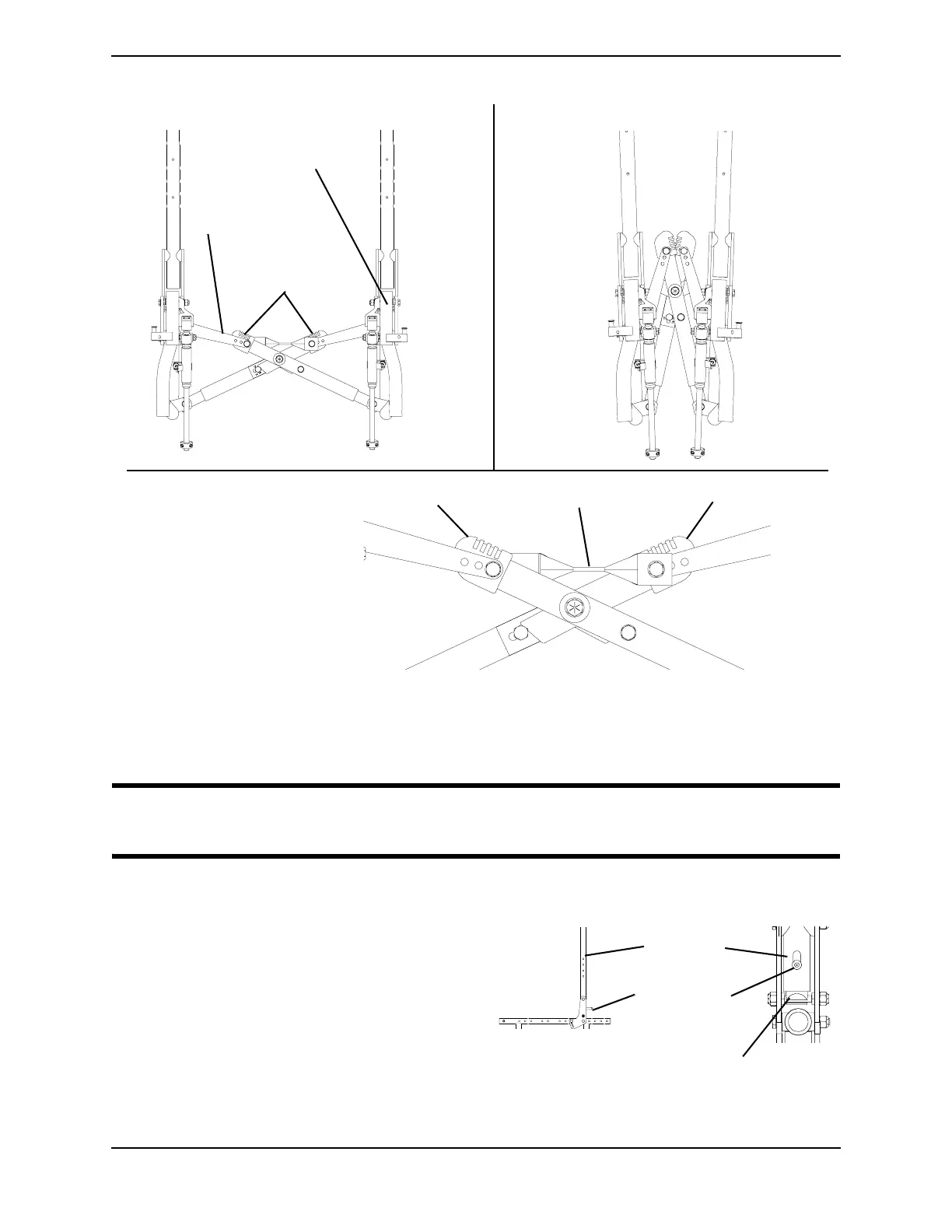

FIGURE 6.1 Folding/Unfolding the Wheelchair
Folding/Unfolding Back Assembly
 WARNING
The back MUST be locked securely in place BEFORE using the wheelchair.
NOTE:Forthisprocedure,referto
FIGURE6.2.
1. Dooneofthefollowing:
•Unfold‐Push/pulltheback
towardsrearofwheelchairuntilit
locksinplace.
•Fold‐Pulluponthebackrelease
latchesandpushthebacktowards
thefrontofthewheelchair.
FIGURE 6.2 Folding/Unfolding Back
Assembly
Unfolded
Folded
DETAIL “A” - STRAP
Pivot
Link
Side Frame
Crossbrace
Ends
Crossbrace End
Crossbrace End
Strap
Front of
Wheelchair
Back Release
Latch
Back Cane
Back Locked Securely
