Invacare Spree XT - Adjusting

SECTION 9—ANTI-TIPPERS
Part No 1118364 65 Spree XT
Adjusting
1. Depressthereleasebuttononthewheeledportionoftheanti‐tipperandslideit
up/downtoachieve1‐½to2‐inchclearance.
 WARNING
Anti-tippers MUST be fully engaged and release buttons fully protruding out of
same respective adjustment holes BEFORE use. This will avoid a
3-wheeling situation.
2. Ensurethatthereleasebuttonsarefullyengagedintheadjustmentholesand1‐1½to
2‐inchclearanceismaintained.

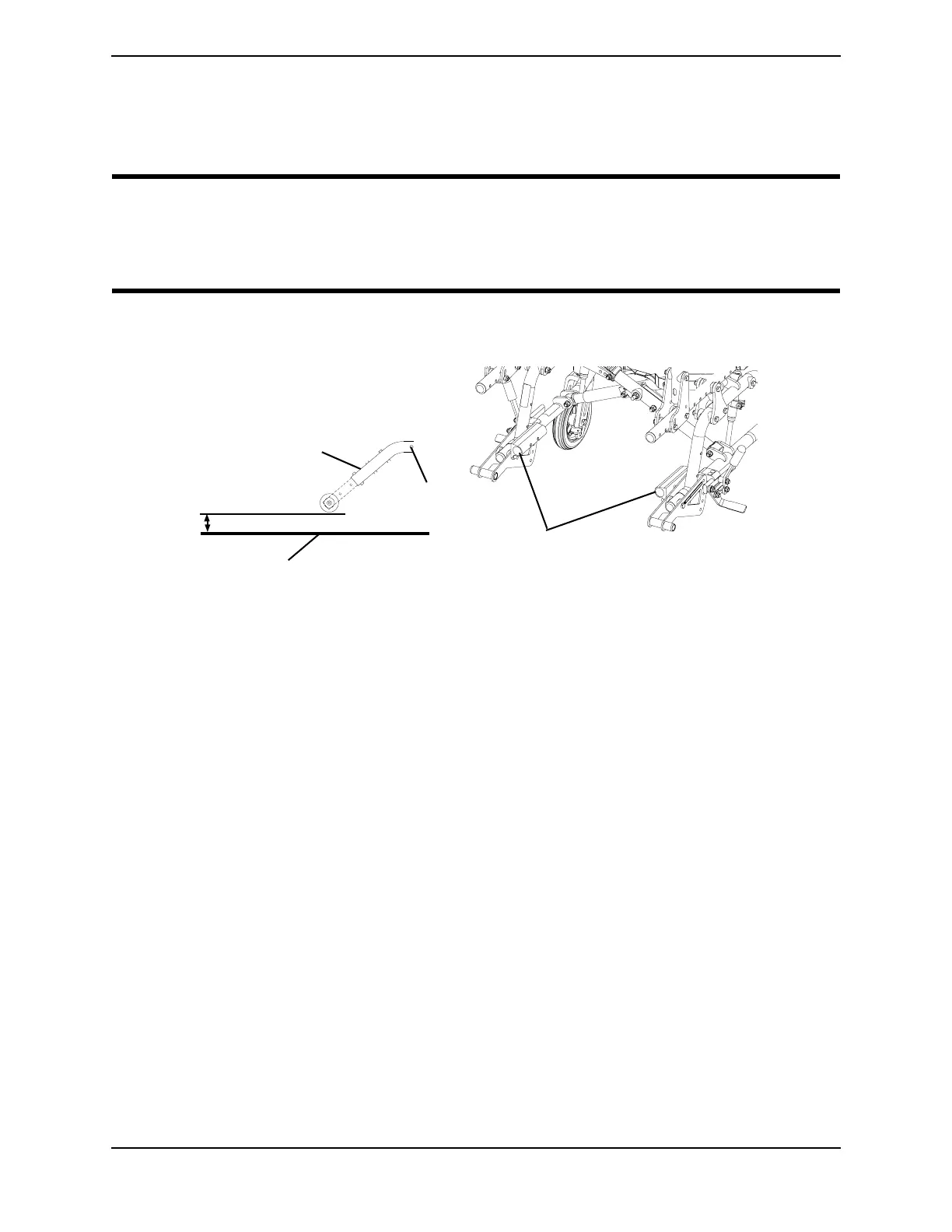

FIGURE 9.1 Installing/Adjusting Anti-Tippers
Anti-tipper
Release
Button
Anti-tipper Mounting
Brackets
Ground
DETAIL “A” - ANTI-TIPPER
CLEARANCE
