SECTION 11—TRANSPORT READY OPTION
Spree XT 74 Part No 1118364
Vehicle-Anchored Belts
NOTE:Forthisprocedure,refertoFIGURE11.2.
Thiswheelchairhasanoverallratingof“A ” withregardtoaccommodatingtheuseand
fitofvehicle‐anchoredbelts.Thisratingisscoredasfollows:
ThetestforLateralStabilityDisplacementforPoint(P)isshowninFIGURE11.2.The
averagetestresultforpoint(P)is0.8125‐inches(21.5mm).

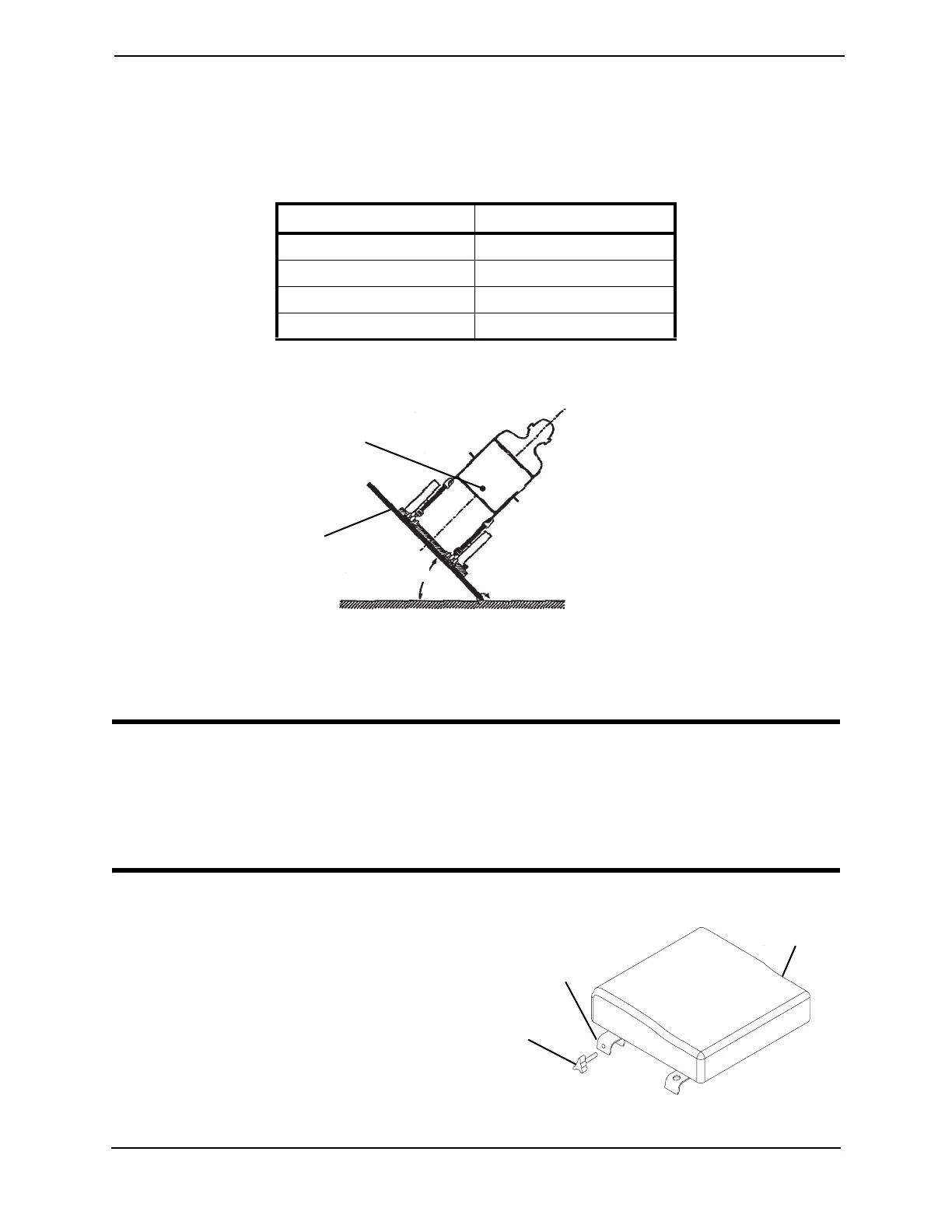

FIGURE 11.2 Vehicle-Anchored Belts
Seating System
 WARNING
This wheelchair has been tested for seating in a motor vehicle with the factory
installed seating system ONLY.
When feasible, wheelchair occupants should transfer into the vehicle seat and use
the OEM (Original Equipment Manufacturer) vehicle-installed restraint system.
NOTE:Forthisprocedure,refertoFIGURE11.3.
Thefactoryinstalledseatingsystemhasa
frontmountingbracketontheseatwhich
mustbesecuredtothewheelchairframe.
1. Securelytightenthemountingscrew(s)
tosecurethefrontoftheseattothe
wheelchairframe.
2. Refertotheinstructionswhichcame

withtheseatingsystemforadditional
information.
FIGURE 11.3 Seating System
RATING DESCRIPTION
A Excellent
B Good
C Fair
D Poor
NOTE:Rearviewof
wheelchairandhuman
surrogatesecuredontest
platformandtiltedto45
degrees.
Rear View
Test
Platform
Point (P)
45°
Front Mounting
Bracket
Mounting
Screw
Seat
