SECTION 11—TRANSPORT READY OPTION
Part No 1118364 75 Spree XT
Positioning Belts
 WARNING
The angle of the pelvic belt should be within the preferred zone of 45 to 75 degrees
to the horizontal OR within the optional zone of 30 to 45 degrees to the horizontal.
Steeper side-view pelvic belt angles are
especially important if the pelvic belt is
intended to be used for postural support
in addition to occupant restraint in a
frontal crash. Steeper angles will reduce
the tendency for a vertical gap to
develop between the user and the belt
due to compliance of seat cushions and
belt movement, thereby reducing the
tendency for the user to slip under the
belt and for the belt to ride up on the
soft abdomen during normal use.
Steeper belt angles also reduce the tendency for upper-torso belts to pull the pelvic
belt onto the abdomen during frontal impact loading.
NOTE:Forthisprocedure,refertoFIGURE11.4.
1. Thepelvicbeltshouldbewornlowacrossthefrontofthepelvis.
2. Positiontheuppertorsobelt(s)overtheshoulders.
3. Thebelt(s)shouldnotbeheldawayfromthebodybywheelchaircomponentsor
parts,includingbutnotlimitedtowheelchairarmrestsorwheels.RefertoFIGURE
11.4forproperandimproperpositioningofthebelts.
4. Ensurethebelt(s)arenotbetwisted.
5. Adjustbeltsasfirmlyaspossible,beingmindfulofusercomfort.

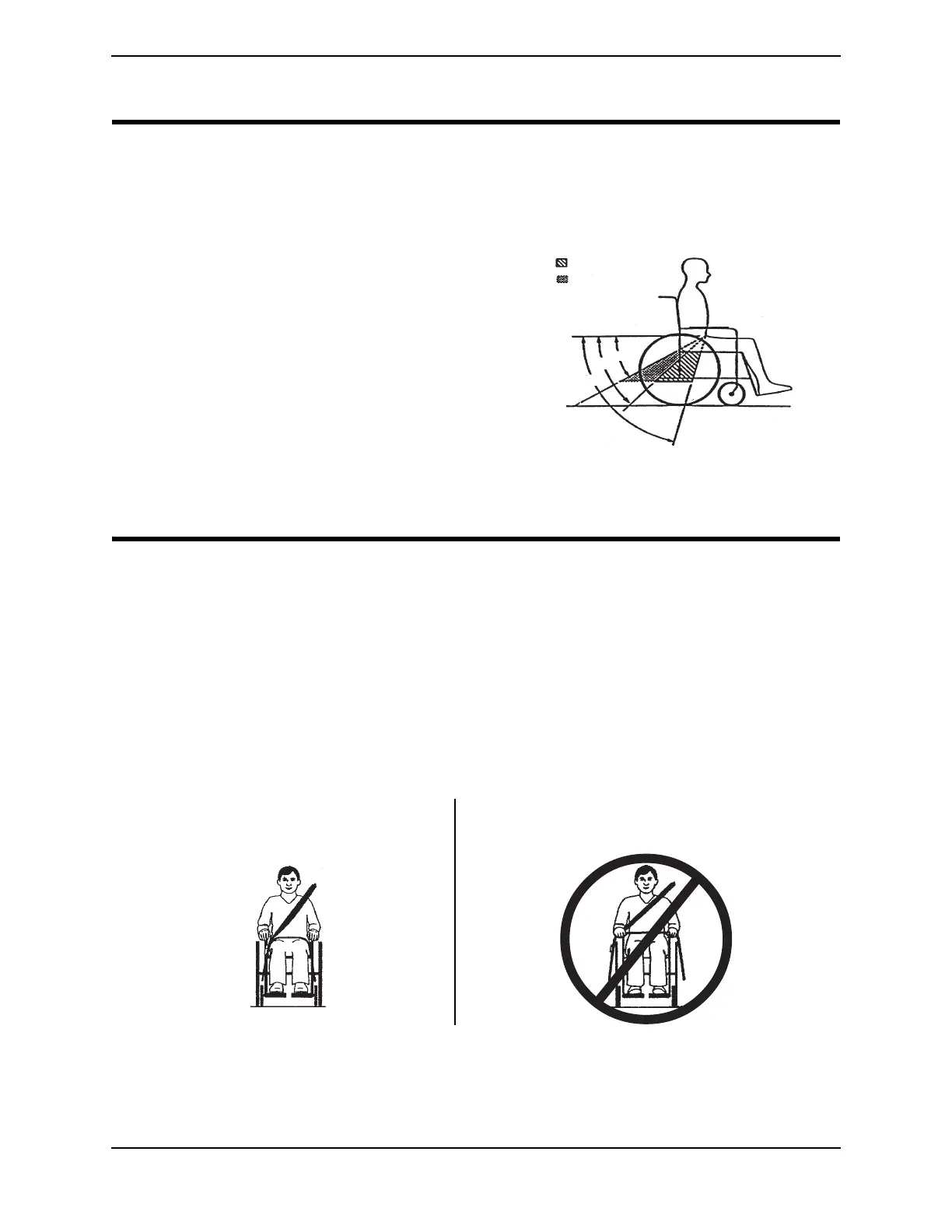

FIGURE 11.4 Positioning Belts
45°
30°
Preferred Zone
Optional Zone
75°
Side View
DO position belts INSIDE of
armrests, wheels, etc.
DO NOT position belts OUTSIDE
of armrests, wheels, etc.
