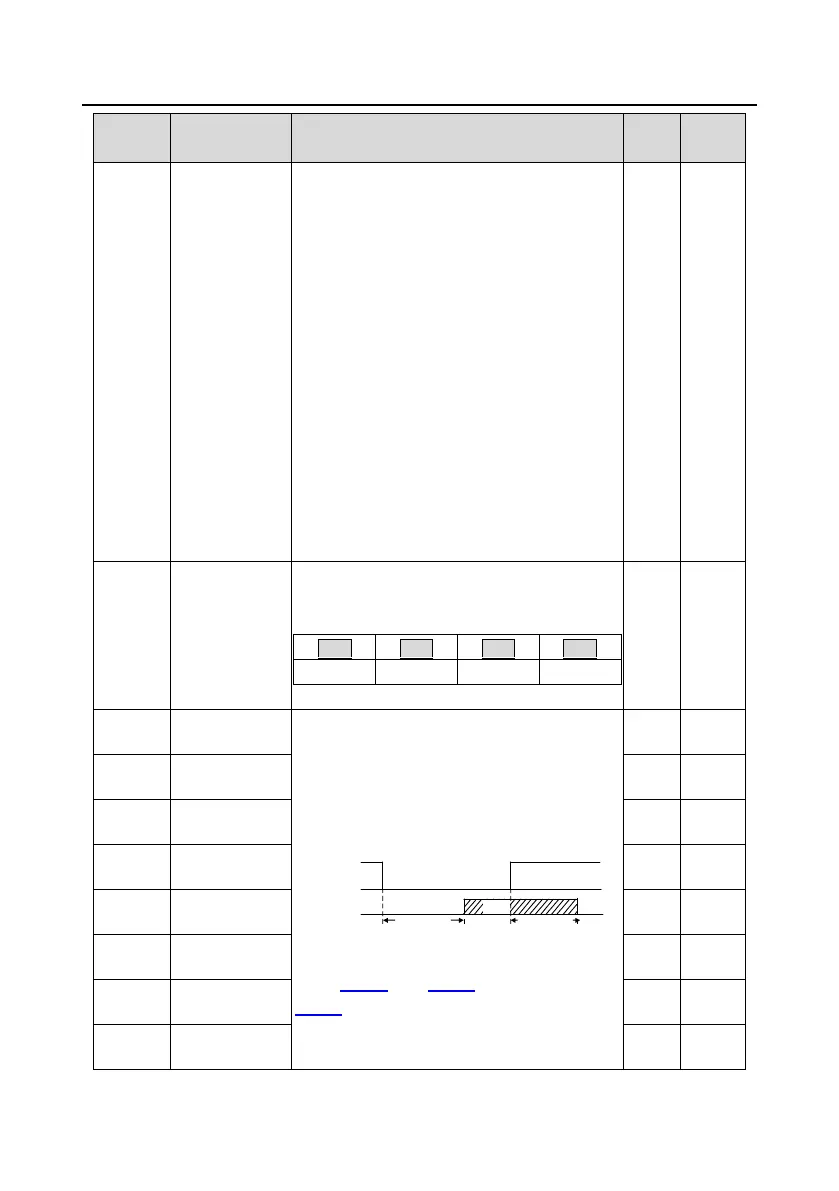

INVT IPE300 Series User Manual

IPE300 series engineering VFD Function parameter list
-148-
Function
code
Name
Description
Default
Modify
42: C_Y2 from PLC (Set P27.00 to 1.)
43: C_HDO from PLC (Set P27.00 to 1.)
44: C_RO1 from PLC (Set P27.00 to 1.)
45: C_RO2 from PLC (Set P27.00 to 1.)
46: C_RO3 from PLC (Set P27.00 to 1.)
47: C_RO4 from PLC (Set P27.00 to 1.)
48: Auxiliary motor 1 startup
49: Auxiliary motor 2 startup
50: Remote brake (DP communication)
51: PT100 pre-alarm
52: PT1000 pre-alarm
51: PT100 pre-alarm
52: PT1000 pre-alarm
53: OFF1 main contactor actuation
54: S terminal input 1 is valid
55: S terminal input 2 is valid
56: Brake release command action
57–63: Reserved
P06.05
Output terminal
polarity selection
Used to set the polarity of output terminals.
When a bit is 0, the input terminal is positive;
when a bit is 1, the input terminal is negative.
BIT3
BIT2
BIT1
BIT0
RO2
RO1
HDO
Y
Setting range: 0x0 –0xF
00
○
P06.06
Y1 switch-on
delay
Used to specify the delay time corresponding to
the electrical level changes when the
programmable output terminals switch on or
switch off.
Y electric level
Y valid
Invalid
Switch on
delay
invalid
Valid
Switch off
delay
Setting range: 0.000–50.000s
Note: P06.08 and P06.09 are valid only when
P06.00=1.
0.000s
○
P06.07
Y1 switch-off
delay
0.000s
○
P06.08
HDO switch-on
delay
0.000s
○
P06.09
HDO switch-off
delay
0.000s
○
P06.10
RO1 switch-on
delay
0.000s
○
P06.11
RO1 switch-off
delay
0.000s
○
P06.12
RO2 switch-on
delay
0.000s
○
P06.13
RO2 switch-off
delay
0.000s
○
