INVT IPE300 Series User Manual

IPE300 series engineering VFD Extension card
-299-
Name
Model
Specifications
Resolver PG
card
EC-PG504-00
 Applicable to resolver encoders;
 Supporting frequency-divided output of resolver-simulated
A, B, Z
 Supporting pulse string reference input
Multi-function
incremental PG
card
EC-PG505-12
 Applicable to OC encoders of 5 V or 12V;
 Applicable to push-pull encoders of 5 V or 12V;
 Applicable to differential encoders of 5V;
 Supporting the orthogonal input of A, B, and Z;
 Supporting the frequency-divided output of A, B, and Z;
 Supporting pulse string setting.
24V incremental
PG card
EC-PG507-24
 Applicable to 24V OC encoders;
 Applicable to 24V push-pull encoders;
 Applicable to 24V differential encoders.
Simplified
incremental PG
card
EC-PG507-12
 Applicable to OC encoders of 5 V or 12V;
 Applicable to push-pull encoders of 5 V or 12V;
 Applicable to differential encoders of 5V.

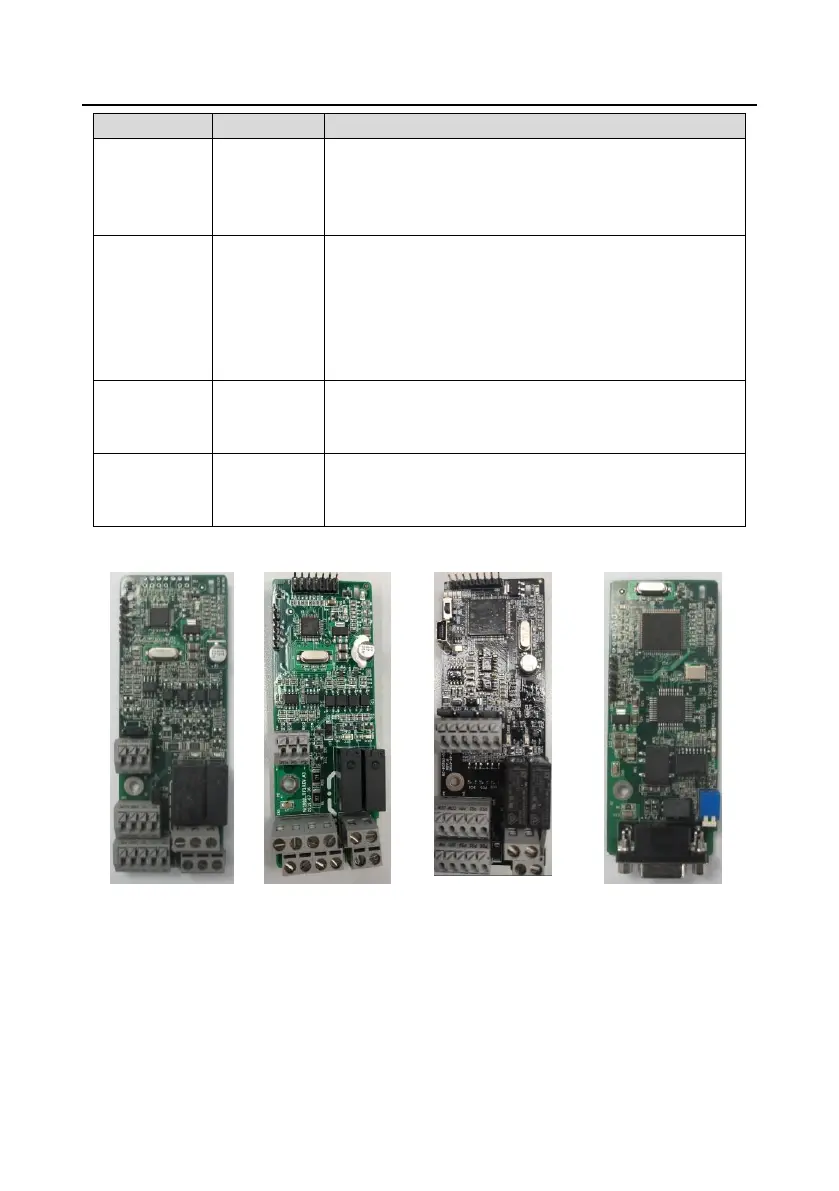

I/O extension card 1
EC-IO501-00
I/O extension card 2
EC-IO502-00
Programmable card
EC-PC502-00
PROFIBUS-DP
communication card
EC-TX503
