IPE300 series engineering VFD Extension card
-303-
Cut the correspo nding
outle t bo x.
STEP7
STEP5
STEP6
STEP4
STEP3
STEP2
STEP1
Wire binding p osition
Diagram of installation wirin g
Diagram of outlet box cut
Extension card
Ta k e o ut the ke y p ad
an d re m ov e the up p er c ov er.
Unscrew the screw and
remode the lower cover.

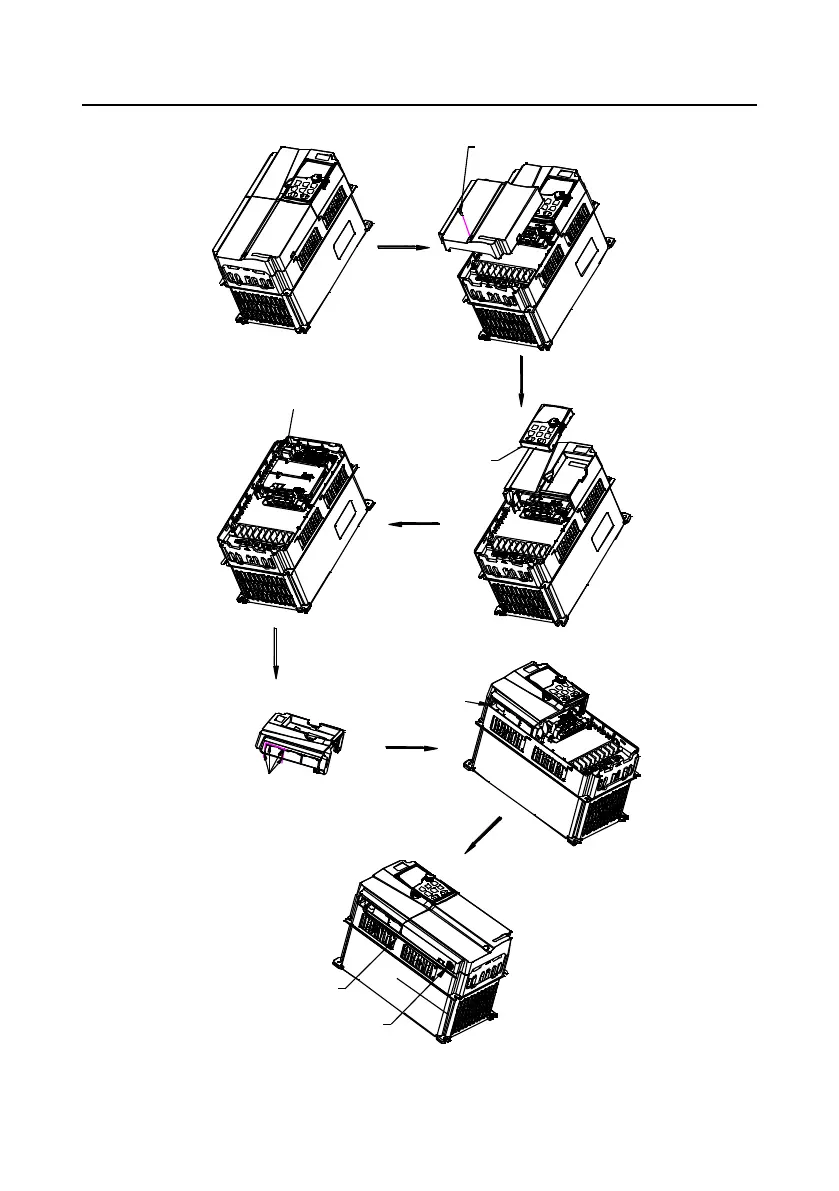

Figure A-3 Extension card installation procedure
