administrators is VIP. The SSIDs are enabled and configured successfully on the AP.

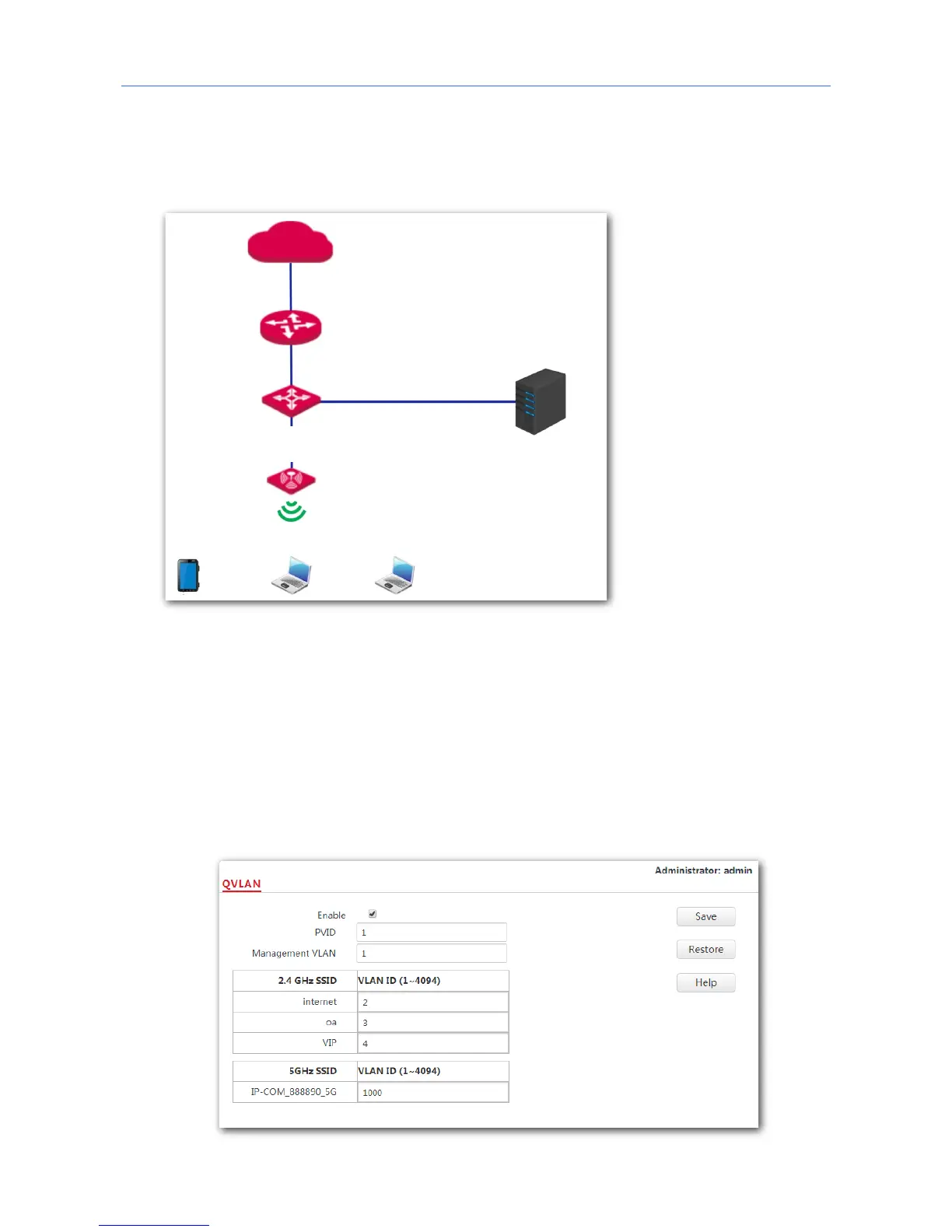

Network topology
Procedures:
1. Configure the AP.
(1) Log in to the web UI of the AP and choose Wireless > QVLAN Settings.
(2) Select the Enable check box.
(3) Change the VLAN ID of SSID internet to 2, VLAN ID of SSID oa to 3 and VLAN ID of
SSID VIP to 4.
(4) Click Save.
Internet
Router
PoE
switch
AP
Guest SSID:
internet (VLAN2)
Internal
server
LAN
Staff SSID:
oa (VLAN3)
Administrator SSID:
VIP (VLAN4)
