There is a champ connector in back side of UCM-MGC3 / CM-1URMC, including UCM-MDTMX2.
Wiring connector

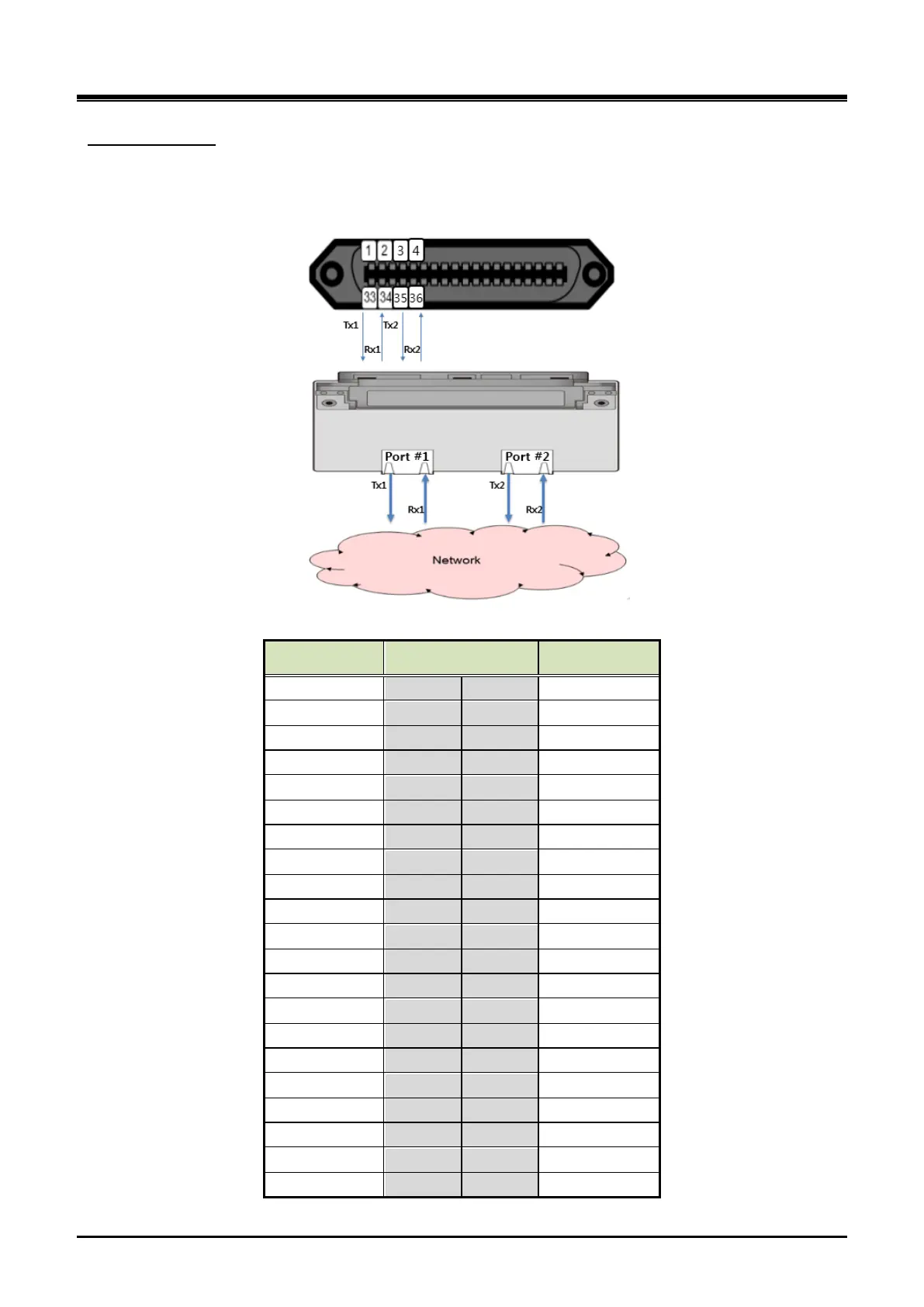

This connector is connected as shown in the figure 3-35.
Champ connector wiring (UCM-MDTMX2)
Signal Name Pin No. Signal Name
TX1+ 1 33 TX1-
RX1+
2
34
RX1-
TX2+ 3 35 TX2-
RX2+ 4 36 RX2-
- 5 37 -
- 6 38 -
- 7 39 -
-
8
40
-
- 9 41 -
- 10 42 -
-
11
43
-
- 12 44 -
- 13 45 -
- 14 46 -
- 15 47 -
- 16 48 -
-
17
49
-
- 18 50 -
- 19 51 -
-
20
52
-
- 21 53 -
