IPETRONIK PlugIn X V02.14.00

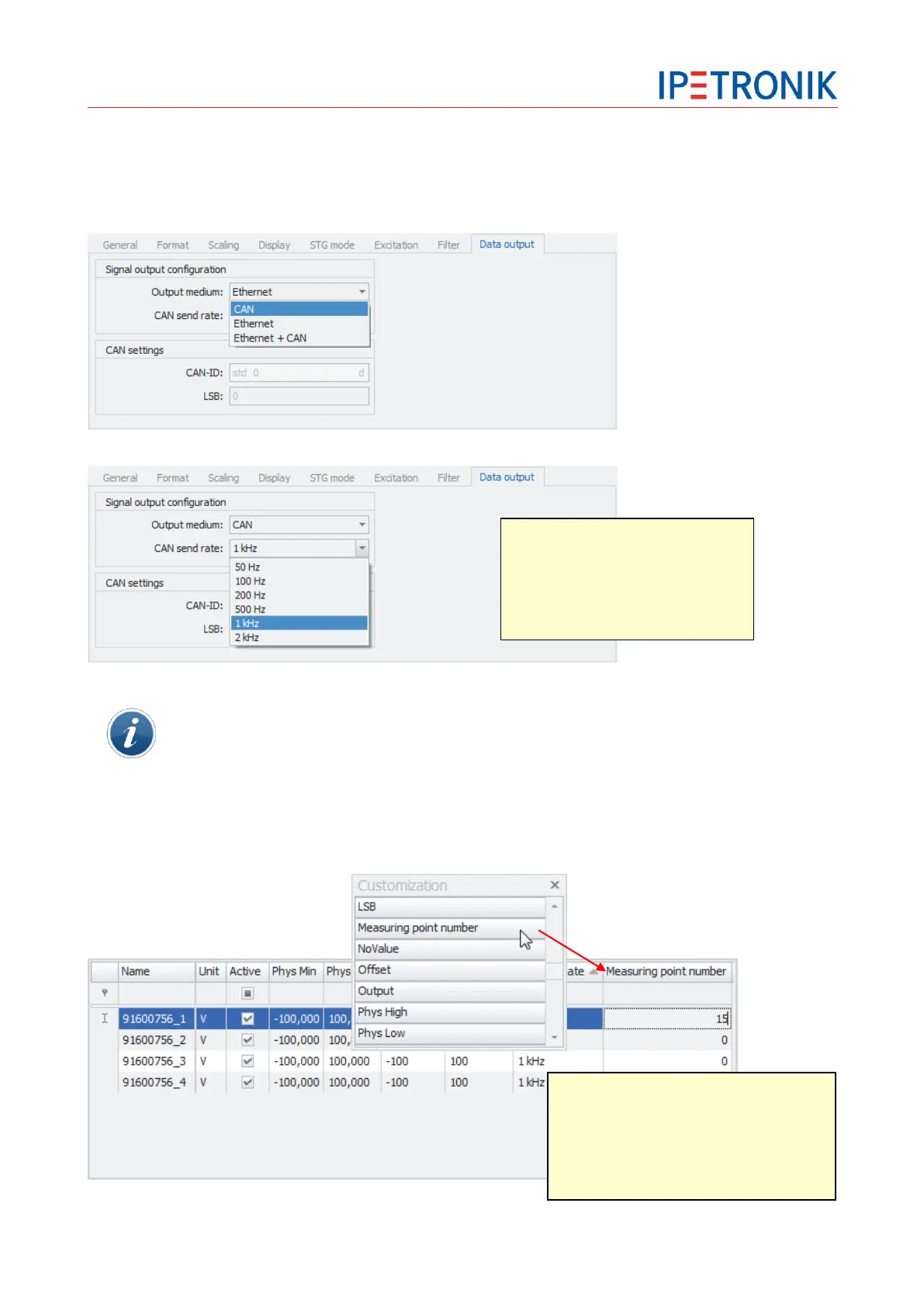

Data output (Ethernet, CAN)
Use the Data output tab of the respective channel to output measurement signals to CAN and/or Ethernet.
Highlight an input channel and enter the Data output tab to select the signal output medium.
The system assigns CAN IDs automatically based on the following:
- channels/modules with high data rate get a low CAN ID
- within the same data rate, a descending sequence based on the serial number is used
- CAN IDs of unused channels will be reserved
(e. g. with an 8 channel device, but only 4 channels activated:
channel 1 … 4 activated > ID 11 start bit 0, 8, 16, 32
channel 5 … 8 inactive > ID 12 start bit 0, 8, 16, 32).
CAN send rates
Output medium CAN:
up to 2 kHz
Output medium Ethernet + CAN:
50 Hz, 100 Hz
After selection by the column chooser,
an individual number can be assigned
to each channel. This can be used for
sorting abilities or as character
imported from a measuring point
description.
