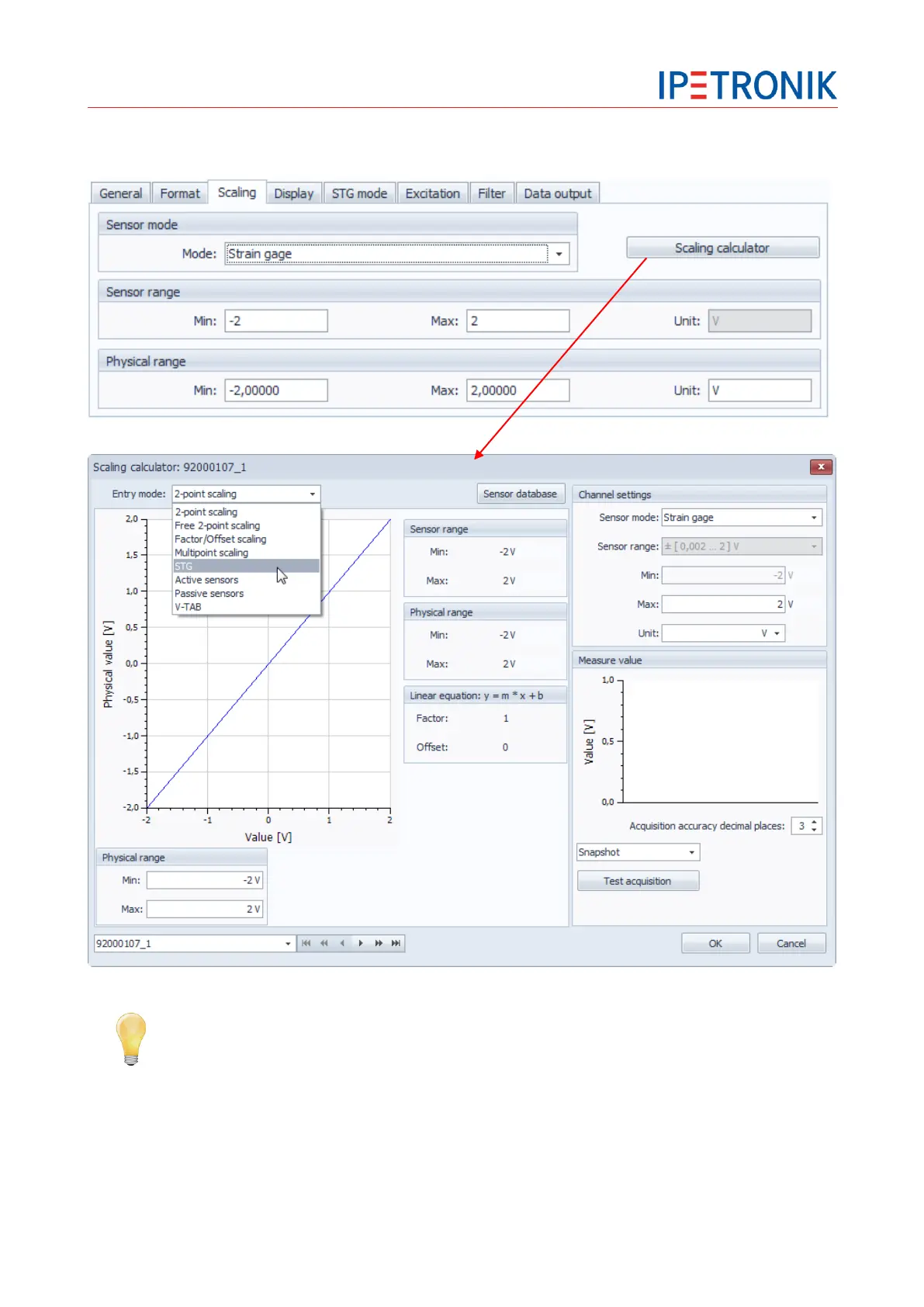

Using the scaling calculator, you can perform 1-point (factor/offset), 2-point and multi point
scalings.
Proceed as follows for a 2-point scaling with real signals (e.g. for a pressure measurement):
> set the lower force value Measured signal corresponds to x N
(calculate value pair 1)
> set higher force value Measured signal corresponds to y N
(calculate value pair 2)
Depending on the setting, the test acquisition is detected as a unique value (snapshot) or as an
average value (average over values, average over time).
