IPEmotion
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
71/ 87

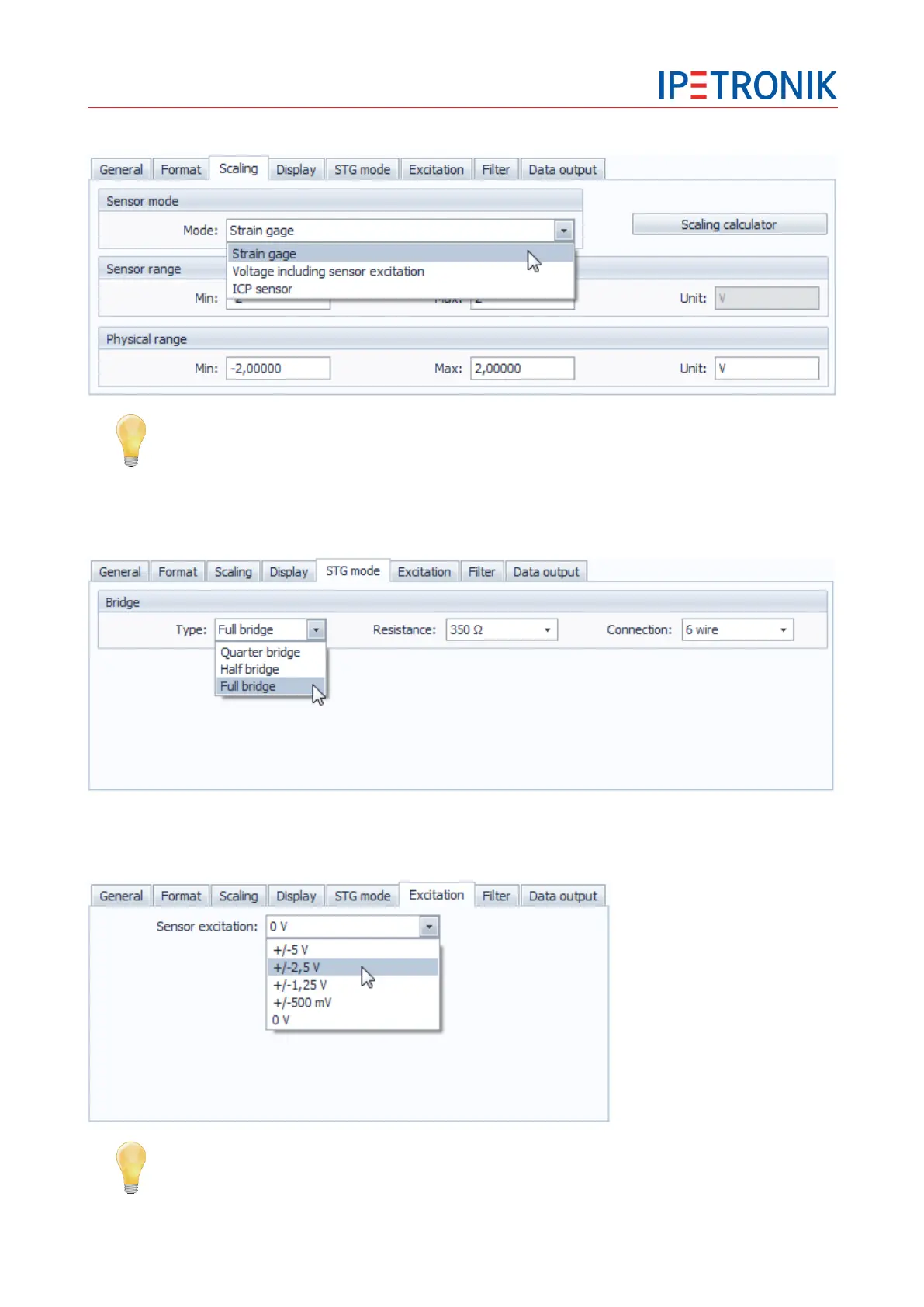

Scaling: Mode selection (Sx-STG only)
For Sx-STG the tab STG mode is displayed only when the Sensor mode Strain gage is
selected!
For Mx-STG2 the sensor mode is set to Strain gage (fixed setting).
STG mode
Excitation
As the supply voltagel +/- 5 V may cause a damage of the bridge circuit when selecting the
setting Resistance 120 Ω in the STG mode tab, this voltage is available only for 350 Ω and
1 kΩ bridge resistors!
