ISCO 4210 - Universal Mounting Ring Components

4210 Flow Meter
Section 4 Optional Equipment
4-28

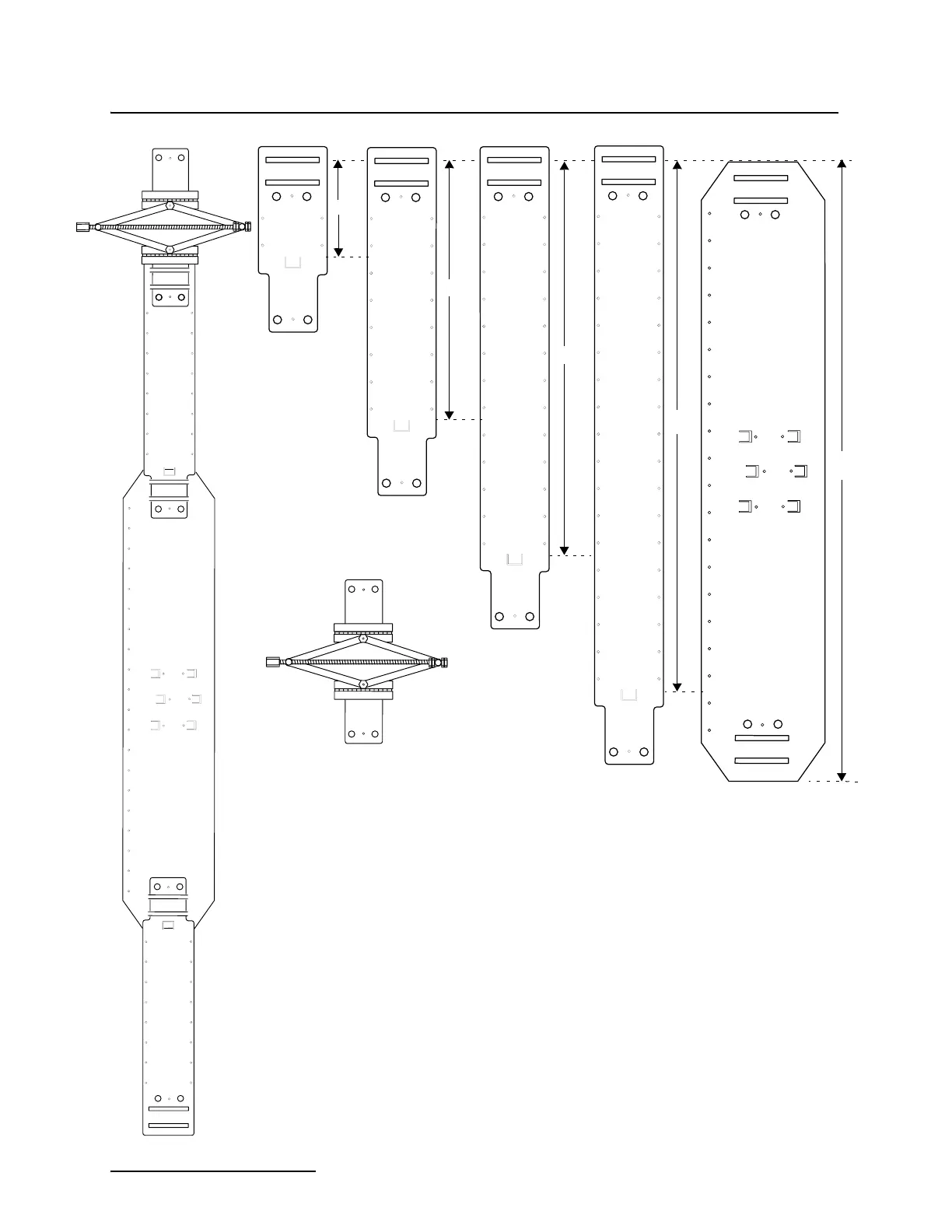

Figure 4-11 Universal Mounting Ring Components
The Following Table Indicates Recommended Part Configuration
For Various Pipe Diameters.
DIAMETER (EXACT) PART(S)
18" Base Alone
21", 24" Base + (2) 7.5" Extensions
30" Base + (2) 20" Extensions
36" Base + (2) 20" Extensions + (2) 7.5" Extensions
42" Base + (2) 30" Extensions + (2) 7.5" Extensions
48" Base + (2) 40" Extensions + (2) 7.5" Extensions
60" Base + (2) 30" Extensions + (2) 7.5" Extensions
72" Base + (4) 40" Extensions + (2) 7.5" Extensions
72" Base + (4) 40" Extensions + (2) 7.5" Extensions
Scissors Mechanism
60-3004-170
Extension 1
68-3000-038
(pair)
Extension 2
68-3000-039
(pair)
Extension 3
68-3000-040
(pair)
Extension 4
68-3000-041
(pair)
Standard Base
Section
60-3004-169
7.5"
20"
30"
40"
47.1"
Assembled Scissors Ring (Flat View)
