Chapter 3 Adjustment Mode
4） If the dimension is not 10 mm, stop unit’s operation and adjust the operation range of the infeed unit’s
claw.

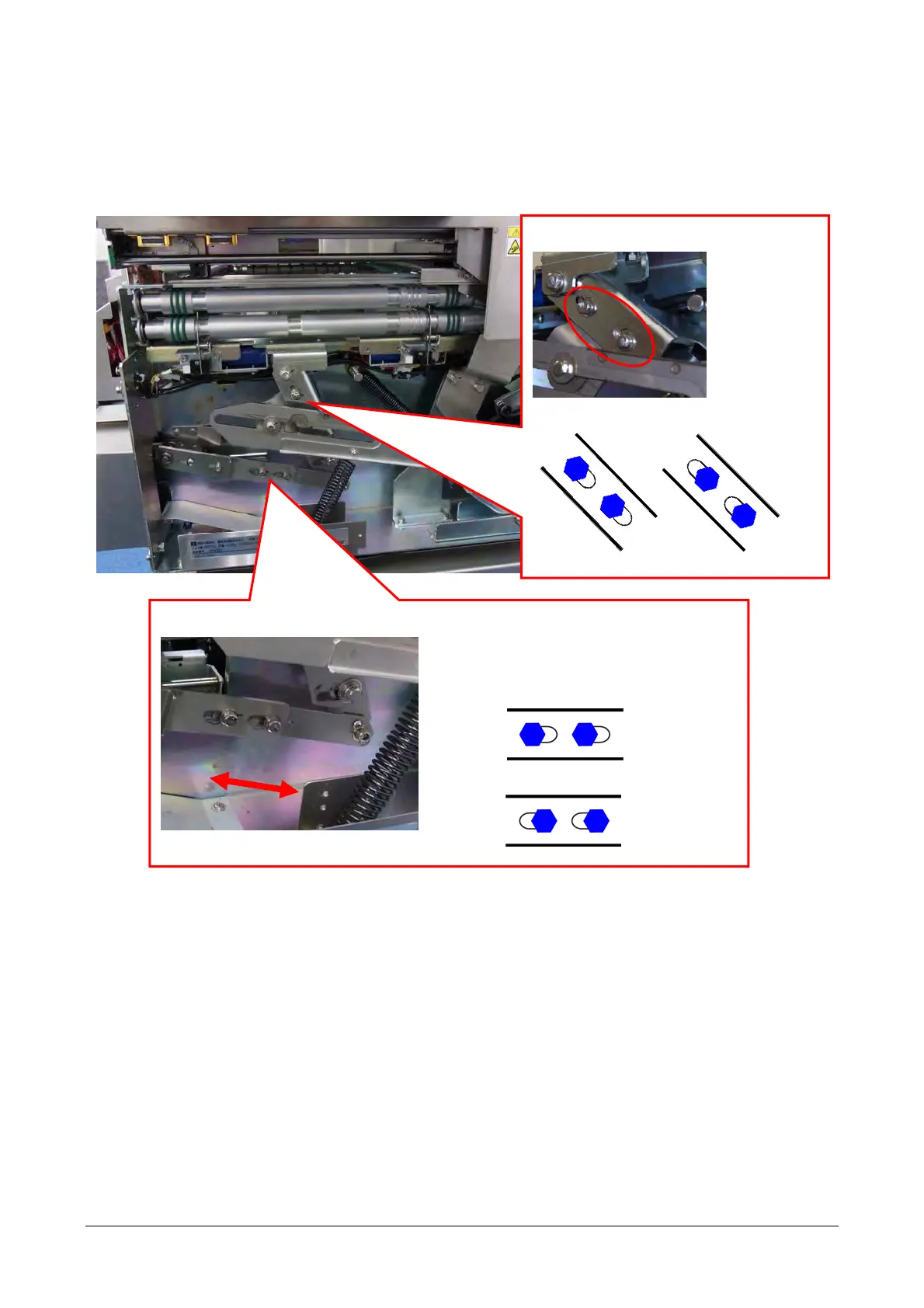

Carry out two types of adjustment for the claw operation range as described below..
•Adjustment of the position where the claw stops (no change in stroke width)
•Adjustment of claw’s stroke width
5） Conduct adjustment until the gap between the infeed bar and the weighing plate is 10 mm.
Moving toward
inside
Moving toward
outside
•Adjustment of the position where the claw stops (no change in stroke width)
Adjust the position of the screws (2).
Large stroke width Small stroke width
•Adjustment of claw’s stroke width
Adjust position of screws (2).
3-48
