Chapter 1 Overview
1.7. Instruction for Carrying and Setting
・ The capacity for the stand of WM-NANO should be more than 200 kg(440 lb). Please make sure that
customers’ stands or tables have same or more durability than the example written in this document
before the setup.
・ Please remove the controller (Uni-7 RP) when you carry the machine for the safety purpose.
・ The weight of WM-NANO itself is approximately 100 kg (220 lb). *excluding Uni-7 RP
Please be careful not to get injured by dropping the machine when you carry the machine.
* While the stand in the pictures below is the older type, instructions for carry and installation are not
changed.
1.7.1 Handling of Controller (Uni-7 RP)
Please always remove the controller (Uni-7 RP) when you move the machine for the safety purpose.
1.7.2 Carrying the Machine

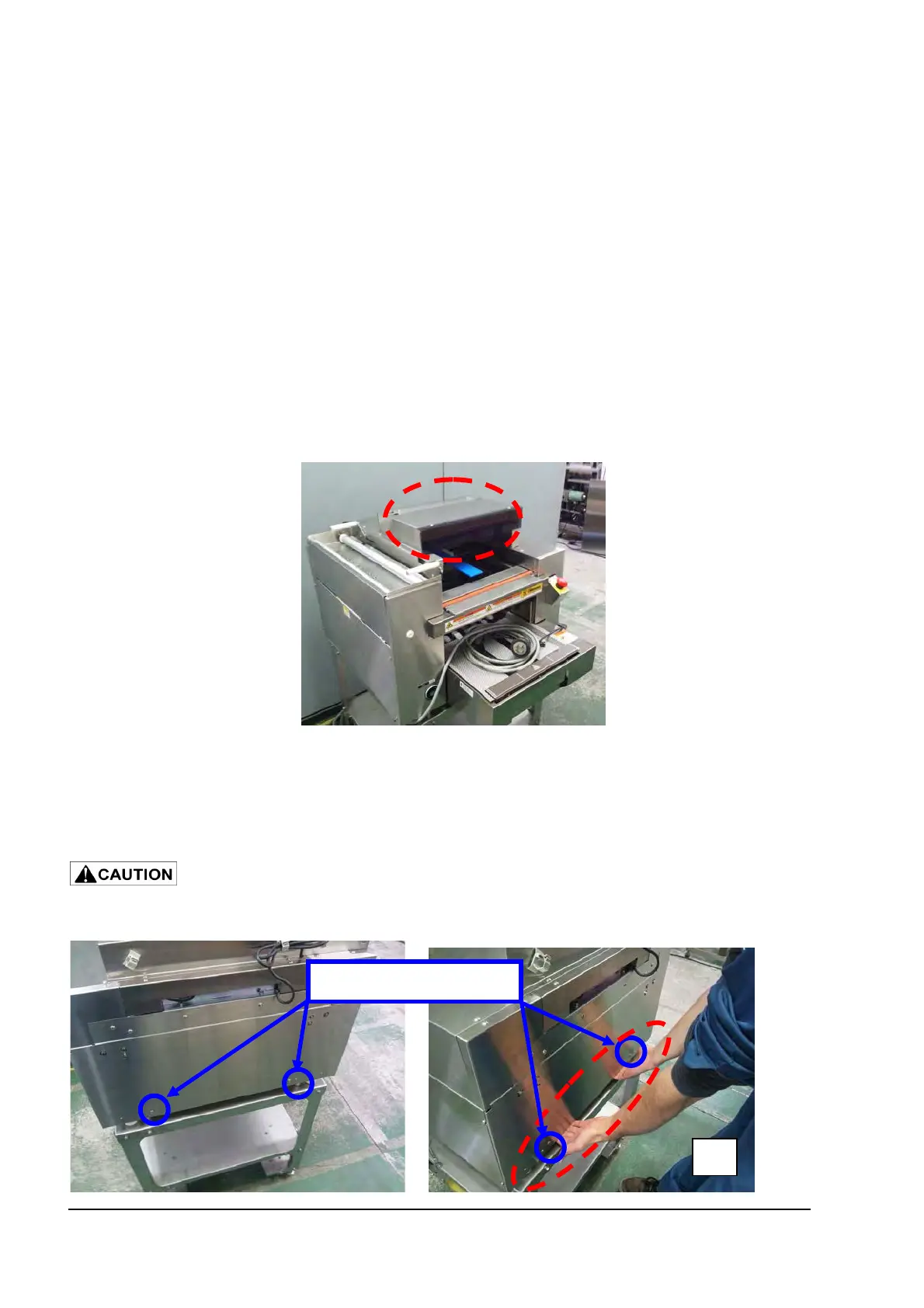

When carrying the machine, please hold the part between the truss head screws (below picture) at the
back (B), and the bottoms of left & right side (A&C). (red circled part at below picture).
Excluding Uni-7 RP, the weight of WM-NANO itself is approximately 100 kg (220 lb).
Please be careful not to get injured by dropping the machine when you carry the machine.
DO NOT hold the weighing part. It can damage the scale or cause mis-weighings.
1-9
Back
Back
truss head screws
B
