Chapter 3 Adjustment Mode
3.2.3 Adjusting the Film Arm
Film arm adjustment includes the following items.
•Operating range adjustment for the film arm in the lateral direction (inside - outside) (adjusted with
screws)
•Roller position adjustment for the film arm (adjusted with nuts)
•Film holder position adjustment (adjusted with screws)

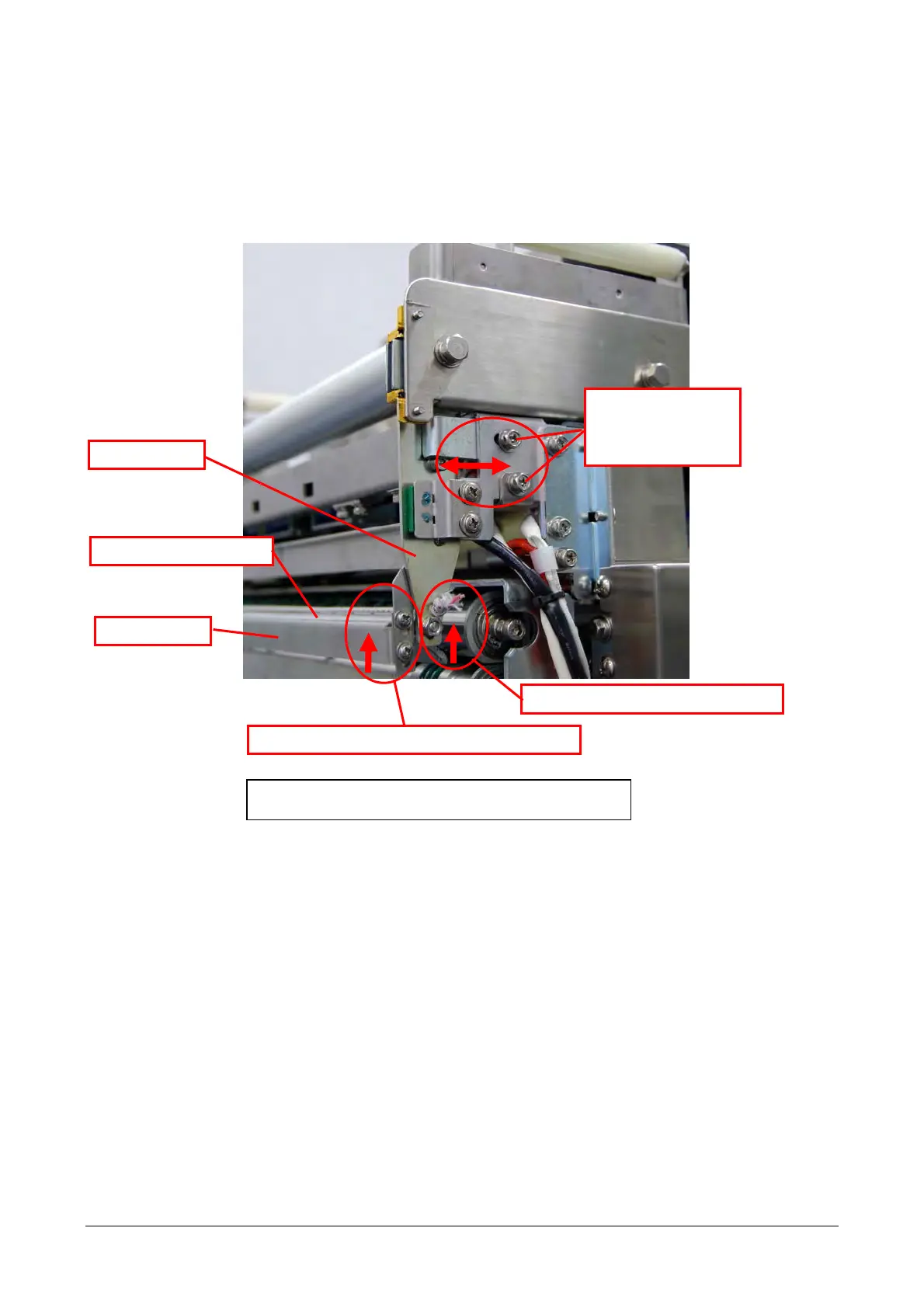

Operating range
adjustment in the
lateral direction with
screws
Film arm
Roller position adjustment with nuts
Film holder
Film holder position adjustment with screws
Film arm roller
*Adjust the back side in a similar way as for the front.
Follow the procedure [1] through [7] described below to adjust the film arm.
