Chapter 3 Adjustment Mode
3.2.11

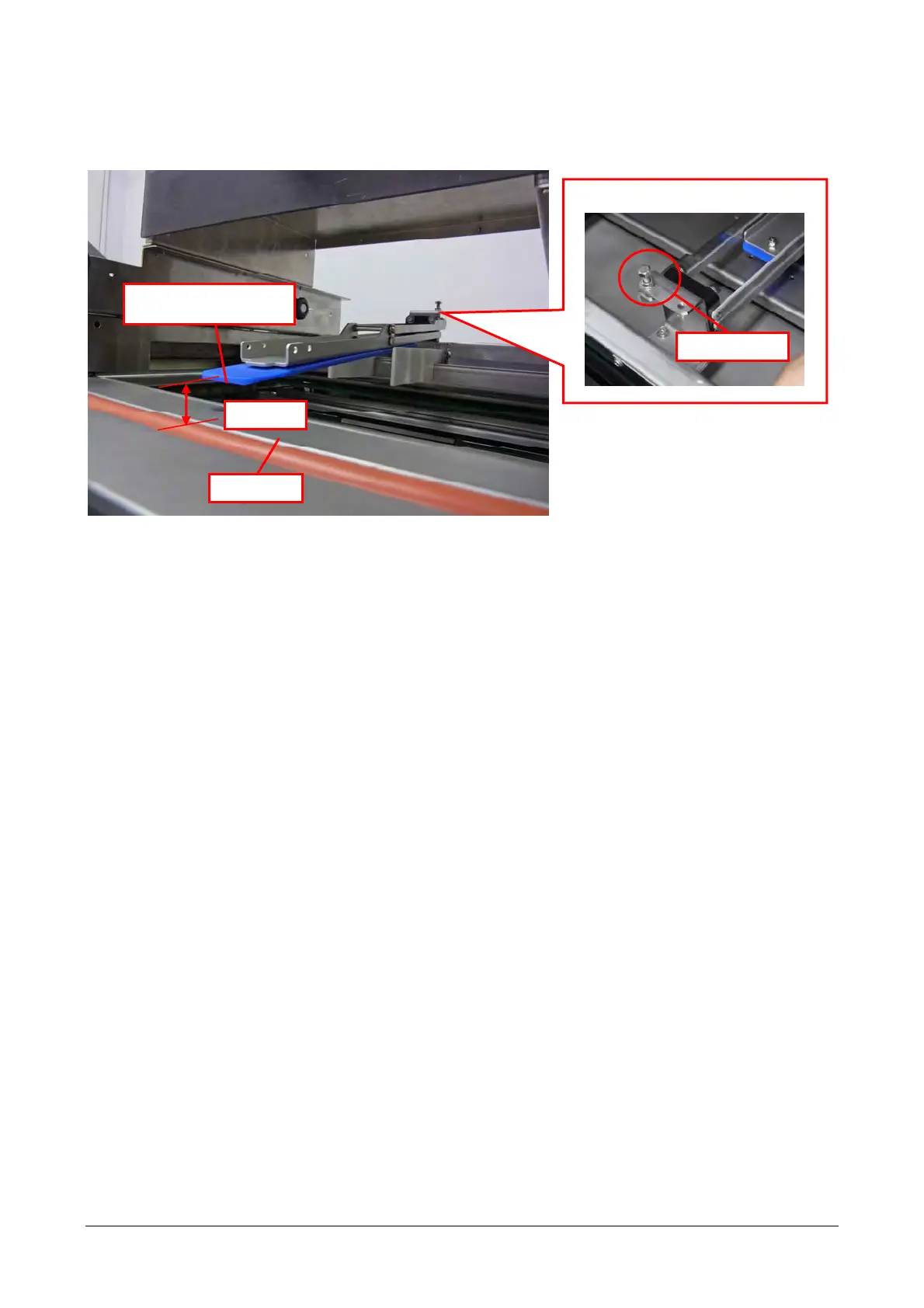

Adjusting Tray Holder Height
Adjust the height of the tray holder as follows: Adju
st the space between the front
end of the tray holder and
the plate to 20±1 mm with a hexagonal bolt.
Hexagonal bolt
20±1 mm
Plate
Tray holder front end
(top end)
3-54
106
108
Table of Contents
Default Chapter
4
Table of Contents
4
Wm-Nano
7
Chapter 1 Overview
7
Specifications
7
General Specifications
7
Wrapper Specifications
7
Operation Unit Specifications
8
Weighing Unit Specifications
8
Options
8
Reliability/Service Life
9
Part Names
10
Appearance
10
Outline Dimensional Drawings
12
Dimensions
12
Installation Space
13
Power Supply
13
Cautions for Unpacking
14
Instruction for Carrying and Setting
15
Handling of Controller (Uni-7 RP)
15
Carrying the Machine
15
Setting on the Stand or the Table
17
Setting on the Ishida Stand
18
Cabling between UNI-7 and Wrapper
19
Chapter 2 Functions for each Mode
22
Normal Mode
23
Return Process at Power on
23
2.1.2 How to Use Preset Keys
24
PROGRAM Mode
30
WRAP Tab Added to PLU
30
Preset Keys Added
31
TRAY Added to Menu
32
SETUP Mode
36
Switching to Service Mode
36
FUNCTION KEY Items Added to KEY LOCK
36
Items Added to PLU OVERWRITE
38
WRAP Tab Added to PLU INITIAL DATA
39
Items Added to PLU UPDATE
40
COUNTRY (MISC) Screen Added
42
Tray Master Added to FILE SAVE / LOAD
43
ADJUST Mode
46
Switching to Service Mode
46
MEMORY CLEAR Items Added
46
SUB Tab Added to down LOAD
47
WRAPPER Added to Menu
49
UNIT TEST Added to Menu
51
WM-NANO Added to MODEL
52
Chapter 3 Hardware (Mechanical)
54
Removing Units
54
Removing the Infeed Unit
54
Removing the Wrapping Unit
59
Dividing the Film Conveying Unit into Two
69
Points for Unit Assembly
81
Adjustment
82
Adjusting Clamp Position
82
Adjusting Lift Height
86
Adjusting the Film Arm
89
Adjusting the Mini-Keeper
99
Adjusting the Operating Range of the Infeed Unit's Claw
100
Adjusting Cutter Solenoid Position
102
Adjusting Cutter Blade Position
103
Adjusting Left and Right Squeezing Plates Widening Amount
104
Adjusting Squeeze Amount of the Postsqueezing Plate
105
3.2.10 Adjusting Discharge Pusher Standby Position
106
3.2.11 Adjusting Tray Holder Height
107
3.2.12 Adjusting Claw Height of the Infeed Unit
108
Chapter 4 Hardware (Electrical)
109
Electrical Unit Board Configuration
109
Alignment of each Control Unit
109
Front Weighing Unit
110
Wrapping Control Unit (1/2)
111
Wrapping Control Unit (2/2)
111
Wrapping Control Unit (2/2)
112
Chapter 5 Troubleshooting
113
Operation as IP (Scale and Printer)
113
Error Messages
114
Error Display
114
Error List
115
Error Relates to System (Code 100S)
115
Error Relates to Memory (Code 200S)
117
Error Relates to Checking (Code 300S)
122
Printers (No. 700S to 900S, 1600S, and 1800S)
126
Error Relates to Wrapper (Code 500S)
137
Error Related to Printer (Code 700S)
137
Error Related to Scale (Code 1600S)
140
Appendix 1 Periodic Replacement Parts
142
Appendix 2 Wrapping by WM-NANO
143
2.1 Part Names
143
2.2 Wrapping Operation
144
