Appendix 2 Wrapping by WM-NANO
Appendix 2-2
2.2 Wrapping Operation
1） Basic steps of wrapping operation
After the scale has stabilized, start film conveying and tray feeding.
After completing film conveying, start lift elevation.
After completing film elevation, left and right squeezing plates squeeze in (Figure4).
After the squeezing plates reach the position to hold the tray, the lift starts
descending (Figure5).
After the lift started descending, the left and right squeezing plates and rear
squeezing plate squeeze in(Figure5).
The eject pusher ejects the tray(Figure6).

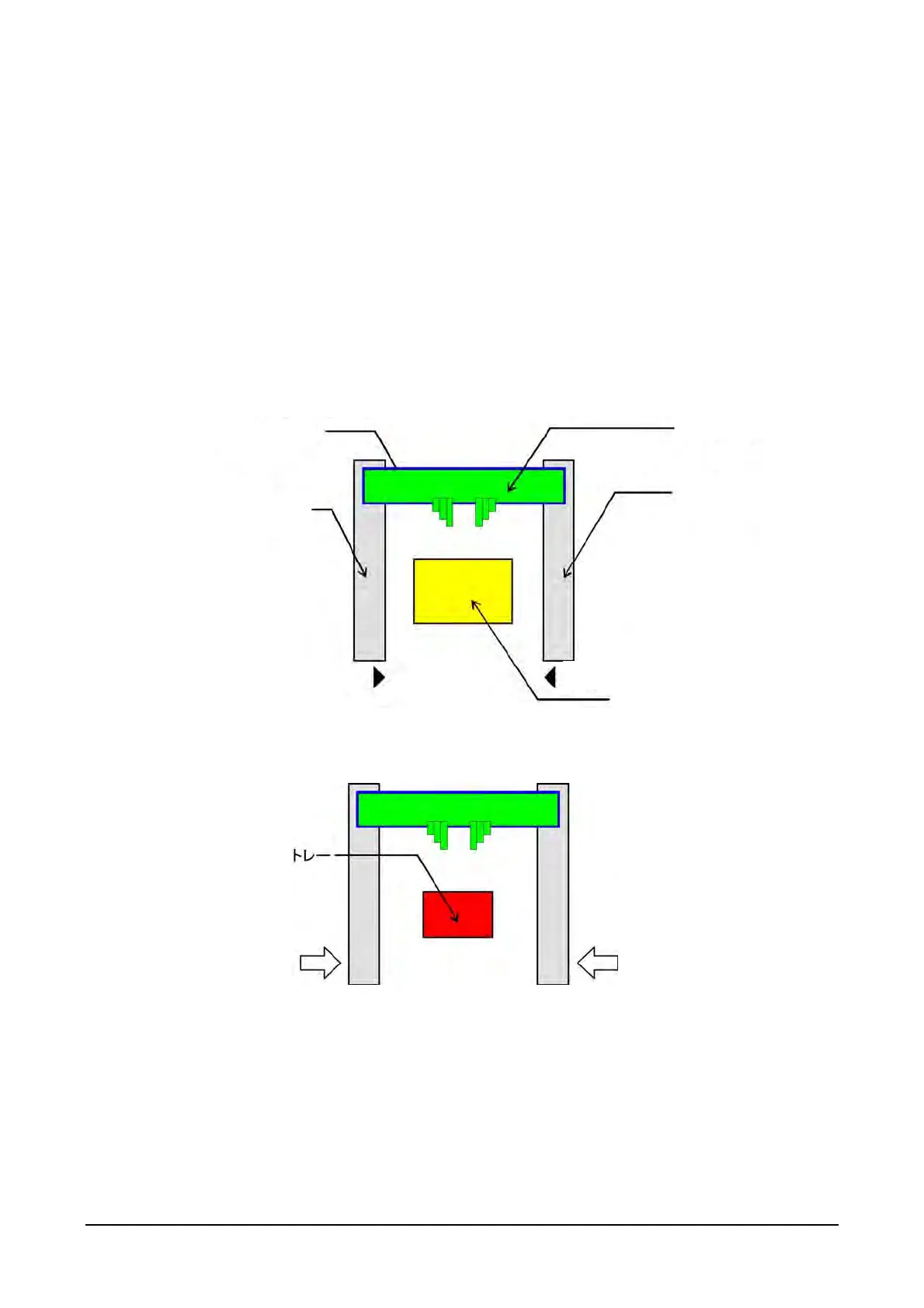

Figure 3 Original position
Figure 4 Lift elevation complete
Tray
Rear squeezing plate
Left and right
squeezing plates
Eject pusher
Eject sensor
Left and right
squeezing plates
Lift head
To Next Page
