Chapter 3 Adjustment Mode
3.2.4 Adjusting the Mini-keeper
Mini-keeper adjusts revolving conditions of the film conveyer by applying load to the roller.
Set the mini-keeper to the position tightened by one revolution from the most loosened condition.

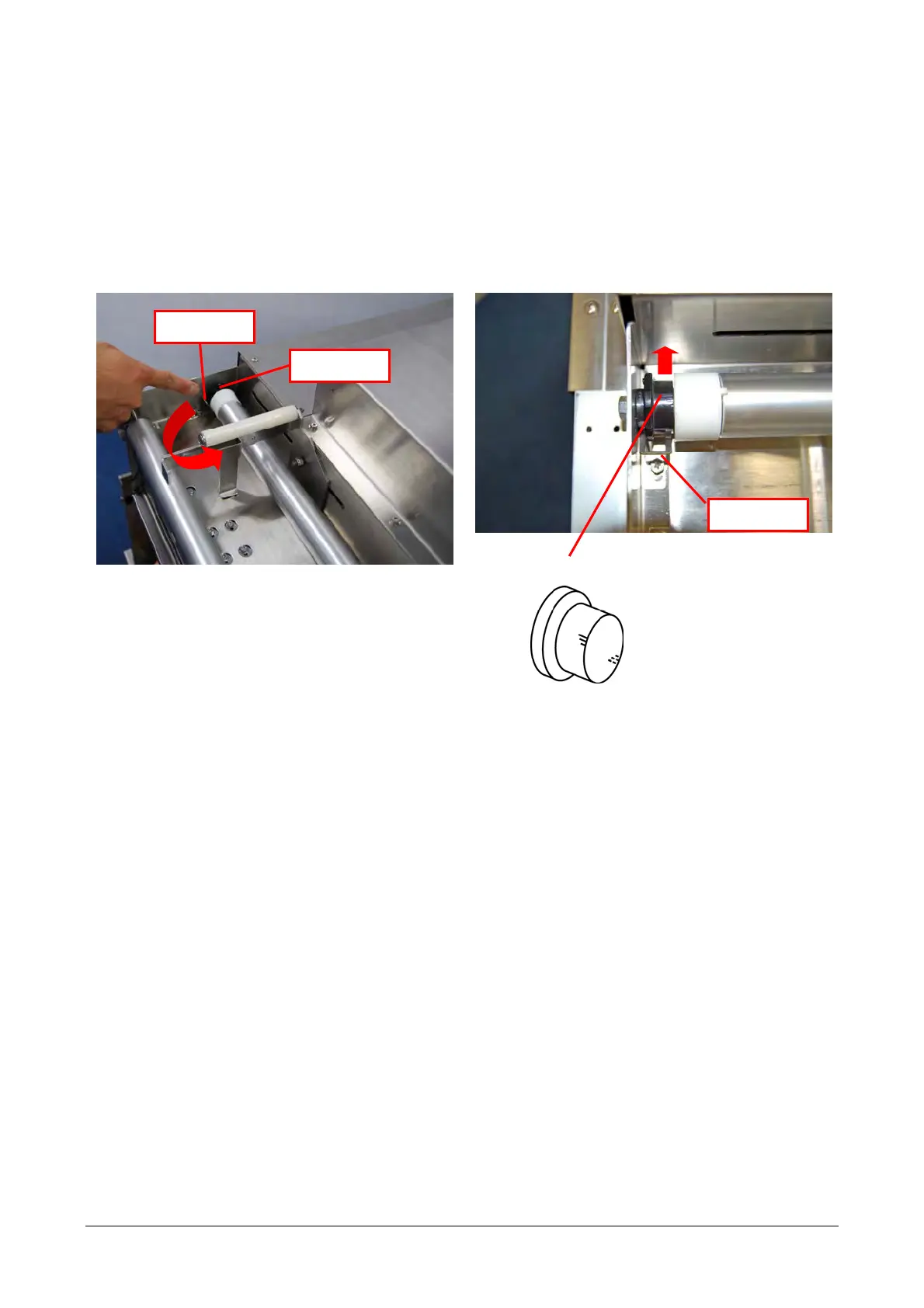

1） Pull the stopper and revolve the mini-keeper in
the direction of the arrow to bring the
mini-keeper in the most loosened condition.
2） Pull the stopper and revolve the mini-keeper in
the direction of the arrow by one revolution.
Two marks with three lines are provided at two
locations with an interval of 180°. Adjust the
amount of revolution based on this mark.
Mini-keeper
Stopper
Stopper
Mark with three lines
