ISHIDA WM-NANO Service Manual

Chapter 3 Adjustment Mode
3.2.12 Adjusting Claw Height of the Infeed Unit
Adjust the claw height of the infeed unit as follows:

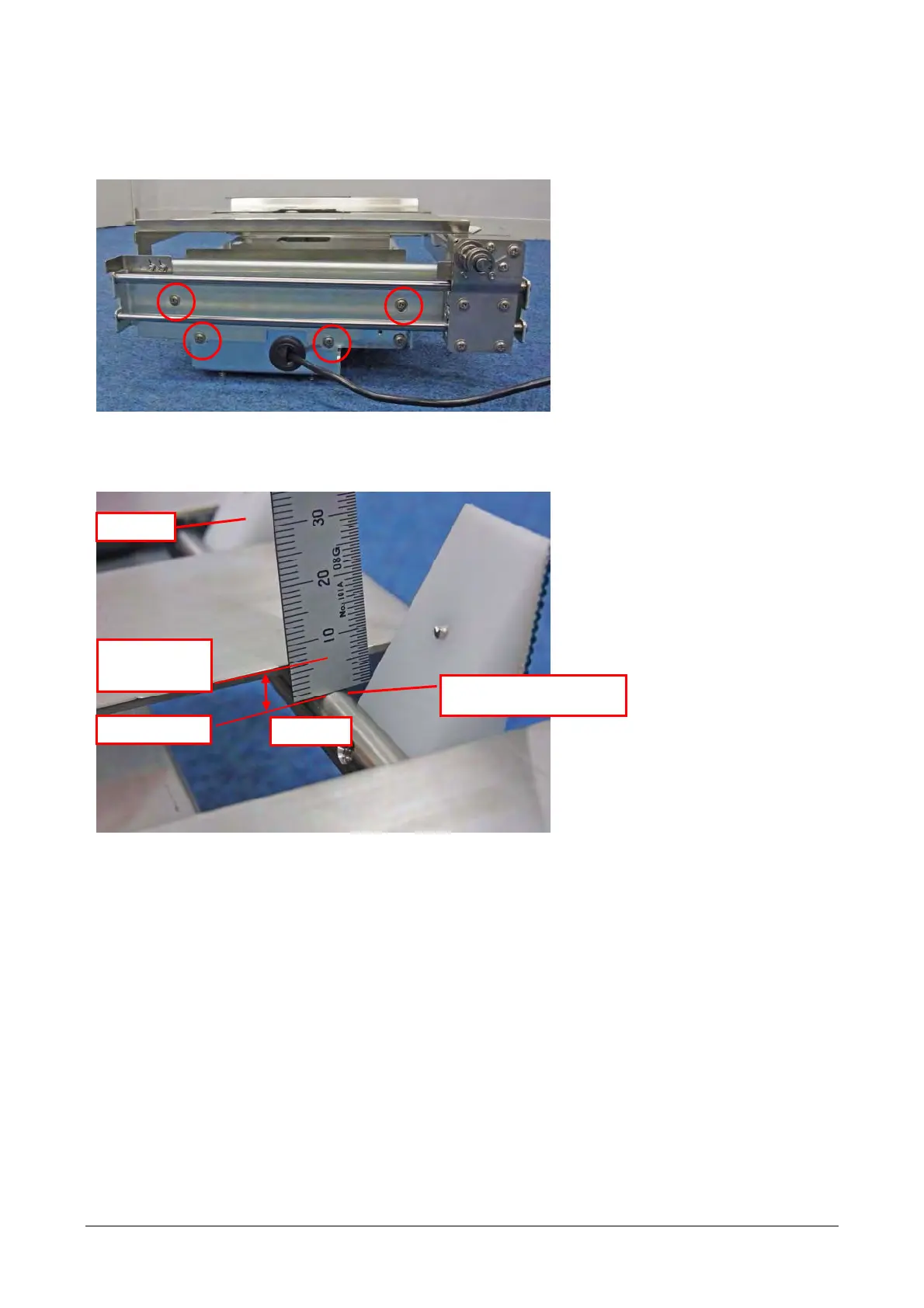

1） Loosen the screws (4) on the right lateral of the infeed unit.
2） Adjust the space between the top surface of the infeed unit and the infeed bar to 6 - 7 mm.
Measure the height at the back of the front claw on the right lateral of the infeed unit as shown in the
photograph below.
Back claw
6 - 7mm
Infeed bar
Top surface of
the infeed unit
Measure the space at the
back of the front claw.
3-55
