Chapter 3 Adjustment Mode
3.1.4 Points for Unit Assembly
Carry out assembly basically in the reverse direction of disassembly.
Only main points are described below.

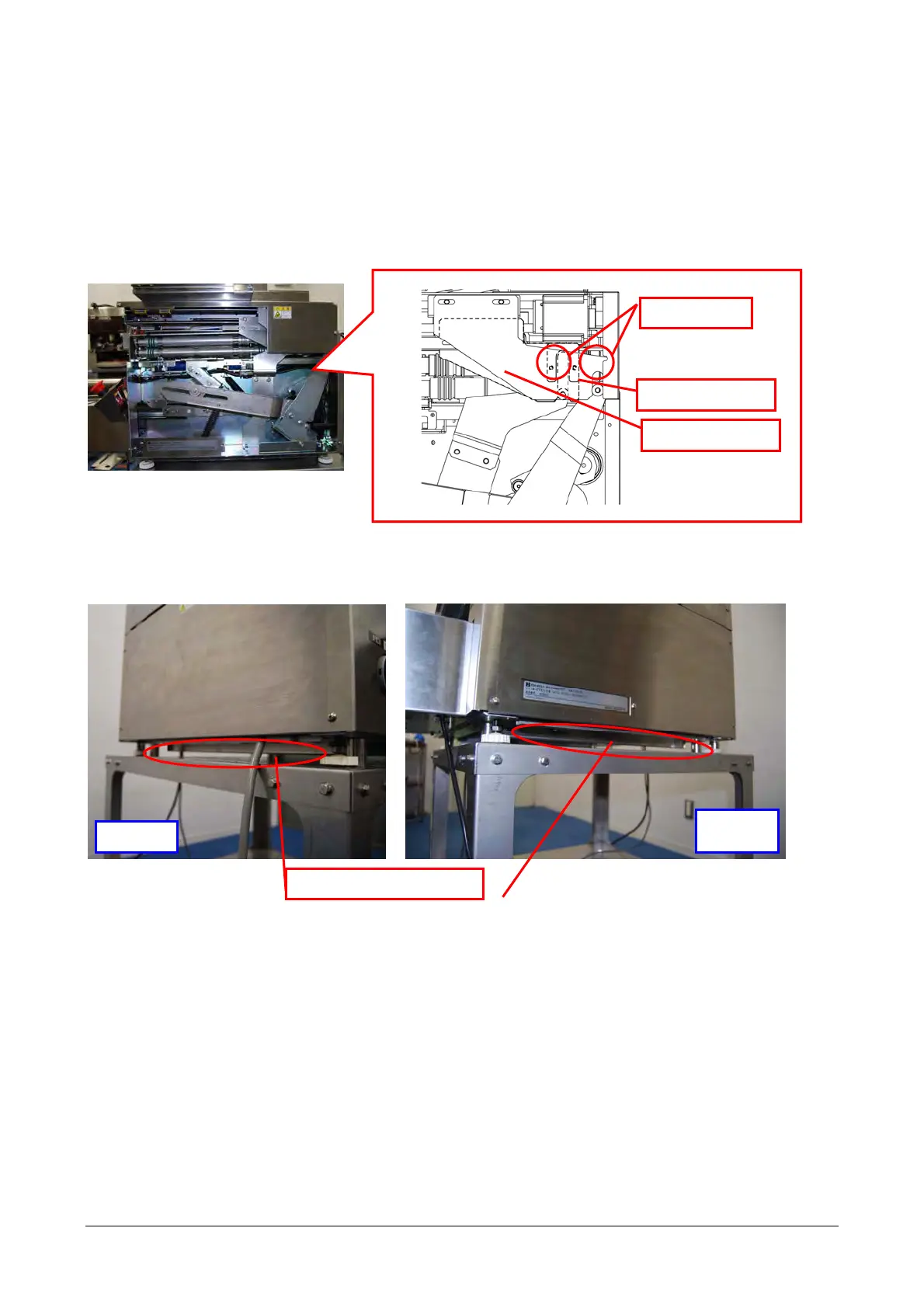

z In mounting the wrapping unit: Coupling arms
In placing the wrapping unit on the machine body, couple the postsqueezing arm and pusher arm up and
down.
zPush the cable into the rail.
Push the power cable into the rail.
zAfter mounting the operation unit: Storing cable
After mounting the operation unit, store the cable in the rails under the right and left laterals.
To be coupled
Pusher arm
Postsqueezing arm
Right
lateral
Store the cable in the rail.
Left lateral
3-28
